OV350 MPO Test Set – Multimode (850/1300nm)

All-in-One MPO Tier-1 Test Kit with ORL, VFL, and Video Inspection Compatibility

The OV350 MPO Test Set is a powerful, handheld, two-piece solution designed to certify and troubleshoot MPO-12 multimode fiber links with speed and precision. This all-in-one kit includes a multimode MPO light source (850/1300nm) and a multimode MPO power meter, allowing users to perform Tier-1 insertion loss testing, polarity verification (A/B/C & 40G), and ORL (Optical Return Loss) analysis across all 12 fibers simultaneously.

Engineered for data centers, enterprise networks, and high-density MPO infrastructures, the OV350 features an intuitive 4-inch color display, USB-based PC software integration, customizable pass/fail thresholds, and onboard memory for up to 1,000 test records.

Optional video scope integration (VIS300) and automatic 12-fiber VFL tracing further enhance usability. With its rugged construction, modular flexibility, and industry-aligned test automation, the OV350 is a go-to solution for field professionals.

Download Product Spec Sheet:

• OV350 MPO Test Set - Multimode spec sheet (PDF)

Key Features

• ✅ Dual-wavelength testing (850/1300nm multimode)

• ✅ Tests all 12 MPO fibers simultaneously with one connection

• ✅ Insertion Loss and ORL measurement across all fibers

• ✅ Real-time polarity detection for A, B, C, and 40G

• ✅ Multi-fiber Visual Fault Locator (VFL) with manual or sequential cycle

• ✅ Stores up to 1,000 test results, downloadable via USB

• ✅ Custom pass/fail thresholds with on-screen PASS/FAIL results

• ✅ Optional VIS300 video probe with MPO inspection tips

• ✅ Includes FIS Connect PC reporting software

• ✅ Rugged handheld design with long battery life (10+ hrs)

Kit Includes

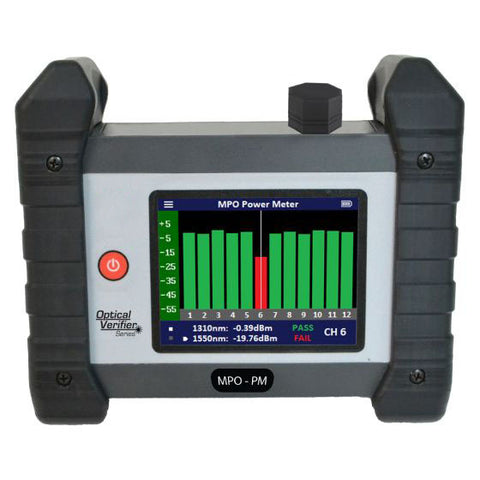

• Multimode MPO power meter

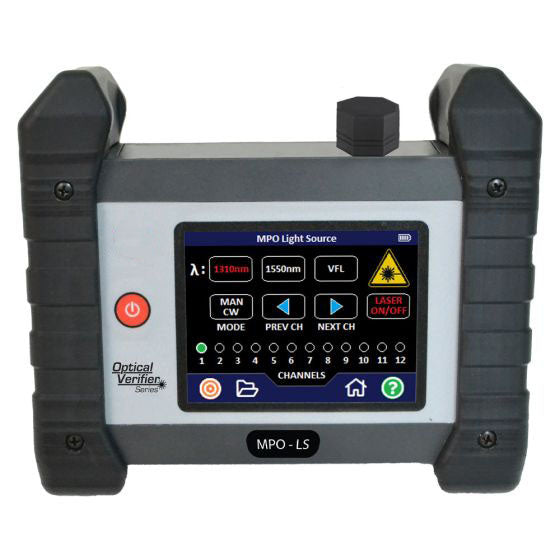

• Multimode light source (850/1300 nm)

• (2) Type A reference cords + mating sleeves

• USB cable + wall charger

• FIS Connect reporting software

• Carrying case, manual, and styluses

Technical Specifications

📡 Light Source

• Wavelengths: 850nm / 1300nm

• Output Power: -5 dBm typical

• Modulation: CW, 270Hz, 1kHz, 2kHz

• Output Connector: MPO male UPC

🔍 Power Meter

• Detector: 12 InGaAs photodiodes

• Measurement Range: +5 dBm to -50 dBm

• Resolution: 0.01 dB

• Accuracy: ±0.2 dB

• Wavelengths: 850 nm / 1300 nm (MM)

• Connector: MPO male UPC

• Polarity Detection: A, B, C, 40G

• Test Storage: 1,000 records

• Data Transfer: USB-C

🔦 VFL (Visual Fault Locator)

• Wavelength: 650 ±5 nm

• Output Power: 1 mW max

• Connector: MPO (Light Source), 2.5mm universal (Power Meter)

Device Specifications

🔧 Available Accessories

• VIS300 Video Inspection Probe (optional)

• MPO/APC and straight adapter tips (for VIS300)

• OM3 Encircled Flux Reference Cord (F1EFRC-OM3)

• MTP Pro Gender Changing Tool
