SP1-SPC870 is a Basic Fiber Install Kit in a ruggedized heavy-duty case. This universal kit includes a comprehensive collection of essentials for fiber optic cable installation, maintenance and termination. Remove sheaths, cut strength members, strip cable and install equipment with just one kit.

The cable splicer's kit features a splicer's knife with a tough steel coping-style blade plus stain- and rust-resistant steel multi-purpose scissors with serrated blade in a stitched and riveted holster.

Use the provided plastic pump bottle with exclusive "Twistlock" pump to dispense alcohol (not included).

A unique hand-held fiber cleaning dispenser assures totally dirt- and lint-free field connections for optimal signal transmission.

Its "Ultra White" non-woven, lint-free film removes dust, dirt, oil and grease from fiber and ferrule end faces.

A precision fiber optic stripper is manufactured to tolerances tighter than .0005". It requires less than a pound of peak force for stripping coated fiber. Fiber guide assures concentric scoring and precision-stripped, nick-free fiber without cladding or core damage. Use this tool with cutter blade set for singlemode 125-†µm fiber cladding with hard, tough or thick coating/buffer up to 250 mm.

The high-leverage 6.5" Kevlar shear has non-slip hardened stainless steel serrated blades. It trims back the DuPont Kevlar† that serves as the central strength member in optical fiber. This hot-forged, high-carbon steel tool has a quick-action spring response. Use the silicone adhesive/sealant for resealing splice closures.

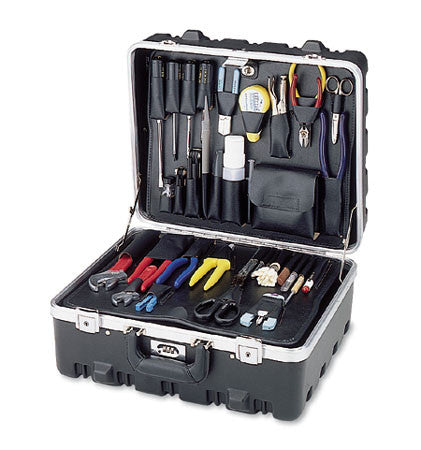

All the fiber optic tools and supplies come organized on two removable pallets in a high-density black polyethylene tool case. Special heavy-duty material has extra-deep exterior ridges to make this case virtually indestructible. Protruding bumpers protect both case and tools from damage. A heavy-duty tongue strap with grommet secures the top tool pallet in the lid. Includes chrome keyed latches, combination lock, piano hinge, lid stays and comfortable padded handle.

Weighing 24.8 pounds fully loaded, the SP1-SPC870 measures 18" x 14.75" x 9" (inside dimensions). The empty case also may be purchased separately.

Tools come with lifetime warranties; the case has a one-year warranty.

Tool Kit Content:

• HD Polyethelyne 9" Case with Two Pallets
• Syringe w/ Needle
• Vinyl Electrical Tape
• Coaxial Cable Stripper
• Wire Marker Dispenser
• Vice-Grip 6" Long Nose-Type
• RTV Silicone Adhesive / Sealant
• Cloth Tape, 27 3/4" x 66'
• Kimwipes 4.5" x 8.5", 280/Box
• Seam Ripper
• Straight Reamer/Scraper
• 5-pc Fold-Up Hex Key Set, 3/16"-3/8"
• 99% Isopropyl Alcohol Swipes.
• No-Nik Wire Strippers, .010
• Splicer's Kit
• Heavy-Duty Shears
• 15/16" Wide-Capacity Adjustable Wrench with Cushion Grip
• 1 5/16" Wide-Capacity Adjustable Wrench with Cushion Grip
• 10" Utility Plier
• Half Round 8" File
• 5" Standard Diagonal Cutter
• 6" Standard Long-Nose Plier with Side Cutters
• 9" High-Leverage NE SideCutter
• 8 11/32" Cush.-Grip Screwdriver
• 10 15/16" Cush-Grip Scrdriver
• Phillips Screwdriver #1
• Phillips Screwdriver #2
• Power-Return Rule-Double Sided 7.5m X 25mm
• Diagonal Cutting Pliers, 8"
• Four-Ounce pump Bottle
• Industrial Acid Brush Only
• Screwdriver with Phillips
• Precision-Point Tweezer
• Angled-Point Tweezer
• Retractable Utility Knife
• Glass Flux Bottle, 1/2 Ounce
• FiberClean Dispensing System
• Tie Wraps, 6", 100/pkg
• Tie Wraps, 15", 100/pkg
• Standard Replacement Blades
• Standard Precision Knife
• 7-pc Folding Hex Set, 1.5mm - 6mm
• 250 Micron Buffer Stripper
• Fiber Optic Shears
• Safety Glasses, Clear
