FMC-2000MS Gigabit Ethernet dual speed SFP slot fiber media converter - web managed
CFMC-2000MS Gigabit Ethernet dual speed SFP slot fiber media converter - web managed.
FMC-2000MS converter is the newest Gigabit Ethernet fiber media converter introduced by FOSCO. A new member of the popular FMC series, the FMC-2000MS Gigabit converter has an SFP dual speed 155M/1.25G slot for optical transceiver and one RJ-45 copper port with auto-negotiation 10/100/1000 and MDI/MDI-X features for the Gigabit Ethernet copper interface.
The FMC-1000MS has its own IP address and can be web managed, supporting also Link-Fault-Pass through function (LFP - an extremely useful feature to easily debug faulty fiber links), Far-End-Fault function (FEF) and acting on a Store-and-Forward switching platform.
- 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Switch
- Auto-Cross over for MDI/MDIX in TP port
- Auto-Negotiation or Manual mode in TP port
- Supports flow control Enable or Disable
- Supports Jumbo Frame 16K Packet
- Ingress/Egress Bandwidth control
- Supports IEEE 802.3ah OAM management
- Supports SNMPv1
- Digital Diagnostic (DOM) SFP Support
- Management Password Setting
- Dying gasp (remote power failure detection)
- Supports Link Fault Pass-Through ( LFPT ) Function
- Supports Auto Laser Shutdown (ALS) Function
- USB console port and Web management on stand-alone.
- Supports On-Line F/W upgrade (local) by the Web manager
- Supports 16 Tag VLAN Groups
- RMON counters
- May be concentrated into FMC-CH17 or FMC-CH08 chassis (Adapter Type only)
- May be used as a remote to FRM220-2000MS
- Wall-Mountable
| Copper interface: | RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and IEEE 802.3ab 1000Base-T compliant, USB-C console port |
| Optical interface: | 155M/1.25G SFP slot (dual 100BaseX / 1000BaseX) |
| Ethernet interface: | Supports 10/100/1000Base-T/TX, Full, Half duplex n-way (Auto-Negotiation). Supports Full, Half duplex, 10/100/1000 speed manual selection. Transmission Packet Rate for 10/100/1000Base-T/TX : 14880 per second /148800/1488000 per second. Copper TP cable 4 pair Cat. 5, 5e or 6 UTP |
| Features: |
FEF (Far-End-Fault) and LFP (Link-Fault-Pass through) Unit supports IEEE 802.3ah OAM management and SNMPv1 as well |
| Fiber operating distance: | according to SFP optical module installed |
| Optical connector: | LC connector for SFP module |

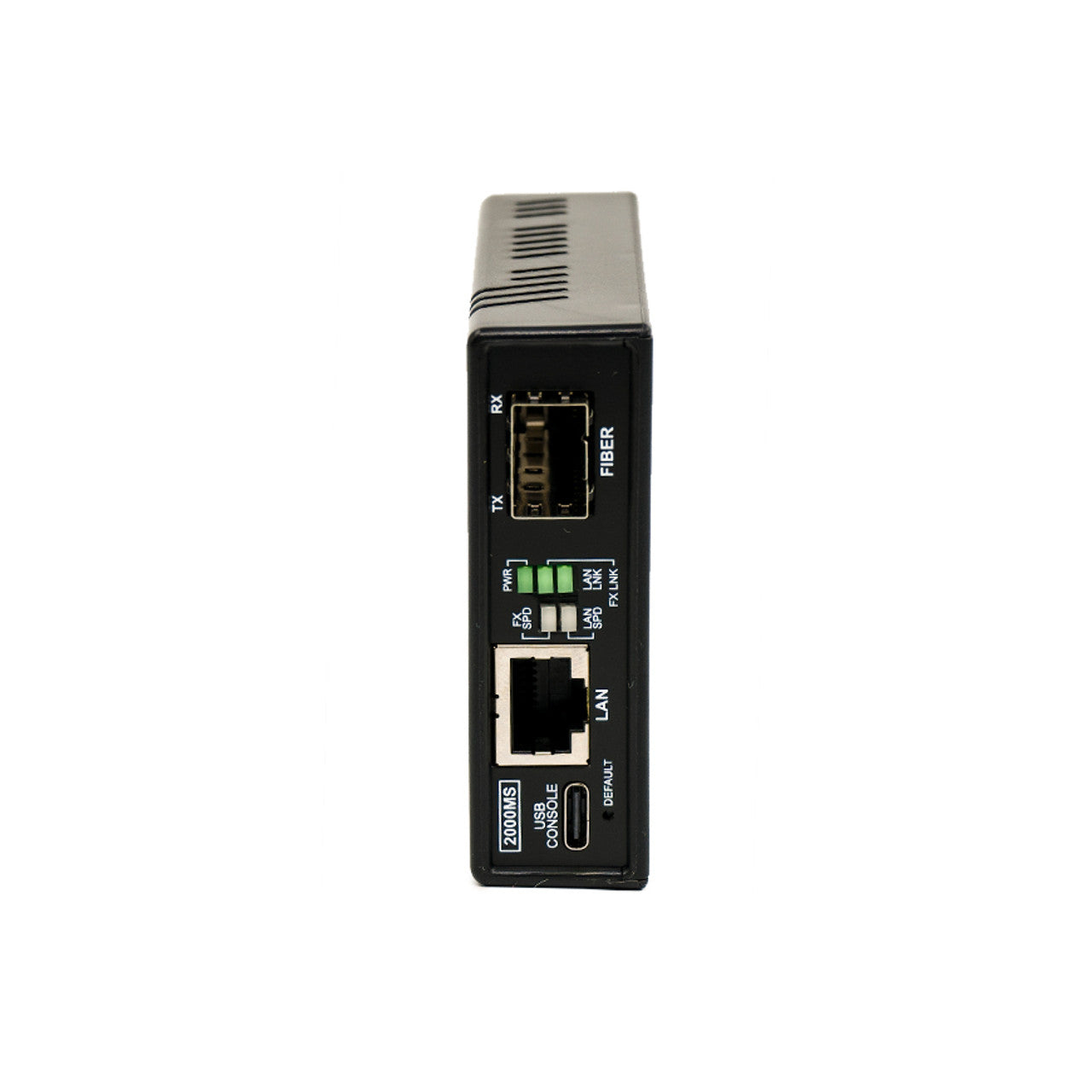

| Front LEDs: | PWR, LLF, Fiber Link, TP Link, Duplex, Speed |

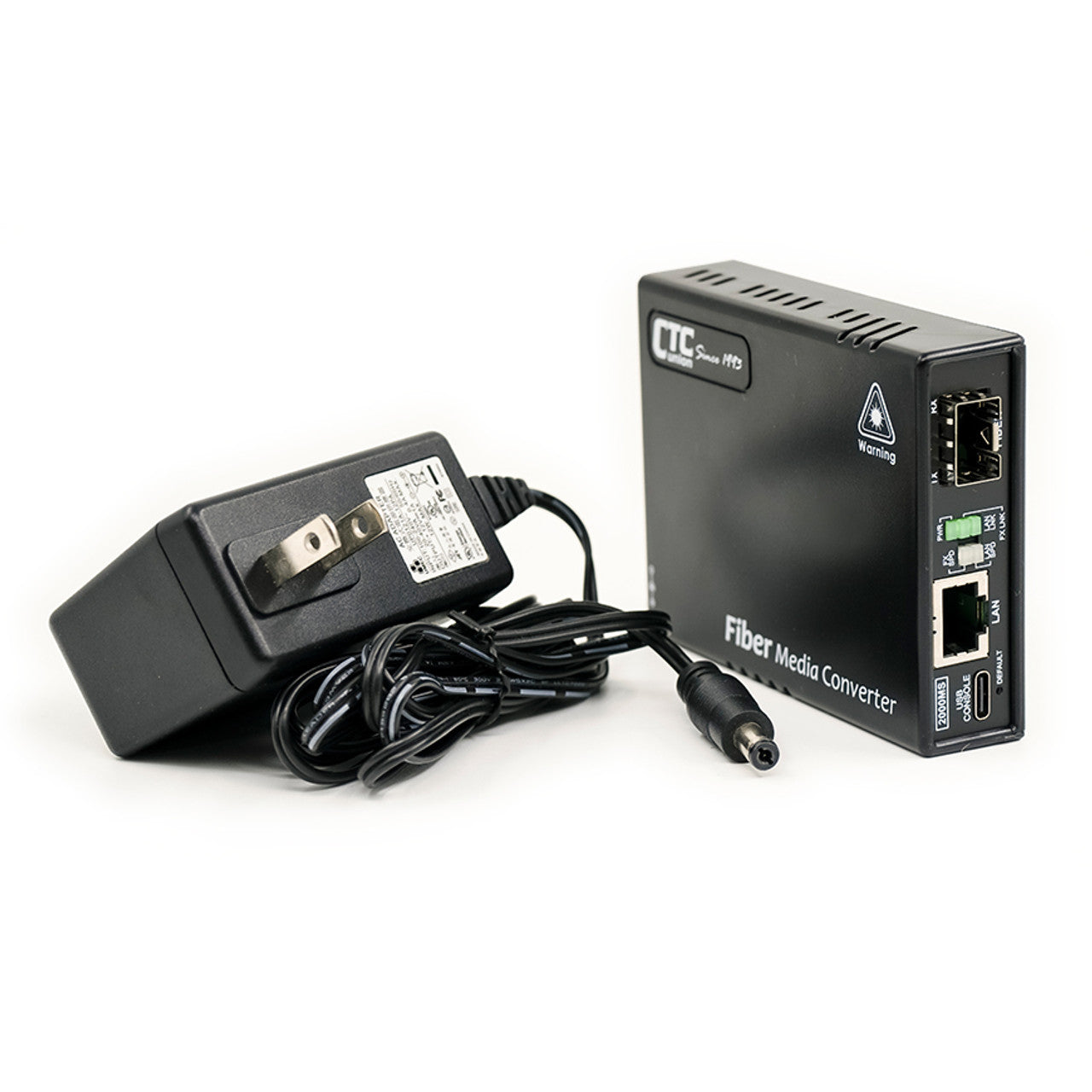

| Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug AC 90-240V power adapter is included in carton package |
| Temperature: | 0~50°C (Operating); 0~70°C (Storage) |
| Humidity: | 20-80% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 73mm x 108mm x 23mm |
| Weight: | 160g (without AC adapter) |
| Compliance: | FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001 |
| MTBF: | 65,000 hours |
|
UPC:
|
811704013230
|
|
INTERFACE TYPE:
|
Gigabit Ethernet
|
|
MANAGEMENT:
|
web-managed
|
|
TRANSCEIVER FORMAT:
|
SFP
|
|
POWER TYPE:
|
separate AC adapter included
|
|
CONNECTORS:
|
RJ45 (Ethernet)
SFP slot
|
|
CABLE TYPE:
|
50/125um multi-mode
62.5/125um multi-mode
9/125um single-mode
|
|
FEATURES:
|
802.1q VLAN
dying gasp
bandwidth limiting
16K Jumbo frame support
LFP Link Fault Pass through
|
