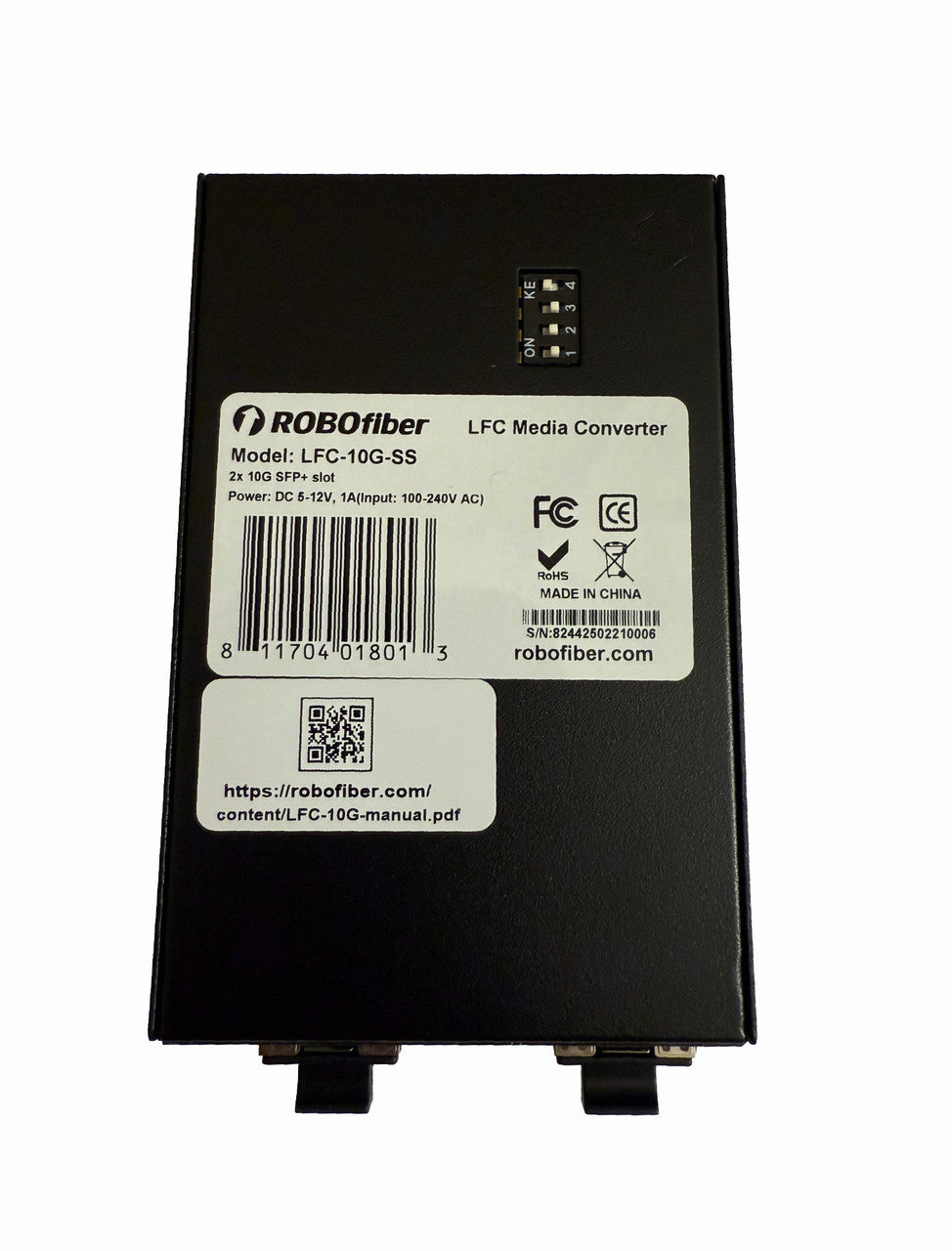

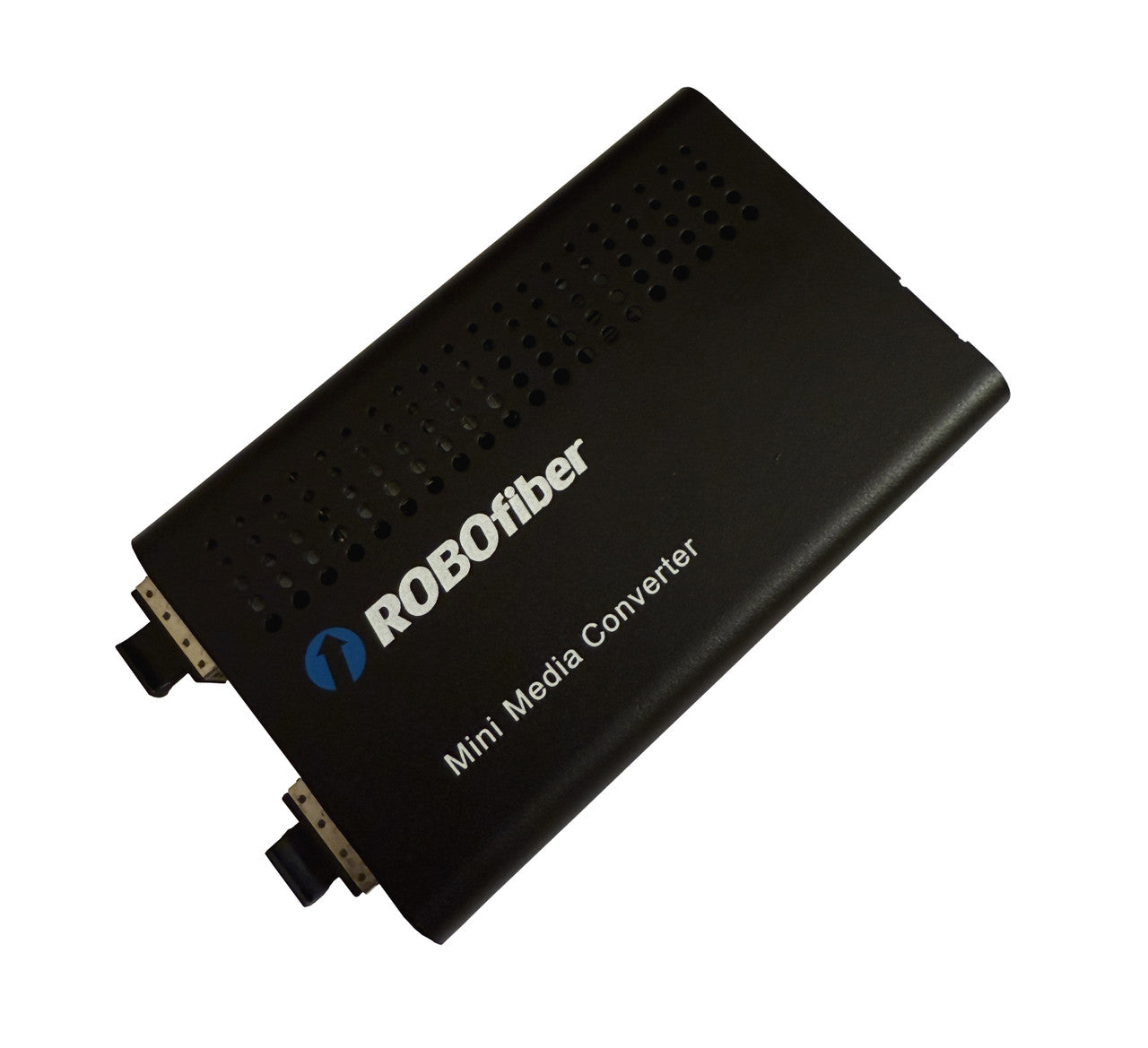

LFC-10G-SS multi-rate 1G/2.5G/5G/10G SFP+ to SFP+ slot 3R OEO fiber media converter

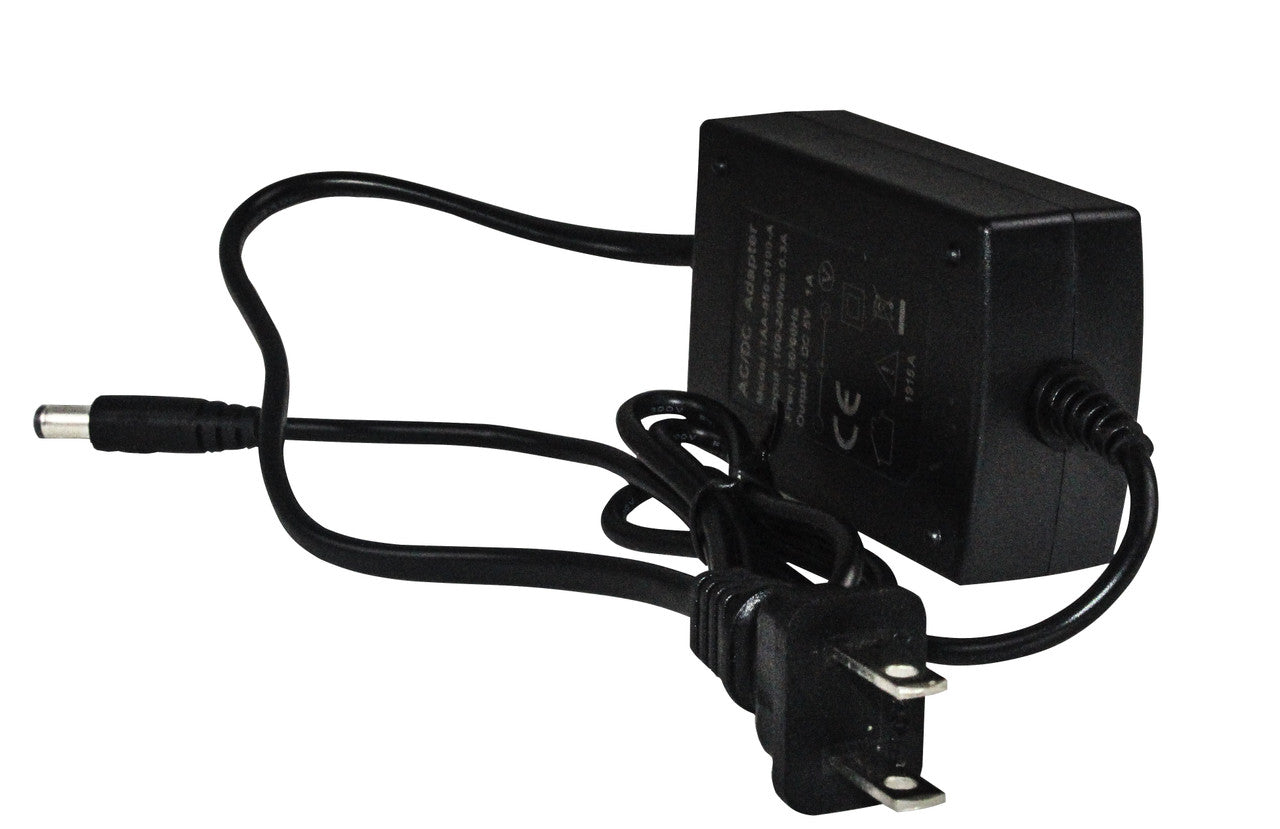

* Note: AC 90-240V power adapter is included in carton package.
Product description
LFC series are newest series of media converters. The LFC-10G-SS is a multi speed 100M/1G/2.5G/5G/10G SFP+ to SFP+ slot un-managed 3R fiber media converter. The SFP+ port can work with any 10G rated SFP+ such as SR, LR, ER, ZR, BiDi, CWDM or DWDM type and does also accept regular Gigabit speed only SFP transceivers.
User must choose SAME RATE SFP transceivers for both slots. LED indicators signal the power status of the converter, and FX Link status for each port.
Used with their compatible LFC-CH12 fiber optic chassis they can be aggregated up to 12 units in a 19" wide and only 1RU of height space only. This is the highest density attainable for un-managed fiber media converters.
The LFC-10G-SS multi-rate media converter is a very affordable solution for 10G Ethernet media conversion. It also includes a wall mounting solution for individual converters named LFC-WMK.
Features
- 100M/1G/2.5G/5G/10G SFP+ to SFP+ slot fiber converter
- Forward 2048 bytes (Max.) packets in switch mode (copper & fiber port in different speed)
- Forward 9k bytes in converter mode (fiber & copper port at the same speed)
- Supports Q in Q double tagged frame transparent
- Supports IEEE 802.1Q Tag VLAN pass thru
- Aggregates into LFC-CH12 series chassis available with various power supplies
Technical specifications
| Copper interface: | RJ45 copper IEEE 802.3an (10GBase-T) and IEEE 802.3z (1000Base-T) compliant, 5G and 2.5G Base-T compliant |
| Optical interface: | 10G SFP+ (10GBase-X) and Gigabit SFP (1000Base-X) compatible slot |
| Ethernet interface: | Supports 1000Base-T/10GBase-T, transmission packet rate 14880000 per second. Copper TP cable 4 pair Cat. 6, 6a or 7 UTP |
| Optical connector: | LC connector for SFP module (SFP transceiver NOT included) |

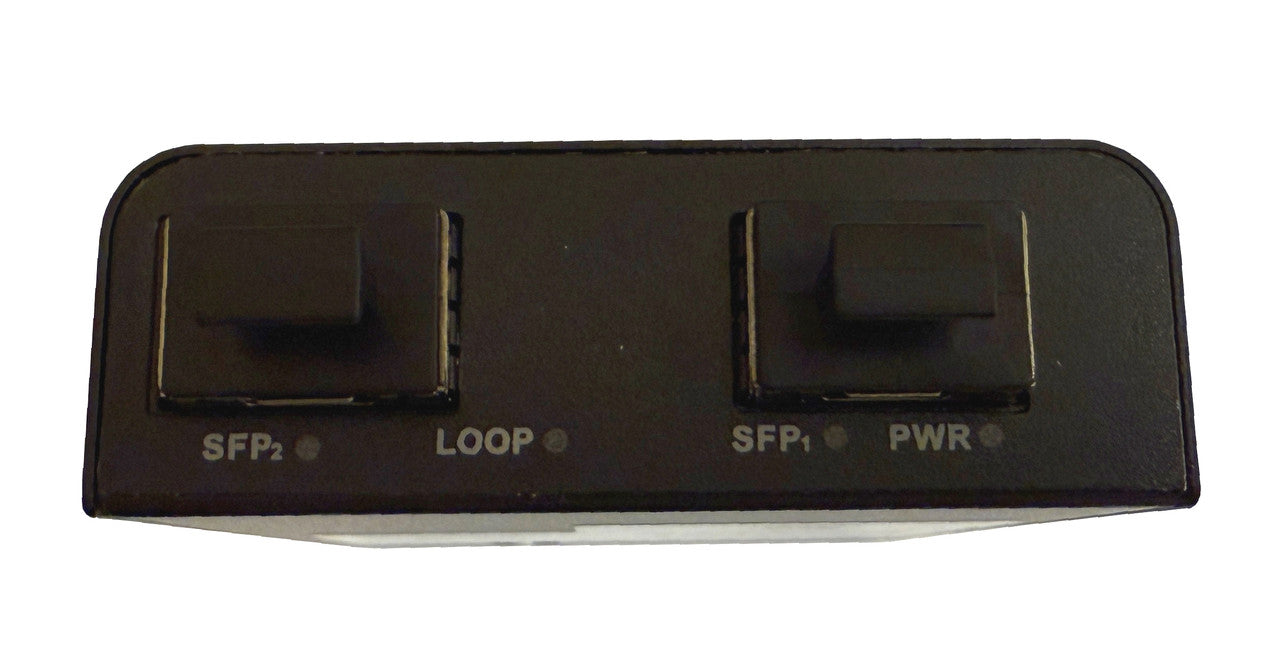

| Front LEDs: | PWR, Fiber Link, TP Link, Speed |

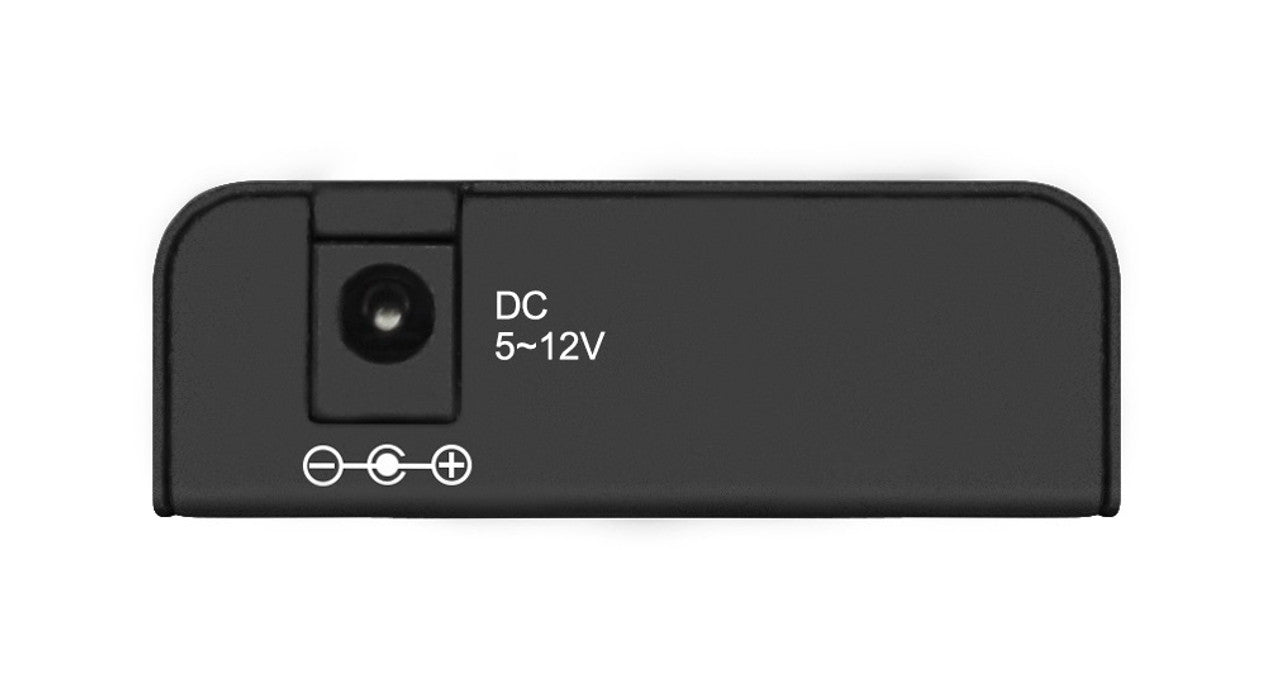

| Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug AC 90-240V power adapter is included in carton package |
| Temperature: | 0~50°C (Operating); -30~70°C (Storage) |
| Humidity: | 10-85% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 60mm x 90mm x 20mm |
| Weight: | 180g (without AC adapter) |
| Compliance: | FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001 |
| MTBF: | 65,000 hours |
Additional information on LFC-10G-SS converter:
PDF Datasheet; PDF Installation Manual. Note: A large selection of SFP optical modules are available for the LFC-10G-SS.
