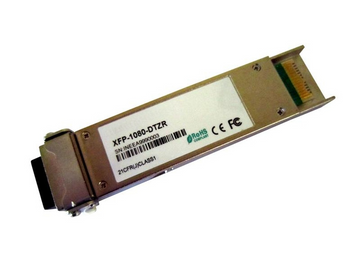

Tunable XFP 10G DWDM optical module for 80km
Product description
The XFP-1080-DTZR is a Tunable DWDM 10G XFP optical module. Module can be set to operate on any DWDM 50GHz ITU grid wavelength channels.
The 50GHz grid overlaps 100Ghz values, so many standard 100GHz grid DWDM channels can be approached using this type of optical transceiver.
The transceiver supports all 10G rated speeds for Ethernet, SONET, SDH or Fibre Channel networks.
XFP-1080-DTZR offers unparalleled flexibility adjusting the main laser wavelength for 80 different channels in the 50GHz grid. It is using a C-band tunable laser with wavelength locker that allows accuracy of 0.02nm for any DWDM channel.
The XFP-1080-DTZR can be managed with the FRM220-10G-SXX 10G transponder from CTCUnion.
The XFP-1080-DTZR operating wavelength can be configured in 30 seconds after a cold reboot or in less than 2 seconds after a warm reboot. Please contact us and inquire on the availability of the SFP+ variant of this model.
XFP-1080-DTZR 10G XFP Tunable DWDM transceiver specifications
| Form factor | XFP |
| Speed | 9.95 to 11.3Gb/s |
| Optical connector | dual LC |
| Operating distance | 80Km |
| Power | single 3.3V |
| Compliance | MSA SFF-8431, RoHS |
| Operating mode | DWDM ITU channels 50GHz grid |
| Fiber type | Single-mode 9/125um |
| Wavelength | DWDM ITU grid (1528.77~1563.86nm) |
| Digital Diagnostic | Yes (SFF-8472 compliant) |
Additional information on XFP-1080-DTZR Tunable DWDM transceiver:
PDF Datasheet
