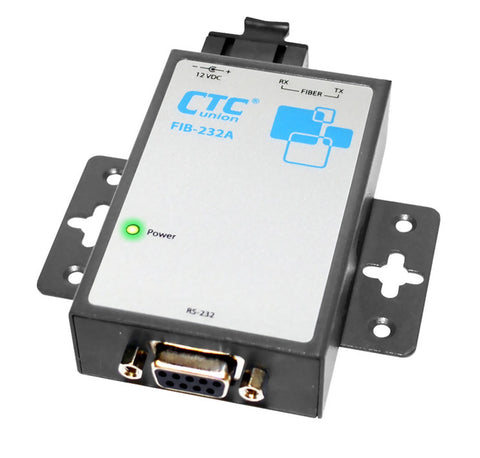

RS-232 over multi-mode fiber media converter, SC connector, 2Km range
The FIB-232A-SC002 provides a fiber converter solution to extend 3 wire serial RS-232 interface transmission up to 2km over multi mode fiber. Unit is also available with longer range optics, multi-mode and BiDi WDM optical modules for operation on single strand fiber optic circuits. The FIB-232A secures data transmission over EMI resistant fiber at speeds up to 230.4kbps for asynchronous RS-232. It is presented in a compact size with wall mounting holes and it is available also with optional DIN rail mounting.
Technical specifications
| Interfaces: | DB-9 female connector for RS-232 serial asynchronous port and dual SC fiber port |
| Operating wavelength: | 1310nm multi-mode |
| Operating distance: | 2Km on 62.5/125um or 50/125um fiber |
| Optical connector: | SC duplex, ST or FC available on request |
| Front LEDs: | Power |
| Power: | External 90-260V AC switching adapter 12VDC@400mA with NEMA1-15(2 blades only), US type main plug |
| Temperature: | 0 ~ 5°C (Operating); 0 ~ 7°C (Storage) |
| Humidity: | 20 80% non condensing (Operating); 0 90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 50mm x 95mm x 22mm |
| Weight: | 90g (without AC adapter) |
| Compliance: | CE, FCC Class A |
| MTBF: | 65,000 hours |
