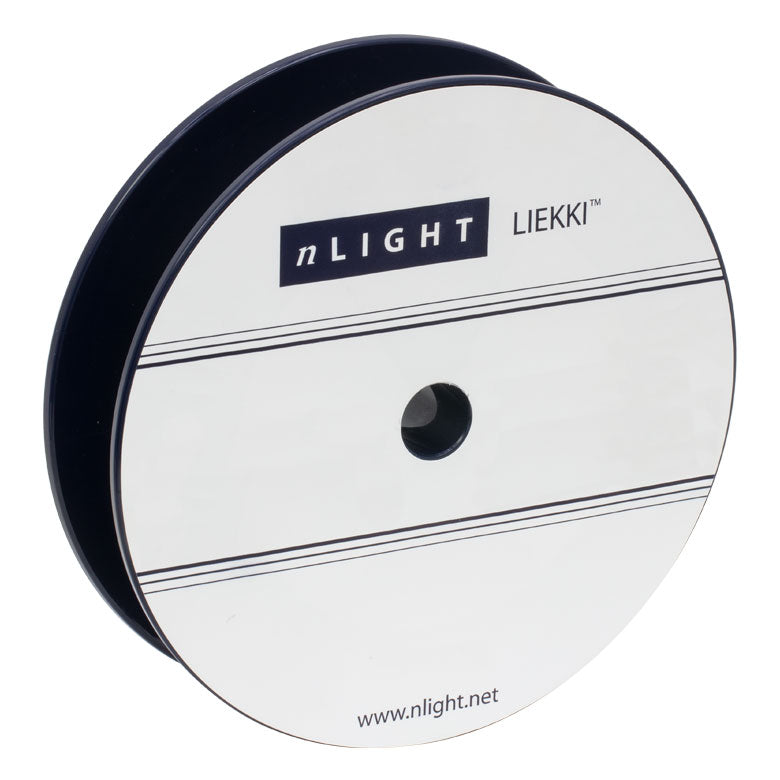

T-P-25/250DC-PM - Passive PM LMA Double-Clad Fiber, 25 µm Core, Matched to YB1200-25/250DC-PM , Unit Pricing Per Meter
Roll over image to zoom in Click on image to zoom
T-P-25/250DC-PM - Passive PM LMA Double-Clad Fiber, 25 µm Core, Matched to YB1200-25/250DC-PM , Unit Pricing Per Meter

T-P-25/250DC-PM - Passive PM LMA Double-Clad Fiber, 25 µm Core, Matched to YB1200-25/250DC-PM , Unit Pricing Per Meter

Fosco ConnectSKU: T-P-25-250DC-PM
Price:
$ 162.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-P-25-250DC-PM - Passive PM LMA Double-Clad Fiber, 25 µm Core, Matched to YB1200-25/250DC-PM, Unit Pricing Per Meter

Product Spec Sheet

  • Optimized for Coupling to Active Doped Fibers
  • Single Mode and Large Mode Area (LMA) Options
  • Industry-Standard Geometries for Easy Handling
  • Polarization Maintaining
  • Compatible Active Fiber YB1200-25/250DC-PM
  • Cladding Geometry Round, Panda
  • Core Diameter 25.0 ± 1.5 µm
  • Cladding Diameter 250 ± 3 µm
  • Coating (Second Cladding) Diameter 350 ± 15 µm
  • Core NA 0.070 ± 0.005
  • Cladding NA ≥0.48
  • Proof Test ≥100 kpsi
