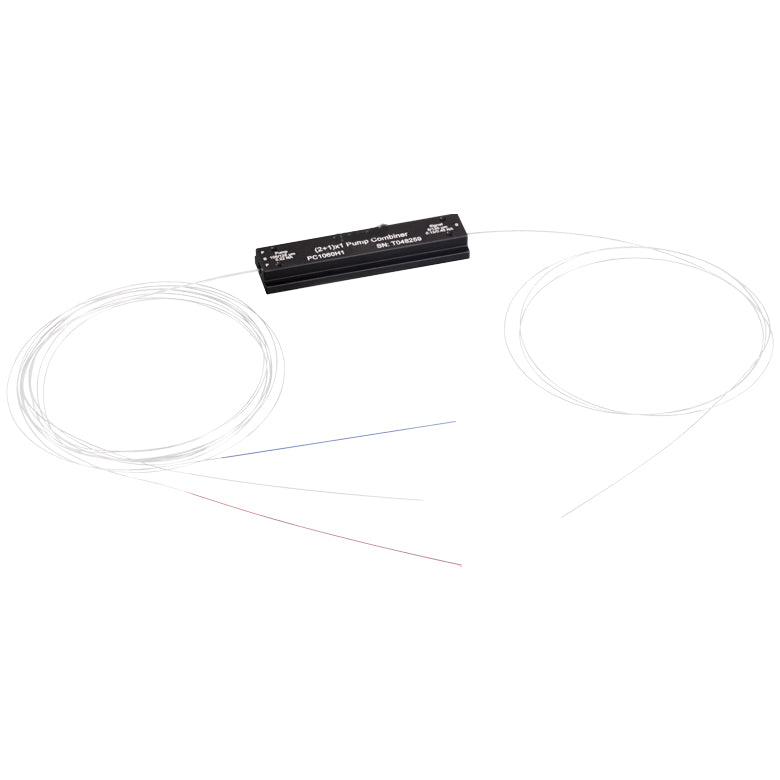

T-PC1060H2 - (2+1)x1 Pump and SM Signal Combiner, Ø10 µm Core Signal, High-Power Package
Product Drawing
- Pump Light Couples into 1st Cladding of Double Clad Fiber
- Signal Light Propagates Through Core of Double Clad Fiber
- Single Mode (SM) or Polarization-Maintaining (PM) Signal and Output Fiber
- High Power Handling for Fiber Laser and Fiber Amplifier Applications
-
Max Power Level 50 W per Pump Port
- Pump Transmission Efficiency ≥95%
- Signal Fiber Specifications Type SM
- Signal Fiber Specifications Core/Cladding Diameter 10/125 µm
- Signal Fiber Specifications NA 0.08/0.46
- Pump Fiber Specifications Type MM
- Pump Fiber Specifications Core/Cladding Diameter 105/125 µm
- Pump Fiber Specifications NA 0.22
- Housing Dimensions (L x W x H) 2.36" x 0.59" x 0.28"
| Combiner Specifications |
| Port Configuration |
(2+1)x1 |
| Signal Wavelength Range |
1040 - 1080 nm |
| Pump Wavelength Range |
800 - 1100 nm |
| Signal Insertion Loss |
≤0.5 dB (Typ.) |
| Pump Transmission Efficiency |
≥95% |
Pump Max Power Level per Port
|
50 W |
| Pump Optical Return Loss (ORL) per Port |
≥35 dB |
| Fiber Lead Length and Tolerance |
0.8 m +0.075 m/-0.0 m |
Connectors
|
No Connectors, Scissor Cut |
| Package Size (L x W x H) |
2.36" x 0.59" x 0.28"
(60.0 mm x 15.0 mm x 7.0 mm) |
| Pigtail Tensile Load |
10 N |
| Operating Temperature |
0 to 75 °C |
| Storage Temperature |
-40 to 85 °C |
| Fiber Specifications |
| Port |
Pump |
Signal Input |
Output |
| Fiber |
FG105UCA or Equivalent |
Nufern® LMA-GDF-10/125-M |
| Core Diameter |
105 µm |
10 µm |
| Cladding Diameter |
125 µm |
125 µm |
| Core NA |
0.22 |
0.08 |
| Cladding NA |
- |
0.46 |
