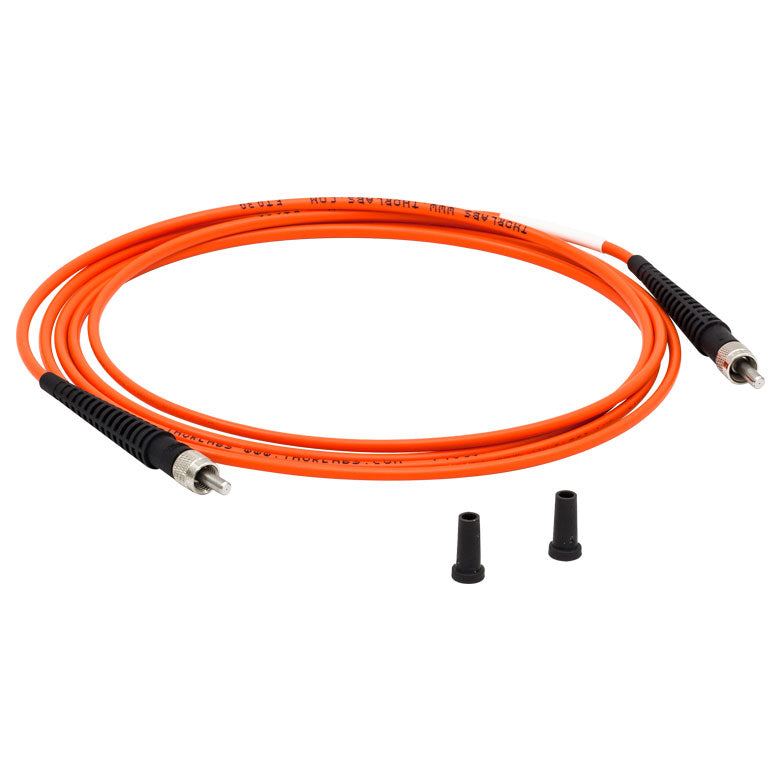

TH-M37L01 - Ø550 µm, 0.22 NA, SMA-SMA Fiber Patch Cable, Low OH, 1 Meter

TH-M37L01 - Ø550 µm, 0.22 NA, SMA-SMA Fiber Patch Cable, Low OH, 1 Meter

Core Diameter 550 ± 19 µm

Cladding Diameter 600± 10 µm

Coating Diameter^a 630 ± 10 µm

Short-Term Bend Radius^b  30 mm

Long-Term Bend Radius^b 60 mm

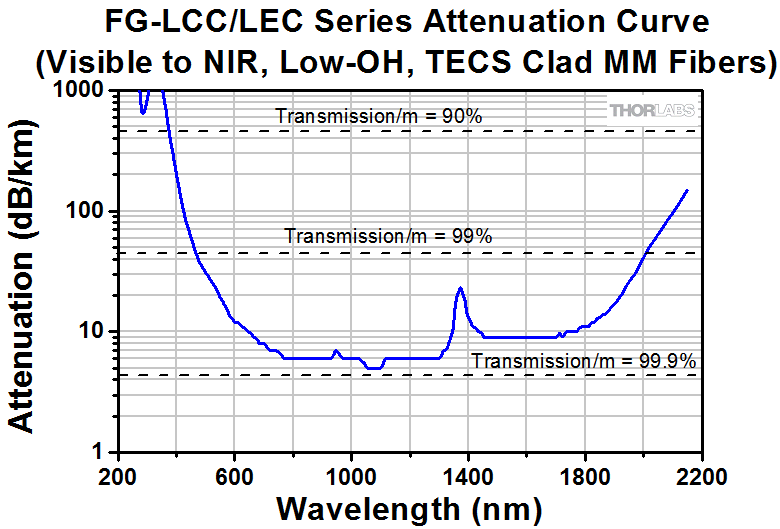

Wavelength Range 400 to 2200 nm (Low OH)

Jacket Ø3 mm Orange PVC Furcation Tubing

Product Drawing
