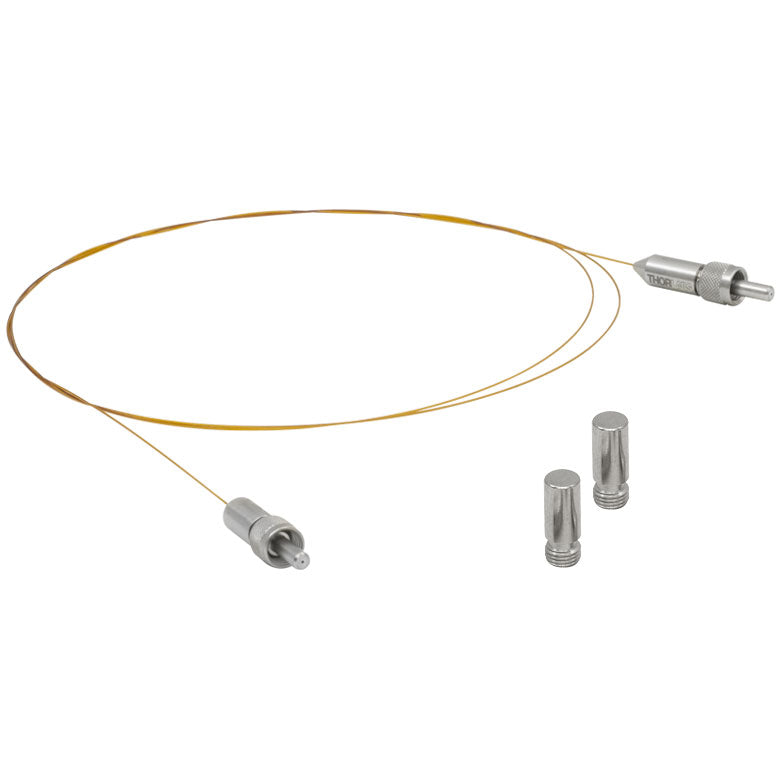

TH-MV42L05 - Ø400 µm, 0.22 NA, UHV, High-Temp. SMA Patch Cable, Low OH, 0.5 Meter

TH-MV42L05 - Ø400 µm, 0.22 NA, UHV, High-Temp. SMA Patch Cable, Low OH, 0.5 Meter

Product Drawing

Fiber Low OH, Polyimide Coated

Operating Range 400 - 2200 nm

Core Diameter 400 ± 8 µm

Cladding Diameter 440 ± 9 µm

Coating Diameter 480 ± 7 µm

NA  0.22

Bend Radius 106 mm (Long Term)^d 53 mm (Short Term)^c

Continuous Vacuum Level^a 1 x 10^-10 Torr

Continuous Operating Temperature^a 250 °C (Max)
