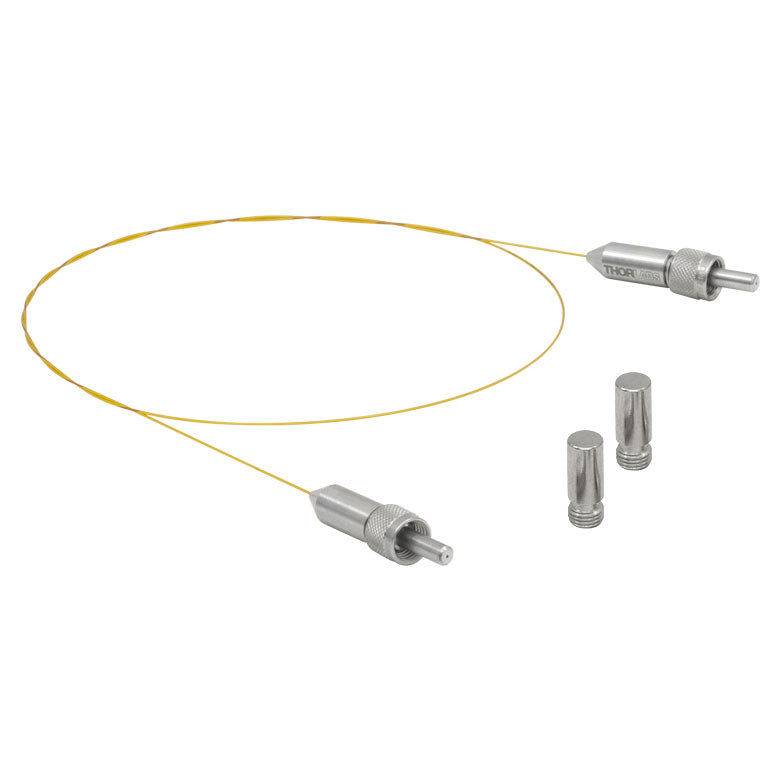

TH-MV64L1 - Ø600 µm, 0.22 NA, UHV, High-Temp. SMA Patch Cable, Low OH, 1 Meter

TH-MV64L1 - Ø600 µm, 0.22 NA, UHV, High-Temp. SMA Patch Cable, Low OH, 1 Meter

Product Drawing

Fiber Low OH, Polyimide Coated

Operating Range 400 - 2400 nm

Core Diameter 600 ± 10 µm

Cladding Diameter 660 ± 10 µm

Coating Diameter

NA  0.22

Bend Radius ≥33 mm (Short Term) ≥67 mm (Long Term)

Continuous Vacuum Level^a 1 x 10^-10 Torr

Continuous Operating Temperature^a 250 °C (Max)
