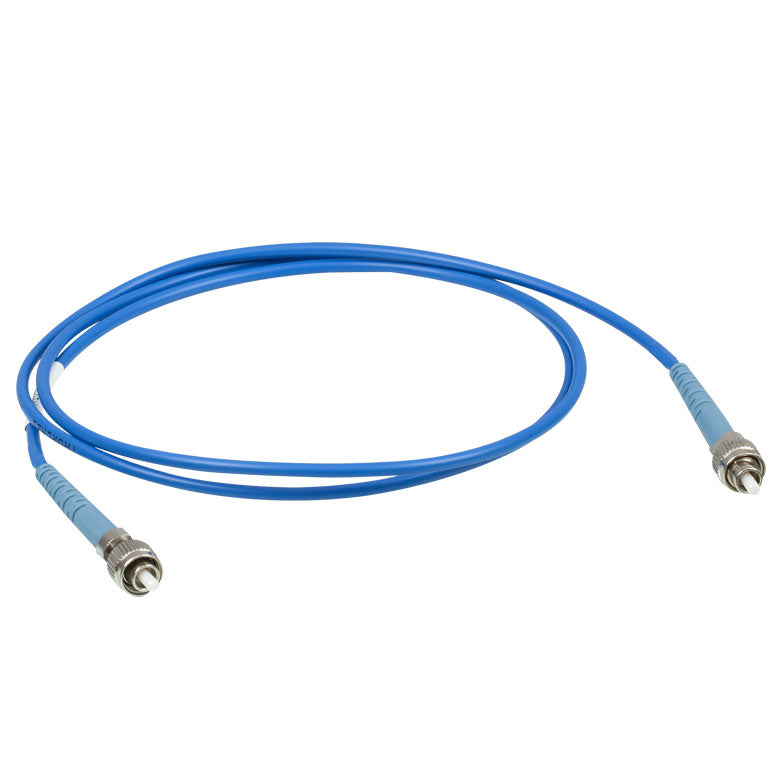

TH-P1-488PM-FC-1 - PM Patch Cable, PANDA, 488 nm, FC/PC, 1 m

TH-P1-488PM-FC-1 - PM Patch Cable, PANDA, 488 nm, FC/PC, 1 m

Product Drawing

Alignment Wavelength 488 nm

Fiber Type Panda PM460HP

Operating Wavelength 460 - 700 nm

Cutoff Wavelength 410 ± 40 nm

Extinction Ratio^a,b  18 dB (Min) 20 dB (Typ.)

Insertion Loss^a,b 1.50 dB (Max) 1.20 dB (Typ.)

Mode Field Diameter^c  3.3 ± 0.5 µm @ 515 nm

Jacket Ø3 mm Blue PVC Furcation Tubing
