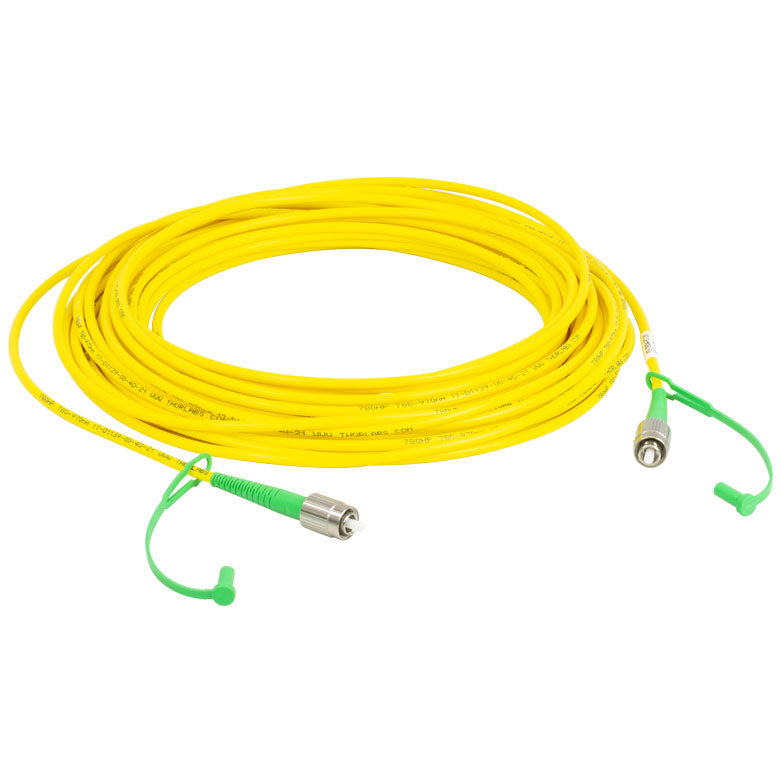

TH-P3-780A-FC-10 - Single Mode Patch Cable, 780 - 970 nm, FC/APC, Ø3 mm Jacket, 10 m Long
Roll over image to zoom in Click on image to zoom
TH-P3-780A-FC-10 - Single Mode Patch Cable, 780 - 970 nm, FC/APC, Ø3 mm Jacket, 10 m Long

TH-P3-780A-FC-10 - Single Mode Patch Cable, 780 - 970 nm, FC/APC, Ø3 mm Jacket, 10 m Long

Fosco ConnectSKU: THP3-780A-FC-10
Price:
$ 325.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-P3-780A-FC-10 - Single Mode Patch Cable, 780 - 970 nm, FC/APC, Ø3 mm Jacket, 10 m Long

Product Drawing

Fiber Type 780HP

Operating Wavelength 780 - 970 nm

Cutoff Wavelength 730 ± 30 nm

Mode Field Diameter 5.0 ± 0.5 µm@ 850 nm

Cladding Diameter 125 ± 1.0 µm

Coating Diameter 245 ± 15 µm

Max Attenuationa  <3.5 dB/km @ 780 nm

NA  0.13

Connectors FC/APC, 2.0 mm Narrow Key

Jacket  Ø3 mm Yellow PVC Furcation Tubing
