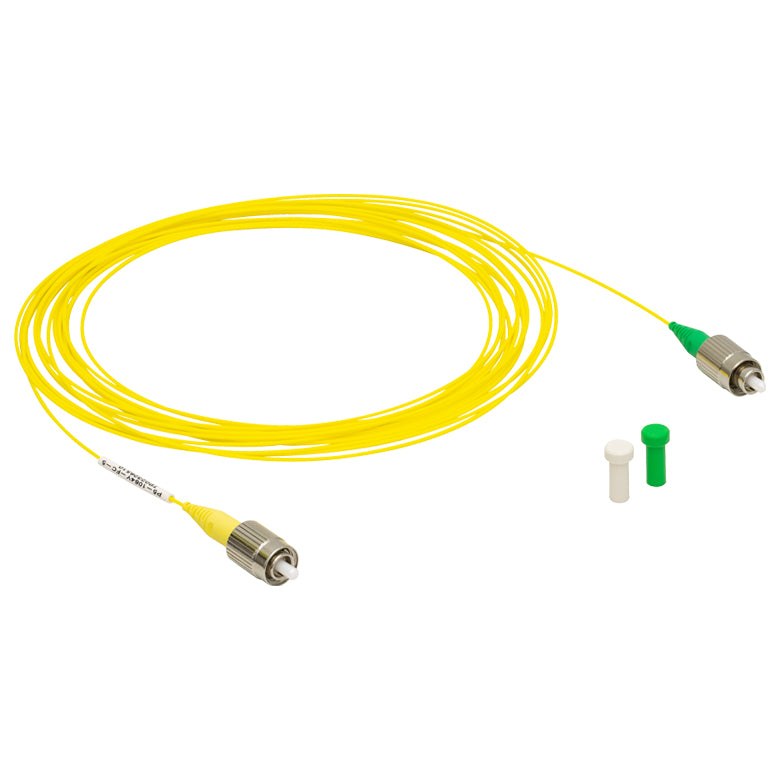

TH-P5-980A-PCAPC-1 - Single Mode Patch Cable, 980 - 1550 nm, FC/PC to FC/APC, Ø3 mm Jacket, 1 m Long
Roll over image to zoom in Click on image to zoom
TH-P5-980A-PCAPC-1 - Single Mode Patch Cable, 980 - 1550 nm, FC/PC to FC/APC, Ø3 mm Jacket, 1 m Long

TH-P5-980A-PCAPC-1 - Single Mode Patch Cable, 980 - 1550 nm, FC/PC to FC/APC, Ø3 mm Jacket, 1 m Long

Fosco ConnectSKU: THP5-980A-PCAPC-1
Price:
$ 145.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-P5-980A-PCAPC-1 - Single Mode Patch Cable, 980 - 1550 nm, FC/PC to FC/APC, Ø3 mm Jacket, 1 m Long

Fiber Type SM980-5.8-125

Operating Wavelength 980 - 1550 nm

Cutoff Wavelength 870 - 970 nm

Mode Field Diameter  5.9 - 6.4 µm @ 980 nm

Cladding Diameter 125 ± 1.0 µm

Max Attenuationa   ≤2.0 dB/km

NA 0.13-0.15

Furcation Tubing  Ø3mm Yellow PVC

Product Drawing
