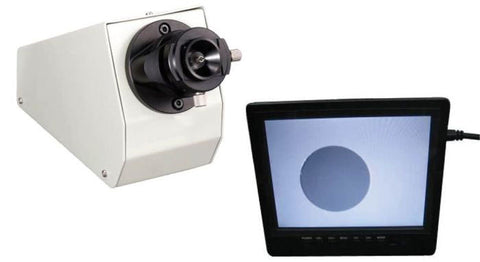

400X Benchtop Video Microscope with 8-Inch Monitor

The 400X Benchtop Video Microscope delivers high-resolution digital inspection of fiber optic connectors using state-of-the-art imaging. It features 200x and 400x magnification, making it ideal for detecting scratches, debris, and polishing defects during post-polish inspection, QC evaluation, or patch cord production.

Designed for flexibility and precision, this system offers horizontal and vertical adjustments (up to 4mm and 3mm, respectively), making it ideal for inspecting high-density connectors such as MPO, MTRJ, and duplex LC, as well as large core fibers.

The included 8-inch LCD monitor connects via a BNC cable, providing a sharp 800 × 600 resolution display for real-time inspection. Universal 2.5mm and 1.25mm adapters are included for SC, LC, and other connector types. Additional adapters are available for SC/APC, LC/APC, Duplex LC, SMA, and MPO connectors.

Download Product Spec Sheet:

• 400x Benchtop Video Microscope spec sheet (PDF)

Specifications

• Magnification: 200X and 400X versions available

• Camera: BNC video output with coaxial LED illumination

• Monitor: 8-inch LCD tablet with BNC hookup

• Adapters Included: 2.5mm & 1.25mm Universal UPC

• Optional Adapters: SC/APC, LC/APC, Duplex LC, MPO, SMA (sold separately)

• Image Centering: User-adjustable

• Focus: Manual

• Resolution: 800 × 600

• Power Supply: 12V AC adapter

• Size: 4.6" × 3.1" × 3.1"

• Weight: 3 lbs

• Operating Temp: 14°F to 122°F (-10°C to +50°C)

• Storage Temp: -4°F to 140°F (-20°C to +60°C)

• Interface Ports: AV Port or USB Port

• Accessories: BNC cable, power supply, carrying case, manual

Ordering Info

• F1VM400D – 400X Benchtop Microscope with 8" Monitor

• F1VM200D – 200X Version

• Optional Tips: SC/APC (F1VMSCA), LC/APC (F1VMLCA), Duplex LC (F1VMLCDX), MPO/APC (F1VMMPOAF), MPO UPC (F1VMMPOUF), SMA905 (F1VMSMA)
