Features:

• Superior adhesive for long term reliability
• 2-up mount configuration speeds liner removal and installation
• 4-way cable tie entry makes part orientation fast and easy
• Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
• Used with Panduit cable ties for a complete wire routing solution

Specifications:

Part number	ABMM-AT-D0
RoHS Compliancy Status	Compliant

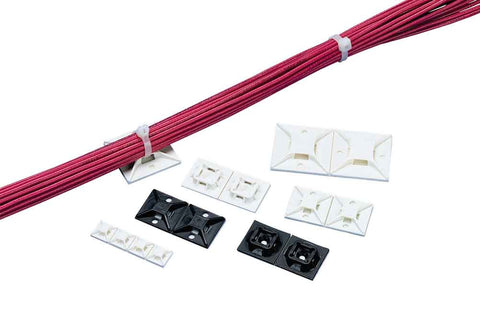

Part Description	4-Way Adhesive Backed Cable Tie Mount
Product Type	Cable Tie Mounts - Adhesive Backed
Material	Weather Resistant ABS
Color	Black
UL Recognized	E136577
Height (In.)	0.18
Height (mm)	4.6
Length (In.)	0.75
Length (mm)	19.1
Width (In.)	0.75
Width (mm)	19.1
Adhesive Type	Acrylic
CE Compliant	Yes
Environment	Outdoor/High Temp
Max. Bundle Diameter (mm)	3.7
Max. Continuous Use Temperature	180øF (82øC)
Max. Static Load (g)	136
Max. Static Load (Lbs.)	0.30
Mounting Method	Acrylic Adhesive Tape
Pricing Description	Cable Tie Mount, Hi Tmp. Adh., .75"x.75" (19.1mm x 19.1mm), WR BL
Sub Brand	Cable Tie Mount
Temperature Range	180øF (82øC)
Type	Adhesive Backed

Product Sheet:

• Spec Sheet
• Installation Manual
• Selection Guide
