Features:

• For indoor use

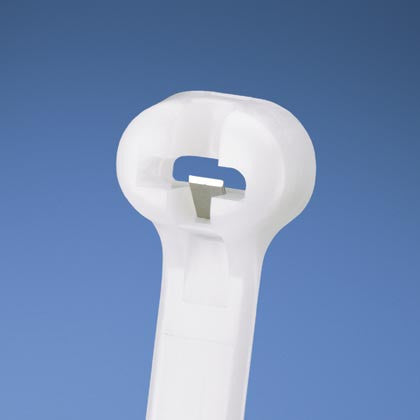

• Dome-top head features unique patented design with round, smooth edges
• Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
• High strength and low thread force
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)

Specifications:

Part number	BT1M-M
RoHS Compliancy Status	Compliant
Part Description	Cable Tie with metal barb, 4.0", Miniature cross section
Product Type	Cable Ties
Material	Nylon 6.6
Color	Natural
CSA Certified	Yes
Mil. Std. Part number	MS3367-4-9
UL Listed (File #E56854)	Yes
UL Recognized (File #E56854)	Yes
Length (In.)	4.0
Length (mm)	102
Width (In.)	0.095
Width (mm)	2.4
CE Compliant	Yes
Cross Section	Miniature
Head Height (In.)	0.156
Head Height (mm)	4.0
Head Width (In.)	0.172
Head Width (mm)	4.4
Locking Style	Locking
Material Flammability Rating	V-2
Max. Bundle Diameter (In.)	0.90
Max. Bundle Diameter (mm)	23
Max. Continuous Use Temperature	185øF (85øC)
Min. Bundle Diameter (In.)	0.06
Min. Bundle Diameter (mm)	1.5
Min. Loop Tensile Strength (Lbs.)	18
Min. Loop Tensile Strength (N)	80
Plenum-Rated	Yes, for use in plenum or air handling spaces per NEC Sec. 300.22 (C) and (D)
Pricing Description	Cable Tie, Metal Barb, 4.0"L (102mm), Miniature, Nylon, Natural
Thickness (In.)	0.036
Thickness (mm)	0.9
Tool	GTS, GTSL, GS2B, PTS, PPTS, STS2

Product Sheet:

• Spec Sheet
