Features:

• Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
• Dome-top head features unique patented design with round, smooth edges
• Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
• High strength and low thread force
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)

Specifications:

Part number	BT2S-M0
RoHS Compliancy Status	Compliant

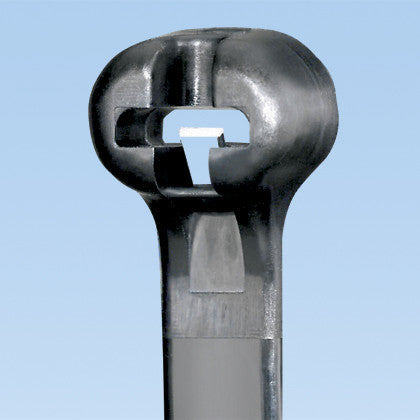

Part Description	Cable Tie with metal barb, 8.0", Standard cross section
Product Type	Cable Ties
Material	Weather Resistant Nylon 6.6
Color	Black
CSA Certified	Yes
UL Listed (File #E56854)	Yes
UL Recognized (File #E56854)	Yes
Length (In.)	8.0
Length (mm)	203
Width (In.)	0.185
Width (mm)	4.7
CE Compliant	Yes
Cross Section	Standard
Head Height (In.)	0.220
Head Height (mm)	5.6
Head Width (In.)	0.320
Head Width (mm)	8.1
Locking Style	Locking
Material Flammability Rating	V-2
Max. Bundle Diameter (In.)	2.00
Max. Bundle Diameter (mm)	51
Max. Continuous Use Temperature	185øF (85øC)
Min. Bundle Diameter (In.)	0.06
Min. Bundle Diameter (mm)	1.5
Min. Loop Tensile Strength (Lbs.)	50
Min. Loop Tensile Strength (N)	222
Plenum-Rated	No
Pricing Description	Cable Tie, Metal Barb, 8.0"L (203mm), Standard, Weather Resistant, Black
Thickness (In.)	0.045
Thickness (mm)	1.1
Tool	GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2

Product Sheet:

• Spec Sheet
