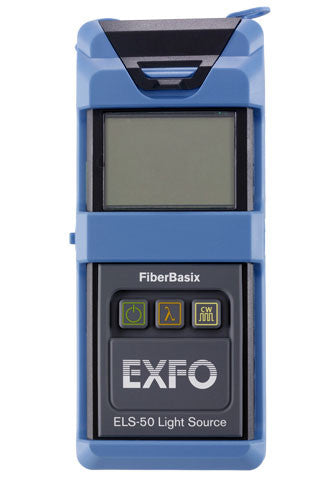

EXFO ELS-50 Dual Single Mode 1310/1550nm Light Source with Rubber Boot, FC Adapter
ELS-50 Light Source: Multiwavelength Capability
EXFO's ELS-50 Light Source provides excellent stability and high measurement accuracy for up to three single mode wavelengths or two multimode wavelengths. It is the perfect complement to the FiberBasix 50 EPM-50 Power Meter when it comes to measuring attenuation on fiber-optic links.
The new ELS-50 Optical Light Source is the new tone generation for fiber identification. Its excellent power stability gives reliable loss measurements for Telco/CATV and FTTH applications
Key Features:
- Rugged design
- Excellent power stability for reliable loss measurements
- Interchangeable connector adapters
- Up to 60 hours of battery life
- Tone generation for fiber identification
Applications:
- Telco/CATV and FTTH models; dual and triple wavelengths
- Enterprise/LAN models; single mode and multimode
Specifications:
- Central Wavelengths (nm): 1310nm (+/- 20nm), 1550nm (+/-20nm)
- Spectral Width (nm): < 5
- Output Power (dBm): > -5
- Power Stability (dB): +/-0.10
- Battery Life (hours): 60
- Tone Generation (Hz): 270, 1k, 2k
- Warranty: 1 year
Dowload Product Spec Sheet:
EXFO ELS-50 23BL Model 1310/1550nm Light Source Spec Sheet (PDF)
