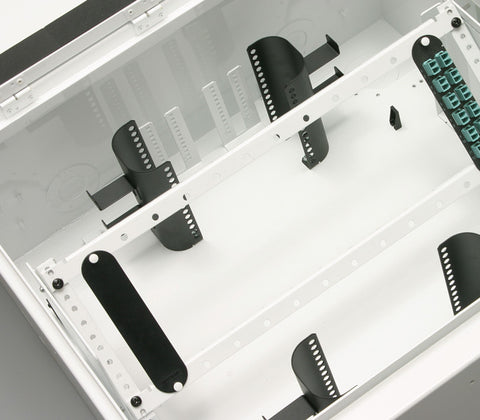

Fiber Zone Box, 4 rack units, holds 12 CCH panels or modules
General Specifications
| Application | Enterprise Networks, Data Center |
|---|---|
| Mounting Type | Wall-Mountable, Ceiling mount, Floor mount |
| Product Type | Wall-Mountable Hardware |
Standards
| Approval and Listings | UL-Listed to the United States and Canadian safety standards, NEMA, 1, 2, 5, 12K rated |
|---|---|
| RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
Design - Hardware
| Housing Type | FZB |
|---|---|
| Housing Color | White |
| Maximum number of Panels per Housing | 12 |
| Panel or Module Type | CCH |
| Splice Tray Options | Accommodates up to (12) 0.2 in or (6) 0.4 in category S, or category R splice trays |
Mechanical Characteristics
| Dimensions (HxWxD) | 54 cm x 54 cm x 21.6 cm (21.25 in x 21.25 in x 8.5 in) |
|---|
Shipping Information
| Units per Delivery | 1/1 |
|---|---|
| Package Contents | Housing; installation guide; label, unit ID; label, port identification for 12 panels; 12 blank panels; 12 tie wraps, 1/8 x 4, white; edge grommet, nylon, 12-in; 32 screws, #6-32 x 0.25-in; 2 Universal Cable Clamp (UCC) Kits with 5 cable inserts; 2 brackets for mounting UCC clamp; 2 fan-out brackets; 4 wall-/floor-mounting brackets; 2 trim plates, floor, FZB-04U; 6 6-32 x .25 Phillips; ground bar EM4250-3550; 2 screws, #8-32 and 2 lock washers, #8 |
| Shipping Weight | 6.8 kg (15 lb ) |
