Part number	PLT1.5I-M109
RoHS Compliancy Status	Compliant

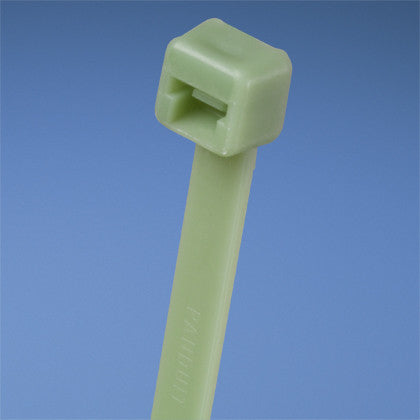

Part Description	Cable Tie, 5.6", Intermediate cross section
Product Type	Cable Ties
Material	Polypropylene
Color	Green
CSA Certified	No
UL Listed (File #E56854)	No
UL Recognized (File #E56854)	No
Length (In.)	5.6
Length (mm)	142
Width (In.)	0.142
Width (mm)	3.6
CE Compliant	Yes
Cross Section	Intermediate
Head Height (In.)	0.180
Head Height (mm)	4.6
Head Width (In.)	0.240
Head Width (mm)	6.1
Locking Style	Locking
Material Flammability Rating	Not Recognized
Max. Bundle Diameter (In.)	1.38
Max. Bundle Diameter (mm)	35
Max. Continuous Use Temperature	239øF (115øC)
Min. Bundle Diameter (In.)	0.06
Min. Bundle Diameter (mm)	1.5
Min. Loop Tensile Strength (Lbs.)	18
Min. Loop Tensile Strength (N)	80
Plenum-Rated	No
Pricing Description	Cable Tie, 5.6"L (142mm), Intermediate, Polypropylene, Green
Thickness (In.)	0.045
Thickness (mm)	1.1
Tool	GTS, GTSL, GS2B, PTS, PPTS, STS2
Tool Setting	3

Features:

• For chemical resistance where high loop tensile strength is not required especially in the presence of hydrochloric acid, salts and bases
• Material requires lowering the tool setting (see package label)
• One-piece construction for consistent performance and reliability
• Lowest threading force of any one-piece cable tie in the industry
• Polypropylene cable ties have a distinctive green color and are used indoors
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation

Product Sheet:

• Spec Sheet
• Technical Drawing
