Part number	PLT1M-M100
RoHS Compliancy Status	Compliant

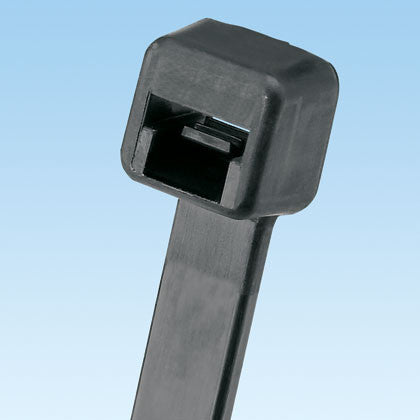

Part Description	Cable Tie, 3.9", Miniature cross section
Product Type	Cable Ties
Material	Weather Resistant Polypropylene
Color	Black
CSA Certified	No
UL Listed (File #E56854)	No
UL Recognized (File #E56854)	No
Length (In.)	3.9
Length (mm)	99
Width (In.)	0.098
Width (mm)	2.5
CE Compliant	Yes
Cross Section	Miniature
Head Height (In.)	0.154
Head Height (mm)	3.9
Head Width (In.)	0.180
Head Width (mm)	4.6
Locking Style	Locking
Material Flammability Rating	HB
Max. Bundle Diameter (In.)	0.87
Max. Bundle Diameter (mm)	22
Max. Continuous Use Temperature	239øF (115øC)
Min. Bundle Diameter (In.)	0.06
Min. Bundle Diameter (mm)	1.5
Min. Loop Tensile Strength (Lbs.)	11
Min. Loop Tensile Strength (N)	49
Plenum-Rated	No
Pricing Description	Cable Tie, 3.9"L (99mm), Miniature, Weather Resistant Polypropylene, Black
Thickness (In.)	0.043
Thickness (mm)	1.1
Tool	GTS, GTSL, GS2B, PTS, PPTS, STS2
Tool Setting	2

Features:

• For chemical resistance where high loop tensile strength is not required especially in the presence of hydrochloric acid, salts and bases
• Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
• Material requires lowering the tool setting (see package label)
• One-piece construction for consistent performance and reliability
• Lowest threading force of any one-piece cable tie in the industry
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation

Product Sheet:

• Spec Sheet
• Technical Drawing
