Part number	PLT2H-TL109
RoHS Compliancy Status	Compliant

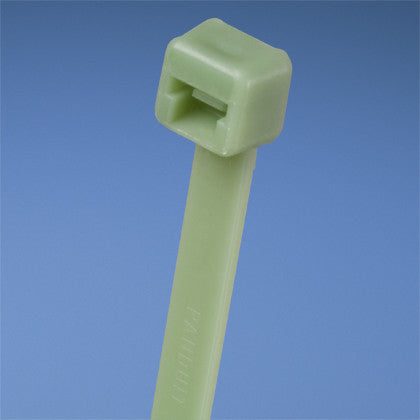

Part Description	Cable Tie, 8.1", Light-Heavy cross section
Product Type	Cable Ties
Material	Polypropylene
Color	Green
CSA Certified	No
UL Listed (File #E56854)	No
UL Recognized (File #E56854)	No
Length (In.)	8.1
Length (mm)	206
Width (In.)	0.300
Width (mm)	7.6
CE Compliant	Yes
Cross Section	Light-Heavy
Head Height (In.)	0.290
Head Height (mm)	7.4
Head Width (In.)	0.480
Head Width (mm)	12.2
Locking Style	Locking
Material Flammability Rating	Not Recognized
Max. Bundle Diameter (In.)	2.00
Max. Bundle Diameter (mm)	51
Max. Continuous Use Temperature	239øF (115øC)
Min. Bundle Diameter (In.)	0.19
Min. Bundle Diameter (mm)	4.8
Min. Loop Tensile Strength (Lbs.)	50
Min. Loop Tensile Strength (N)	222
Plenum-Rated	No
Pricing Description	Cable Tie, 8.1"L (206mm), Light-Heavy, Polypropylene, Green
Thickness (In.)	0.075
Thickness (mm)	1.9
Tool	GTH, GS4H, GS4EH, PTH, STH2, ST3EH

Features:

• For chemical resistance where high loop tensile strength is not required especially in the presence of hydrochloric acid, salts and bases
• Material requires lowering the tool setting (see package label)
• One-piece construction for consistent performance and reliability
• Lowest threading force of any one-piece cable tie in the industry
• Polypropylene cable ties have a distinctive green color and are used indoors
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation

Product Sheet:

• Spec Sheet
• Technical Drawing
