Part number	PLT3H-L86
RoHS Compliancy Status	Compliant

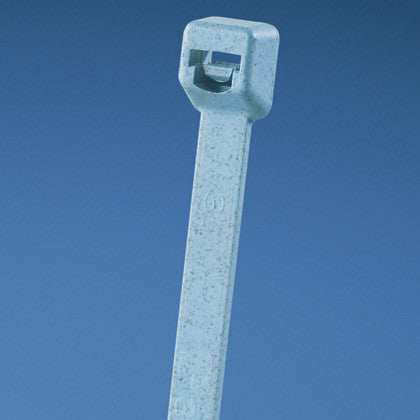

Part Description	Cable Tie, 11.1"L (282mm), Metal Detectable Nylon, Light-Heavy cross section, Light Blue
Product Type	Cable Ties
Material	Metal Impregnated Nylon 6.6
Color	Light Blue
CSA Certified	No
UL Listed (File #E56854)	No
UL Recognized (File #E56854)	No
Length (In.)	11.1
Length (mm)	282
Width (In.)	0.300
Width (mm)	7.6
CE Compliant	No
Cross Section	Light-Heavy
Head Height (In.)	0.360
Head Height (mm)	9.1
Head Width (In.)	0.480
Head Width (mm)	12.2
Locking Style	Locking
Material Flammability Rating	HB
Max. Bundle Diameter (In.)	3.00
Max. Bundle Diameter (mm)	76
Max. Continuous Use Temperature	185øF (85øC)
Min. Bundle Diameter (In.)	0.25
Min. Bundle Diameter (mm)	6.4
Min. Loop Tensile Strength (Lbs.)	120
Min. Loop Tensile Strength (N)	120
Plenum-Rated	No
Pricing Description	Cable Tie, 11.1" (282mm), Light-Heavy, Metal Detectable Nylon, Light Blue
Thickness (In.)	.075
Thickness (mm)	1.9
Tool	GTH, GS4H, GS4EH, STH2, ST3EH

Features:

• Ideal for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures
• Ideal for use in nuclear power facilities and chemical processing plants
• Low smoke density and excellent flammability rating of UL 94V-0
• Distinctive aqua blue color
• TEFZEL cable tie mounts also available
• For indoor or outdoor use TEFZEL is a registered trademark of E. I. du Pont de Nemours and Company.

Product Sheet:

• Technical Drawing
