S6000 Series Palm OTDR

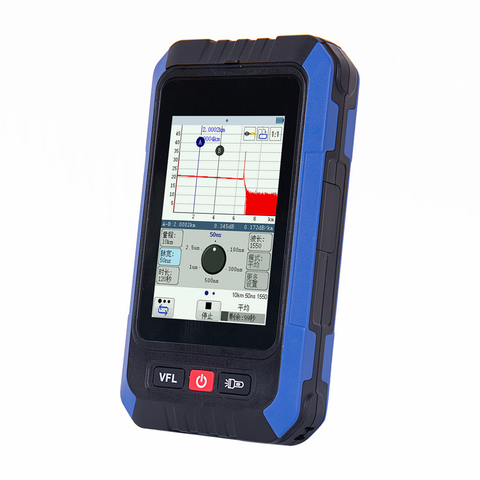

Palm OTDR S6000 Series
All-in-One Touchscreen OTDR for Field Fiber Testing
The Palm OTDR S6000 Series is a multifunctional, handheld fiber optic tester designed for quick, accurate, and convenient diagnostics in any environment. Integrating OTDR, optical power meter (OPM), light source, visual fault locator (VFL), event map, and optional network cable testing, this compact unit delivers everything a field technician needs in one rugged device.
Its 3.5-inch capacitive touchscreen supports gesture control and real-time curve scaling, while its high-speed OS ensures responsive operation. With multiple models supporting single or dual wavelengths, optical signal testing, and macro bending detection, the S6000 Series is ideal for both short-distance and long-haul single-mode fiber (SMF) networks.
Download Product Spec Sheet:
Key Features
-
✅ Multifunctional: Combines OTDR, VFL, OPM, LS, and event map in one device
-
✅ 3.5” capacitive touch screen with intuitive gesture control
-
✅ Real-time parameter adjustment during OTDR testing
-
✅ Dual wavelength models available (S6000D) for macro-bend detection
-
✅ Visualized event mapping for instant fault location
-
✅ Save & export test reports as
.sorand.jpgfiles -
✅ USB data transfer and remote firmware upgrade supported
-
✅ Rugged and lightweight — ideal for harsh outdoor environments
-
✅ >10 hours battery life for full-day field work
-
✅ Interchangeable FC/SC/ST/LC flange
Model Comparison
| Model | Wavelength(s) | Dynamic Range (dB) | Optical Signal Testing | Notes |
|---|---|---|---|---|
| S6000 | 1550 nm | 20 | No | Compact base model |
| S6000D | 1310/1550 nm | 22/20 | No | Dual-wavelength for bend-sensitive testing |
| S6000S-15 | 1550 nm | 20 | Yes | Supports testing with live optical signals |
| S6000K-16 | 1610 nm | 20 | Yes | Live signal test & 1610nm support |
OTDR Specifications
| Item | Details |
|---|---|
| Pulse Widths | 5 ns – 20 μs (10 steps) |
| Event Dead Zone | 2 m |
| Attenuation Dead Zone | 8 m |
| Distance Range | 0.5 – 80 km |
| Loss Accuracy | ±0.05 dB |
| Fiber Type | Single-mode (SMF) |
| Storage Capacity | 500 traces |
| Display | 3.5" capacitive touchscreen |
| Battery Life | >10 hours continuous use |
| Weight | 300 g |
| Size | 145 × 78 × 30 mm |
| Standard Connector | FC/UPC (SC/ST/LC optional) |
Optional Modules
🔍 Visual Fault Locator (VFL)
-
Wavelength: 650 ± 20 nm
-
Output Power: >10 mW
-
Connector: FC/UPC
💡 Optical Light Source (Optional)
-
Wavelengths: 1310/1550 nm
-
Output Power: ≥ -7 dBm
⚡ Optical Power Meter (Optional)
| Model | Detection Range | Calibrated Wavelengths |
|---|---|---|
| A | -70 ~ +6 dBm | 850, 980, 1300, 1310, 1490, 1550, 1625 nm |
| B | -50 ~ +26 dBm | Same as above |
