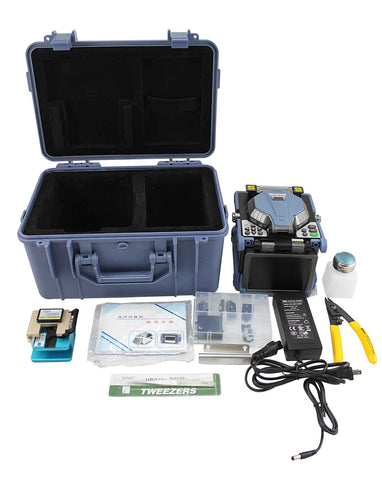

Optical Fusion Splicer(with holders)

KWIKPATH Part No.: SAT-17C

  • $ 5,935.38 or



SAT-17C

Optical fusion splicer(with with holders)

Applicable Fibers

SM, MM, DS, NZDS

Applicable Fiber Diameter

Cladding 80~150µm, coating 100~1000µm

Fiber cleaved length

8~16mm

Average Splice Loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Return Loss

-60dB

Work mode

Full automatic , semi automatic, manual

Splicing/Heating time

10 /36 seconds

Alignment mode

cladding alignment, core alignment, manual alignment

Magnification times

X and Y simultaneously 155X; X or Y respectively 310X

Monitor

5 inch LCD, 640*480

Tension Test

2.0N (200gf)Standard

Applicable protection sleeve

60mm, 40mm, 20mm, and a series of micro sleeves

Interface

Standard USB

Electrode life

2500 discharges

Battery ability

Typical 250 times

Battery charging time

3-hour ( machine can work while charging)

Battery life

300~500 cycles

Dimensions

169mmL, 152mmW,155mm H

Weight

2.4kgs without battery, 2.9kgs with battery
