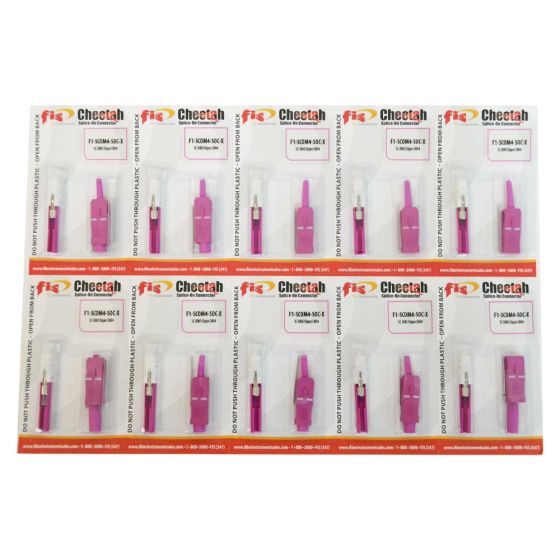

Cheetah SC/PC Splice-On Connector – OM4 50µm Multimode 900µm (10 Pack, Magenta)
SKU: F1SCOM4SOC10

The Cheetah SC/PC Splice-On Connector for OM4 multimode fiber offers a fast, efficient field-termination solution with no need for splice trays or additional enclosures. Pre-cleaved and factory-terminated, it dramatically reduces install time and space requirements while maintaining top-tier performance.

Download product spec sheet

Key Features:

• Connector Type: SC/PC

• Fiber Type: OM4 50µm multimode

• Buffer Size: 900µm (magenta boot)

• Pre-cleaved and pre-polished for quick installation

• Includes 27mm fusion splice sleeve and integrated strain relief boot

• Zirconia ceramic ferrule for precise fiber alignment

• Fusion compatible with most major splicer brands: FIS, AFL, Sumitomo, OFS, and more

• Return Loss (typical):

  • PC: ≥ -30 dB

  • UPC: ≥ -55 dB

  • APC: ≥ -65 dB

• No splice tray or chip required — ideal for compact installations

• Pack Size: 10 connectors

This connector is perfect for high-speed OM4 networks in enterprise, telecom, and data center environments where quick, space-saving, and reliable terminations are critical.
