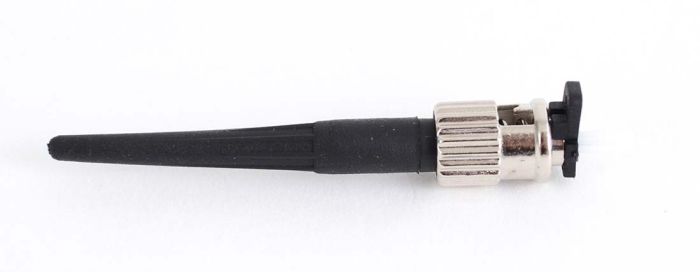

Cheetah ST PC Splice-On Connector, Multimode OM2 50µm, 900µm, Black – 10 ack

The Cheetah ST PC Splice-On Connector is engineered for fast, reliable, and space-saving terminations. Designed for OM2 multimode fiber (50µm core), this factory pre-polished, pre-cleaved pigtail allows for rapid preparation, splicing, and installation. Its 27mm fusion splice sleeve is cleverly concealed within a custom strain relief boot, eliminating the need for splice trays or extra cabinet space. Compatible with leading fusion splicers like FIS, AFL, Sumitomo, and OFS, the Cheetah makes field termination simple and repeatable.

Key Features:

• Connector type: ST PC

• Fiber type: Multimode OM2, 50/125µm

• Jacket size: 900µm, black

• Polish type: PC (Physical Contact)

• Format: 10-pack

Product Highlights:

• Pre-cleaved and factory-terminated for fastest prep and install

• 27mm fusion splice sleeve concealed in strain relief boot

• No need for splice trays, chips, or excess cabinet space

• Precision fit for industry-standard fusion splicers with removable fiber holders

• Made with zirconia ferrules for superior alignment and durability

• Meets or exceeds industry return loss specs:

  • APC: -65 dB

  • UPC: -55 dB

  • PC: -30 dB

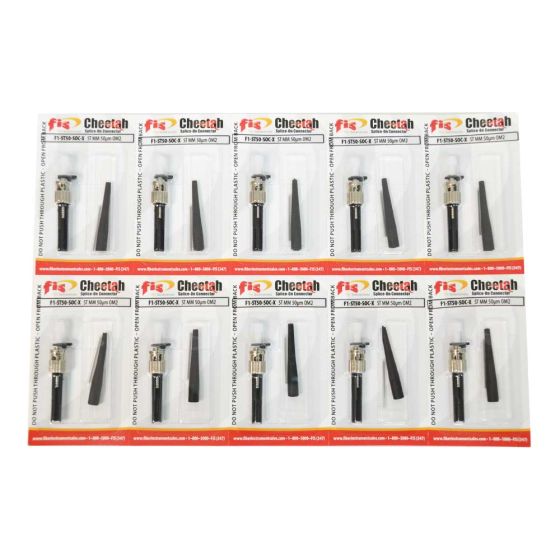

Package Includes:

• 10x Cheetah ST PC Splice-On Connectors

• 10x 27mm splice sleeves

• 10x strain relief boots

Ideal for high-density installations or rapid field deployments where speed and quality matter.
