Features:

• Strongest low profile material in the industry; thin and flexible to quickly wrap around bundles
• Cost effective for general purpose bundling
• Adjustable, releasable and reusable
• Large continuous roll you can cut to size - Panduit cutter included with TTS-35RX0
• Handy, reusable plastic case (TTS20) keeps material clean
• Complementary mounts availableNote: Minimum 2" overlap required to achieve loop tensile rating

Part number	TTS-20R0
RoHS Compliancy Status	Compliant

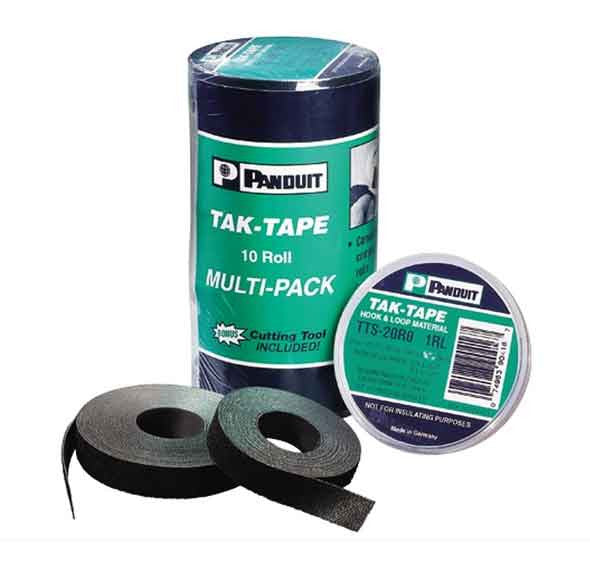

Part Description	Hook & Loop 20' Roll, Standard cross section
Material	Nylon Loop, Polypropylene Hook
Color	Black
CSA Certified	No
UL Listed (File #E56854)	No
UL Recognized (File #E56854)	No
Length (ft.)	20.0
Length (In.)	240.0
Length (m)	6.1
Length (mm)	6096.00
Width (In.)	0.75
Width (mm)	19.1
CE Compliant	No
Cross Section	Standard
Locking Style	Hook & Loop
Max. Bundle Diameter (In.)	Various
Max. Bundle Diameter (mm)	Various
Min. Bundle Diameter (In.)	0.63
Min. Bundle Diameter (mm)	16.0
Min. Loop Tensile Strength (Lbs.)	40
Min. Loop Tensile Strength (N)	178
Plenum-Rated	No
Pricing Description	Hook & Loop Roll, Low Profile, 20'L (6.1m), .75"W (19.1mm), Black
Temperature Range	-22øF ? 194øF
Thickness (In.)	0.035
Thickness (mm)	0.9

Product Sheet:

• Spec Sheet
