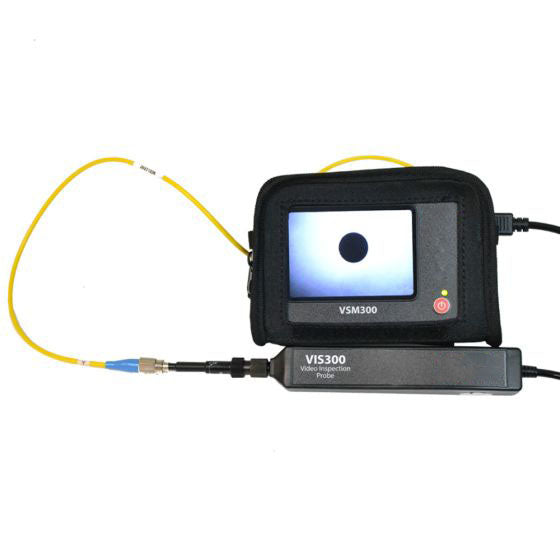

VSM300 Video Scope Monitor with VIS300 Inspection Probe (SKU VSM300)

The VSM300 is a powerful fiber connector inspection system featuring the VIS300 Video Inspection Probe and a 3.5" LCD monitor. Designed for field professionals, it offers crisp, magnified endface images and an intuitive external focus mechanism for fast, accurate inspection — no thumbwheel required. Simply rotate the probe body ¼ to ½ turn for precise focusing.

The VSM300 provides a wide 630µm x 440µm field of view with 120x magnification and uses coaxial lighting for optimal image clarity. Its advanced lithium-ion battery delivers 8 to 10 hours of operation and recharges fully in under 3 hours. The system includes universal 2.5mm and 1.25mm adapter tips and is compatible with a wide selection of connector-specific adapters for SC, FC, LC, ST, MPO/MTP, and more.

Everything comes packed in a soft carrying case with extra tips, protective pouch, and charger — making it an ideal on-the-go inspection solution.

Download Product Spec Sheet:

• VSM300 video scope monitor with inspection scope spec sheet (PDF)

Key Features:

• Manual focus via full-probe rotation — no thumbwheel needed

• Wide field of view: 630µm x 440µm

• High magnification: 120x with 0.75µm resolution

• 3.5" LCD screen for standalone operation

• Battery life: 8–10 hours; Recharge time: <3 hours

• Coaxial lighting for precise endface illumination

• Includes: VIS300 probe, VSM300 monitor, 2.5mm & 1.25mm universal adapter tips

• Dimensions:

  • Monitor: 4.75” x 3.5” x 1.25”

  • Probe: 7” x 1” x 0.75”

  • Weight: 1.2 lbs

Optional Adapter Tips Available:

• SC / SC-APC / FC / FC-APC / LC / LC-APC

• MPO/MTP (Straight & APC)

• OptiTap

• 60° angled variants

• Universal APC tips (1.25mm, 2.5mm)
