Overview

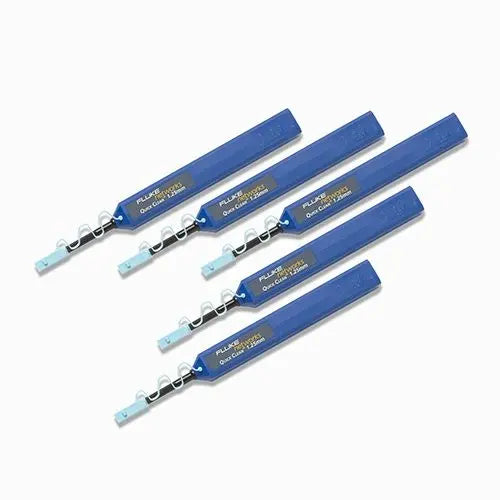

The Fluke Networks QuickClean-1.25-5P connector cleaner is a specialized tool engineered for the maintenance of LC and MU fiber optic connectors. It is designed to efficiently remove common contaminants such as skin oils, salt water, alcohol residue, and road dust that can degrade signal quality during fiber optic installation and maintenance.
Constructed with antistatic materials, each cleaner is crush-resistant to over 250N and drop-tested to 1.5 meters for high durability in field environments. The device utilizes a dry cleaning strand that provides a gentle, effective sweep to remove debris without damaging the delicate connector end face. A built-in tip extender allows for cleaning access up to 208 mm.
Key Features
-
Antistatic Construction
Molded with static-dissipative materials to protect sensitive fiber components from ESD damage. -
High Durability
Crush-resistant housing rated to over 250N ensures protection in demanding field conditions. -
Drop Tested
Tested to withstand a 1.5-meter drop, providing long-term reliability for field technicians. -
Effective Cleaning Strand
Uses a dry cleaning strand to safely sweep away contaminants without the need for solvents. -
Extendable Cleaning Tip
Integrated tip extender reaches up to 208 mm, ideal for deep-access ports or panels. -
Audible Confirmation
Features a tactile and audible click sound to confirm the cleaning cycle is successfully completed.
Applications
- LC and MU connector end-face cleaning
- Fiber optic network installation
- Data center maintenance
- Field maintenance of patch cords and bulkhead adapters
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Fluke Networks |
| Model | QUICKCLEAN-1.25 |
| Part Number | 044X540 |
| Compatibility | LC, MU Connectors |
| Capacity | 525+ cleanings per unit |
| Cleaner Diameter | 1.25mm |
| Dimensions | 0.69" x 0.69" x 7.05" |
| Package Quantity | 5 |
Frequently Asked Questions
What connectors are compatible with the QuickClean-1.25?
The tool is specifically designed for 1.25mm ferrule connectors, primarily LC and MU types.
Does this tool require cleaning solvents?
No, it uses a dry, lint-free microfiber cleaning strand that effectively removes contaminants without the need for extra chemicals.
How many cleans can I get from one tool?
Each individual unit is rated to perform over 525 cleaning cycles.
Is the cleaning tip extendable?
Yes, it features an extender that allows the tip to reach up to 208 mm, facilitating access into dense patch panels.
How do I know when the cleaning is done?
The tool provides a distinct click sound when the cleaning cycle has successfully finished.
