Overview

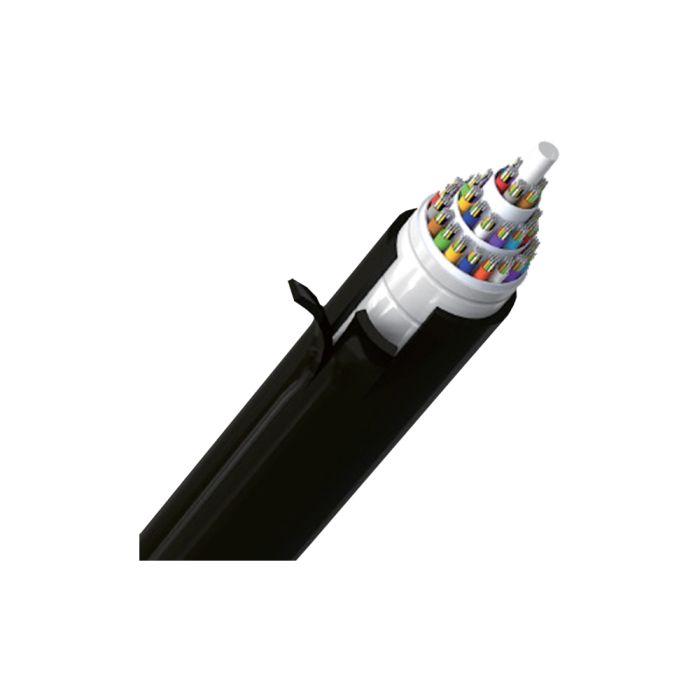

The 144 Fiber OSP Peelable Steel Tape Armored Cable is a high-density, single-jacket, single-armored solution designed specifically for campus backbones and direct-buried outside plant (OSP) installations. This cable features a robust, gel-free loose tube design that provides reliable transmission performance for voice, data, video, and imaging applications.
Engineered for environmental durability, the cable includes corrugated steel tape armor to deliver excellent crush and rodent resistance. The gel-free construction utilizes water-swellable materials, facilitating simple, clean, and efficient cable access. Additionally, the cable features a medium-density polyethylene jacket and a high-strength ripcord under the armor for easy, installation-friendly stripping.
Key Features
-

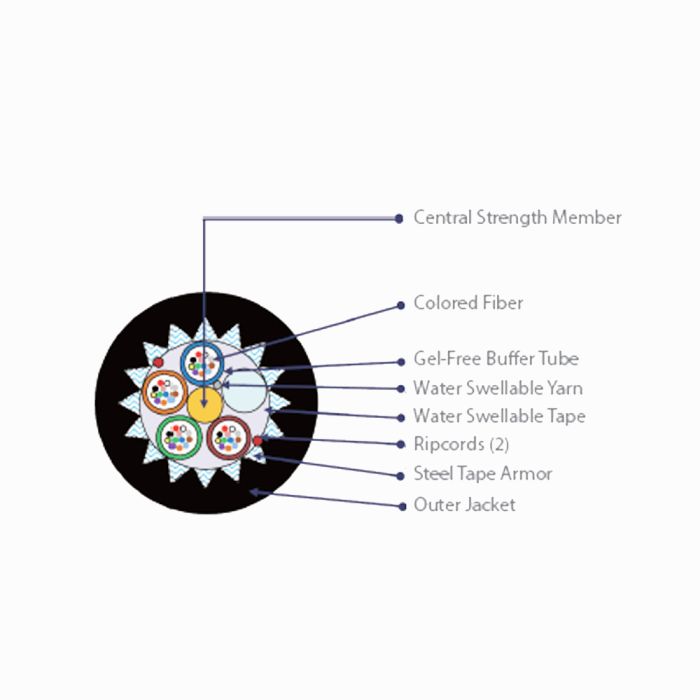

Gel-Free Water Blocking
Uses water-swellable materials to prevent moisture ingress without the mess associated with traditional gel-filled cables. -
Corrugated Steel Tape Armor
Provides enhanced protection against mechanical crush and damage from rodents in direct-buried environments. -
Peelable Jacket Design
The medium-density polyethylene (MDPE) jacket is constructed for quick and efficient stripping during installation. -
High-Strength Ripcord
Located beneath the armor layer, this feature allows for easy removal of the armored sheath. -
SZ-Stranded Loose Tube
Isolates the optical fibers from environmental rigors and mechanical stresses during deployment. -
Mid-Span Access
Designed to permit easy mid-span entry, reducing the time required for network expansion.
Applications
- Campus backbones
- Direct-buried installations
- Voice, data, and video networking
- Imaging systems
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | S09OSP144NPEBL-ST |
| Fiber Count | 144 |
| Fiber Type | G657A1 |
| Armor Type | Peelable Corrugated Steel Tape |
| Jacket Material | Medium Density Polyethylene (MDPE) |
| Water Blocking | Gel-Free (Dry) |
Frequently Asked Questions
What does the G657A1 fiber designation mean?
G657A1 is an ITU-T recommendation for bend-insensitive singlemode fiber, offering improved performance in tight spaces and around sharp bends compared to standard G652D fiber.
Is this cable suitable for direct burial?
Yes, the inclusion of corrugated steel tape armor provides the necessary crush and rodent resistance required for direct-buried OSP applications.
Does the cable contain messy filling gels?
No, it uses a gel-free design with water-swellable yarns and tapes, making the installation and splicing process cleaner and faster.
Can I perform mid-span access on this cable?
Yes, the loose tube construction is designed to allow for easy mid-span access without damaging the individual fibers.
How is the armor removed?
The cable includes a high-strength ripcord located under the steel tape, which allows for efficient stripping of the armor layer.
