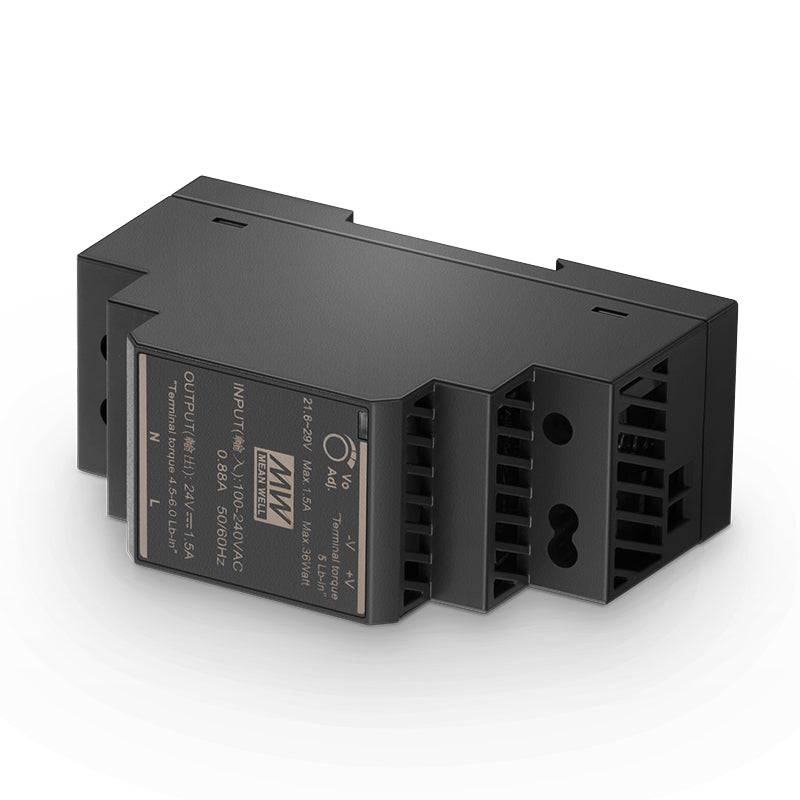

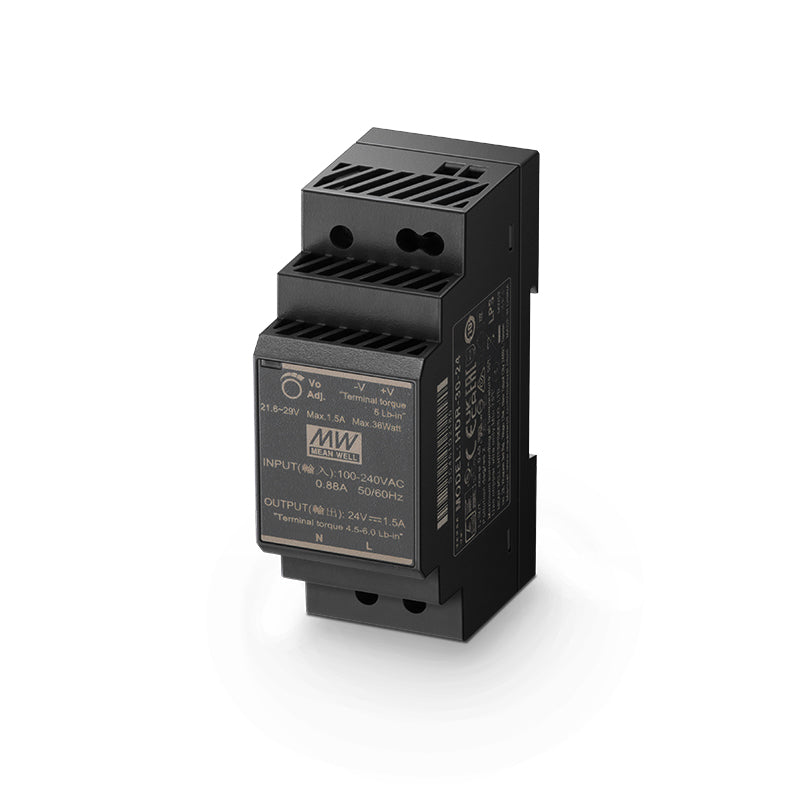

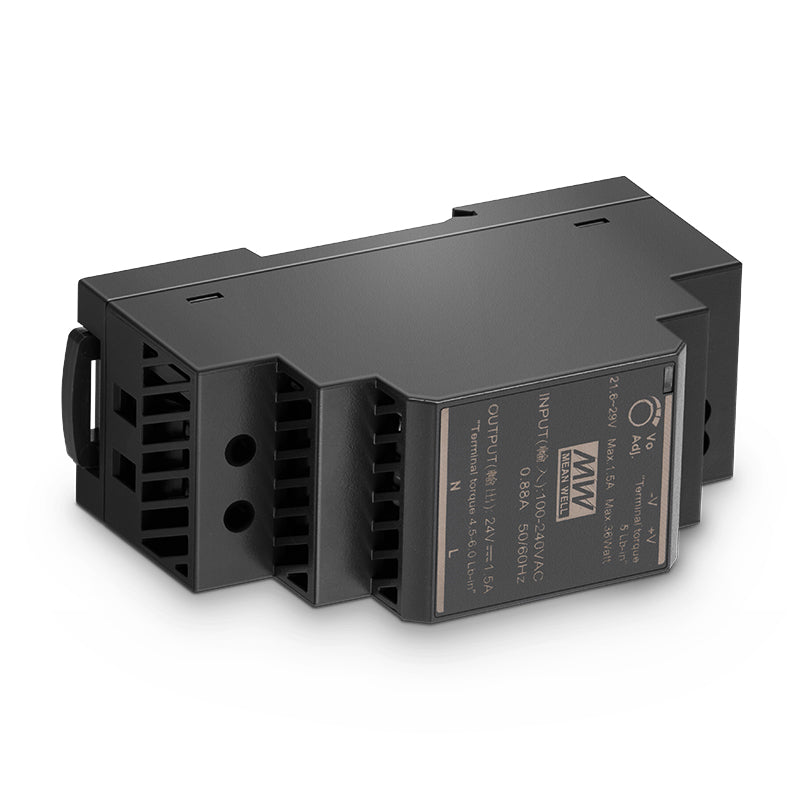

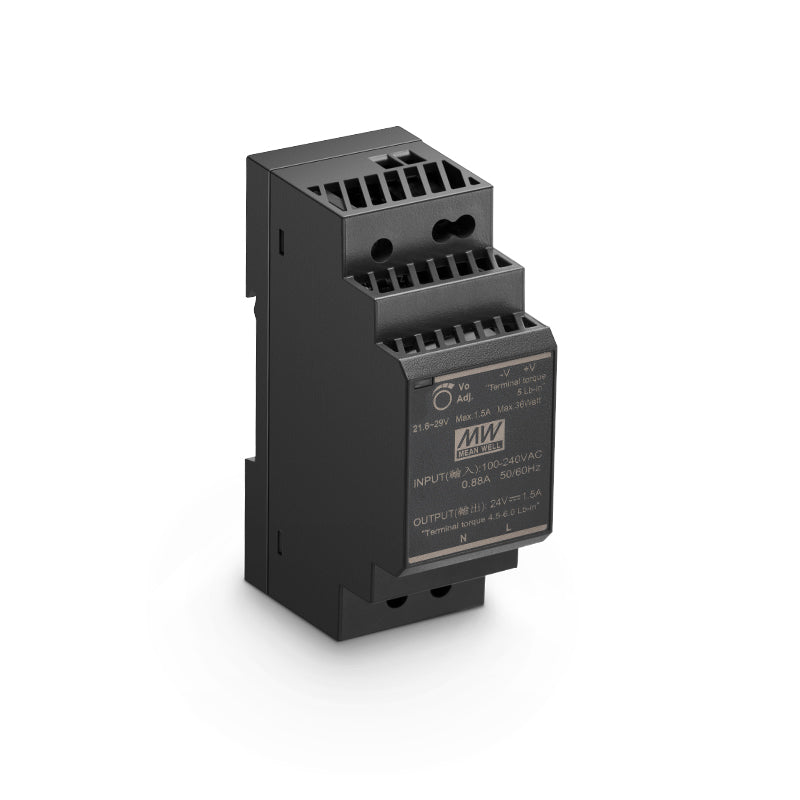

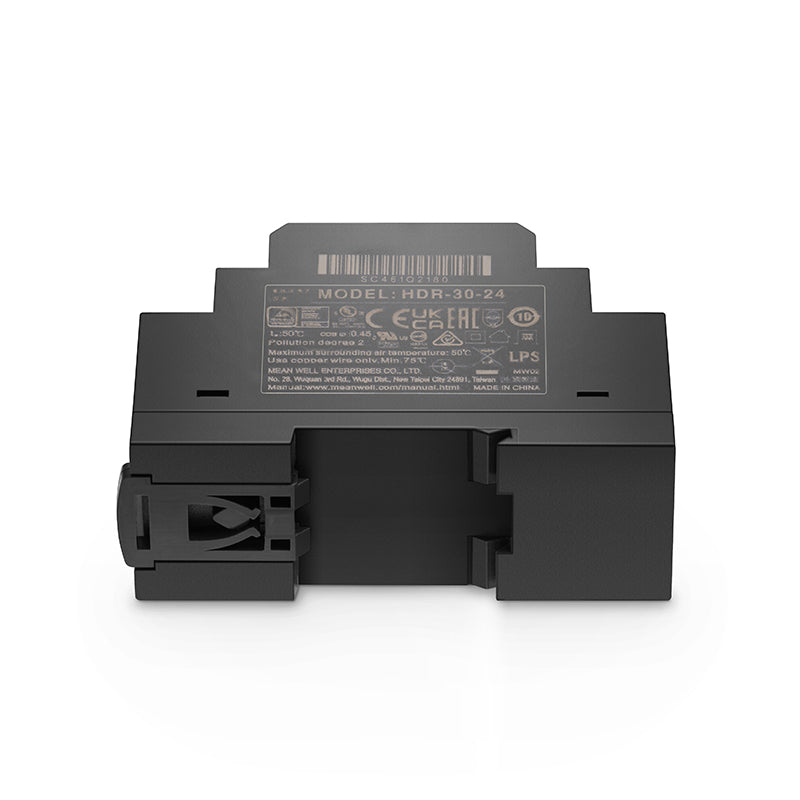

30W 24VDC Ultra Slim Step-Shaped DIN Rail Industria Power Supply

The FS-HDR-30-24 ultra slim power supply features a compact 35mm (2SU) width, making it ideal for TS-35/7.5 or 15 DIN rail installation. The plastic housing is designed to prevent users from electric hazards effectively. Cooling by natural air convection, FS-HDR-30-24 can operate in ambient temperatures ranging from -30°C to 70°C.

FS-HDR-30-24 supplies up to 30 W (24V, 1.5A) of power to industrial PoE equipment such as switches, media converters and can be widely used in harsh environments such as household control systems, building automation, industrial control systems, factory automation, and electro-mechanical apparatus.

Note: The FS-HDR-30-24 AC-DC power supply module is compatible with FS-IES3220-4T2F, FS-IES3110-8TF-R, FS-IES3110-8TF, FS-IES3110-16TF, FS-IES3100-8TF, FS-IES2100-5FE and FS-IES2100-8FE switches.

Specifications

• Input Voltage Range: 85 to 264VAC (277VAC operational); 120 to 370VDC(390VD operational)
• Input Current: 0.88A/115VAC; 0.48A/230VAC

• Output DC Voltage: 24V

• Output Power: 30W

• Overload: 105 to 160% rated output power

• Efficiency: 89%

• Operating Humidity: 20% to 90%

• Operating Temperature: -30 to 70°C(-22 to 158°F)

• Installation: DIN rail TS-35/7.5 or 15

• Dimensions (W x H x D): 35x 90x 54.5mm(1.38" x 3.54" x 2.15")
• EN55032 Class: B
• Packaging Material: Plastic
• Installation: DIN rail TS-35/7.5 or 15

Product Highlights

• Ultra Slim Design to Save Cabinet Space

• -30 to 70°C Operating Temperature for Industrial Environments

• Short Circuit, Overload, Over Voltage, Over Temperature Quadruple Protection

• Comply with Isolation Class II and Over Voltage Category III

• Mountable on DIN Rail TS-35/7.5 or 15

Ultra Slim Design Suitable for Industrial Environments
The ultra slim design allows for installation in tight spaces, making it ideal for DIN rail TS-35 / 7.5 or 15 installation.

Supports up to 30W of Power for Industrial Devices
It provides sufficient 30W output power to industrial equipment, such as industrial Ethernet switches, PLC, and sensor.
