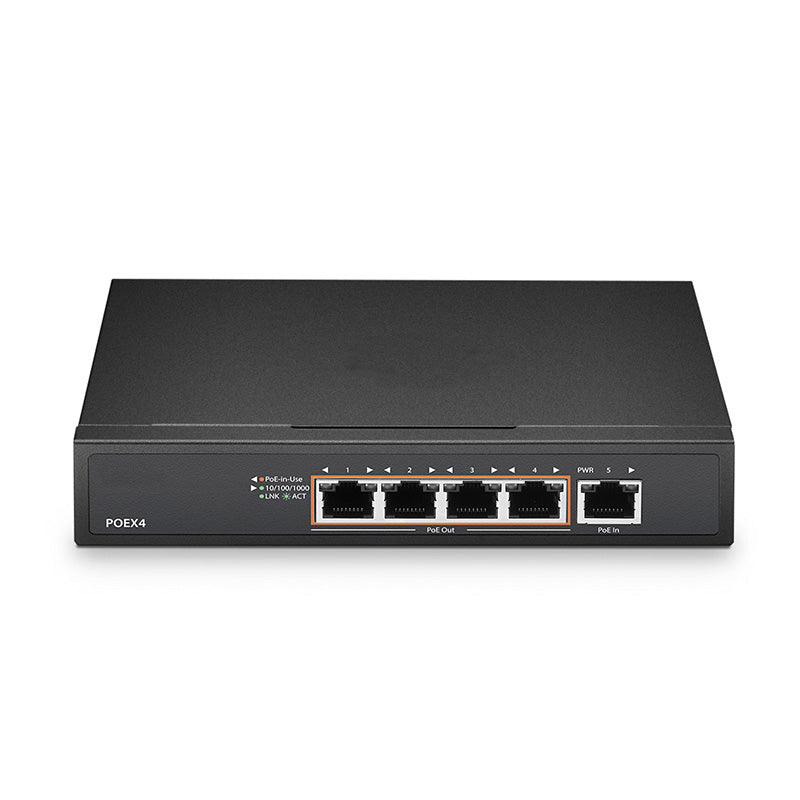

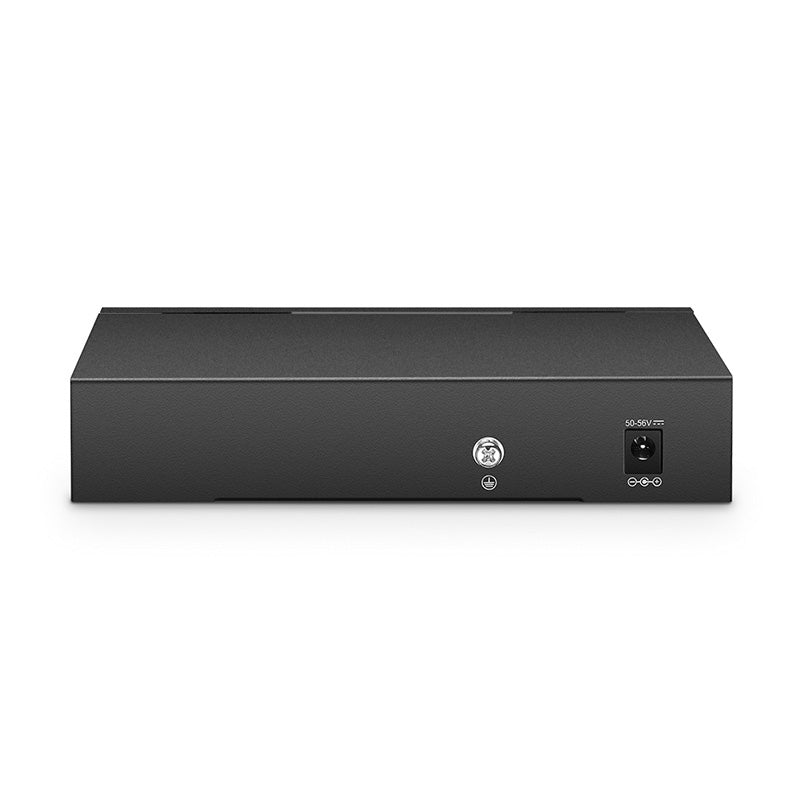

4-Ports 10/100/1000M Gigabit PoE+ Extender, 1 x 802.3bt PoE++ Input to 4 x 802.3af/at Output

FS-POEX4 is a 1-port 95W 802.3bt PoE++ to 4-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE applications.

The FS-POEX4 can obtain a maximum of 95-watt PoE power from IEEE 802.3bt PoE input port and supplies a maximum of 65-watt PoE power budget to four PoE output ports, extending the simultaneous transmission distance of both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to 200 meters.

Thus, the POEX4 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Specifications

• Input RJ45 Ports: 10/100/1000 Mbps PoE++ Copper Port (RJ-45)

• Output RJ45 Ports: 10/100/1000 Mbps PoE+ Copper Port  (RJ-45)

• Input Voltage: 50V-56V DC

• Output Voltage: 50-55V DC

• PoE Power: Max. 95 Watts Input; Max. 32 Watts Output

• Network Cable: Cat5e (or above) UTP

• PoE Power Budget: 65 Watts (Max.) @IEEE 802.3bt PoE++ Type 4 PSE Input; 32
• Watts (Max.) @IEEE 802.3at PoE+ Input

• Data Transmission Distance: Up to 100m

• Switch Fabric: 10Gbps

• Switch Throughput: 7.44Mpps @64 bytes

• Operating Temperature: 0 to 50°C (0 to 122°F)

• Storage Temperature: -10 to 70°C (14 to 158°F)

• Operating Humidity: 5% to 95% (non-condensing)

• Storage Humidity: 5% to 95% (non-condensing)

• Dimensions (Hx Wx D): 66.14"x36.61"x12.60" (168x93x32mm)

• Installation: Desktop/Wall mountable

Product Highlights

• Up to 95W PoE Power via 802.3bt PoE++ Input

• Supports 65W PoE Budget for Four PoE+ Ports

• No External Power Cable Installation Required

• Wall-mountable, Plug-and-Play Installation

• Forwards Both Ethernet Data and PoE Power to Remote Device

• Network a PoE Device Located up to 100 Meters (328 ft.) Away
• PoE Power: Max. 95 Watts Input; Max. 32 Watts Output
• PoE Power Budget: 65 Watts (Max.) @IEEE 802.3bt PoE++ Type 4 PSE Input; 32 Watts (Max.) @IEEE 802.3at PoE+ Input
• Switch Fabric: 10Gbps
• Operating Temperature: 0 to 50°C (0 to 122°F)
