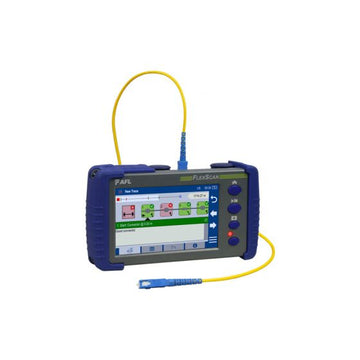

AFL FS300325 SMPO 850/1300 MM 1310/1550 SM Source PM WiFi
The AFL FS300-325-SMPO SMF MPO Test Kit offers a Quad OTDR with Bluetooth/WiFi, Wave ID optical light source, power meter, and SMF MPO switch. It can be used for testing multimode 850/1300nm, single mode 1310/1550nm, point-to-point networks and FTTH PONs/Passive Optical LANs (POLANs).
The OTDR features SmartAuto multi-pulse acquisition, 37dB dynamic range, best-in-class 20m PON dead zone, 5" 800x480 touchscreen display, 4GB internal memory, plus icon-based LinkMap and Trace views.
The bi-directional single mode multi-fiber switch converts a single port tester into a multi-fiber tester. A fiber ring connects FlexScan to Switch, and a launch cable will connect Switch to a MPO-terminated multi-fiber network.
Features
- Test SMF
- SmartAuto detects closely spaced events without sacrificing range
- LinkMap icons clearly identify event type & pass/fail status
- Print-to-PDF plus internal & external data storage
Applications
- OTDR and Insertion Loss test & reporting
- Fast, accurate pt-to-pt & PON verification & troubleshooting
- Locate faults exceeding industry or user pass/fail thresholds
- Visually pinpoint location of macro-bends or breaks
Download Product Specification Sheet
The kit includes FS300, SMF MFS Multi-Fiber Switch, SMF 150 m fiber ring (SC/APC to SC/APC), SMF MPO launch cable (unpinned) to user-selected male (pinned) or female (unpinned) MPO connector, FlexReports Advanced, One-Click Cleaners (single-fiber and MPO), carry case that allows FlexScan, MFS Switch, and fiber rings to be connected, operated in the carry case and remain configured during transport.
