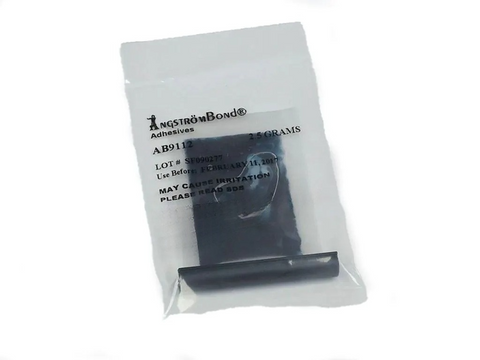

ÅngströmBond® AB9112 MIL-SPEC Fiber Optic Epoxy, Room Temperature & Heat Cure (2.5g)
ÅngströmBond® AB9112 Room Temperature Cure, 2-Part Epoxy, 2.5 Gram Packet
SHELF LIFE GUARANTEE: MINIMUM 6 MONTHS AT TIME OF SHIPPING
The ÅngströmBond® 9112 MIL-SPEC Epoxy is a blue, room temperature and heat curing fiber optic connector epoxy with a long working life. It has been tested and qualified to MIL-A-24792A for fiber optic terminations.
Additional Features:
- Bonds glass to metal, ceramic or plastic.
- Very high glass transition temperature when heat cured.
- Excellent choice for use in single and multimode connectors due to being very low stress.
Physical Properties:
- Mixed Viscosity @ 25°C: 2000 cPs
- Glass Transition Temperature, Tg: 93.5°C (degree celsius); Tg: 200.3°F (degree Fahrenheit)
- Shore D Hardness: 82
- Service Temperature Range: -60°C to 130°C; -76°F to 266°F
Handling Characteristics:
- Working Life: 40 Minutes
- Minimum Cure Schedule:
- @25°C - 12-18 Hours
- @65°C - 30-60 Minutes
- @90°C - 15 Minutes
- @100°C - 5 Minutes
See Datasheet for additional properties, storage and handling notes
