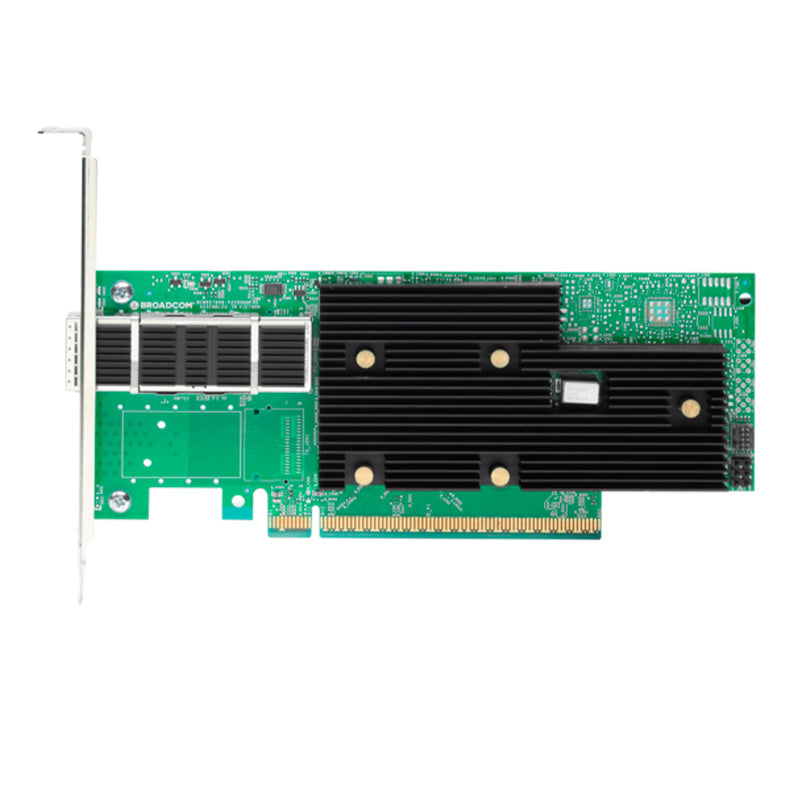

Broadcom® BCM957608-P1400GDF00 Ethernet Network Interface Card, 400G Single-Port QSFP112-DD, PCIe 5.0 x 16, Standard & Low Profile

The Broadcom® BCM957608-P1400GDF00 is a single-port 400 Gb/s PCI Express 5.0 x16 Network Interface Card that supports QSFP112-DD optical modules, DAC and AOC cables. The adapter supports fourth-generation, standards-based RDMA over Converged Ethernet (RoCE) with hardware-based congestion control.

Broadcom’s RoCE congestion control delivers the lowest latency in real-life scenarios and dramatically reduces RoCE complexity deployment at scale. Based on Broadcom’s scalable 400G Ethernet controller architecture, the adapter is designed to build highly scalable, feature-rich networking solutions in servers for cloud, high-performance computing and storage applications.

Specifications

• Brand: Broadcom

• Technology: Ethernet

• Ports: Single-Port QSFP112-DD

• Supported Ethernet Speeds: 400/200/100/50/25GbE

• Host Interface: PCIe 5.0 x16

• ASIC: BCM57608

• Link Rate: 32.0 GT/s

• Connector Type: QSFP112-DD

• Port Configuration: 1x 400/200/100/50/25Gb/s

• NPAR: Yes

• Form Factor: PCIe Low Profile, Half Length

• OS Support: Red Hat Enterprise Linux, SUSE® Linux Enterprise Server, Ubuntu,
• DPDK

• RDMA: Yes

• RoCEv2: Yes

• TruFlow™: Yes

• TruManage™: Yes

• Operating Temperature: 0 to 55 °C (32 to 131 °F)

• Storage Temperature: -40 to 70 °C (-40 to 158 °F)

Product Highlights

• PCIe 5.0 x16 Host Interface, Standards-compliant QSFP112-DD NIC

• Single-port 400/200/100/50/25Gb/s

• High-speed SerDes Capable of 100/50G PAM4 and 25G NRZ

• Large-scale RoCE Deployment with SARA and DCN

• Peer Memory Direct for Low-latency Inter-GPU Communication

Product Spotlights

Networking and Virtualization

• RoCEv2
• Multi-Queue, NetQueue, and VMQ
• Single root I/O virtualization
• VF isolation and protection
• VXLAN, GRE, NVGRE, Geneve, and IP-in-IP
• Tunnel-aware stateless offloads
• Edge Virtual Bridging (EVB)
• Stateless TCP offloads: IP/TCP/ UDP checksum, LSO, LRO, GRO, T SS, RSS, aRFS, interrupt coalescing

TruFlow™ Flow Processing

• Flexible matching key
• NAT and NAPT
• Tunnel encap/decap
• Custom tunnel processing
• Connection tracking
• Flow aging
• Sampling and mirroring
• Rate-limiting and metering
• Flow-based statistics
• Network traffic hairpin

Manageability Features

• Network controller sideband interface (NC-SI)
• Management Component Transport Protocol (MCTP)
• MCTP over SMBus/I2C
• MCTP over PCIe VDM
• NC-SI over MCTP
• Platform Level Data Model (PLDM): base, monitoring/control, and firmware update
• PLDM over MCTP
• I2C support for device control and configuration

Connectivity Solutions

End-to-End RDMA over Converged Ethernet (RoCE) Solution
The broadcom nic supports RoCEv2 to enable low-latency, high-throughput workloads, while ensuring scalable, reliable, and easily deployable RoCE solutions.

Broadcom BCM57608 Maximizes Network Performance
The Broadcom BCM57608 Ethernet controller delivers 400Gb/s throughput with low power consumption and superior thermal efficiency, enhancing connectivity for cloud, enterprise IT, and data centers.

Advanced Networking and Security
It supports SR-IOV and VirtIO hardware virtualization, optimizing performance, offloading cloud networking workloads, freeing CPU cores, and reducing total cost of ownership.

Unlock Seamless Network Performance with Compatibility Testing
The universal interface seamlessly integrates with mainstream server motherboards and supports multiple operating systems, reducing costs while safeguarding investment flexibility and future scalability.
