Corning 797902QD120001M LC-LC MM Uniboot OM4 50 Duplex Jumper, 1m
Corning 797902QD120001M LC-LC MM Uniboot OM4 50 Duplex Jumper, 1m

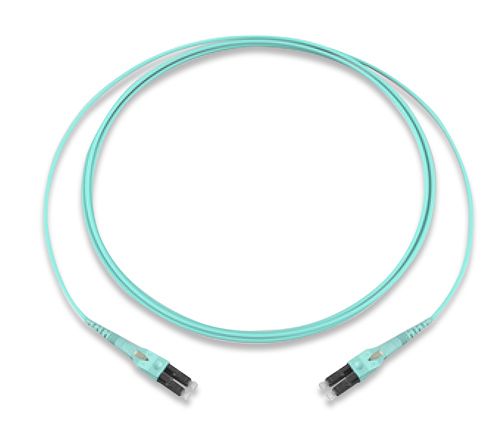

The Corning 797902QD120001M Reverse Polarity Uniboot Duplex Cable Assembly includes a multimode patch cable (1m length) in an aqua jacket and two LC uniboot connectors. Riser rated, the 2-fiber multimode jumper has a 2mm outer diameter and 10mm minimum bend radius. The tight-buffered cable is designed to carry both fibers and can be converted easily from a TIA-568 A-B polarity to a TIA-568 A-A polarity, without exposing the fibers. The high-quality 50µm OM4 fiber and factory-tested connectors ensure a reliable performance.
Applications
Data Center, Vertical Riser, General Building Applications
Features
- Factory-terminated solutions: Provide consistent quality, ensure system performance and reduce installation time
- Low insertion loss performance: Allows for more connections in a link when deploying a TIA-942-compliant system
Specification Description
Cable Assembly Type: Two Fiber
Cable Type: Interconnect
Fiber Category: 50 µm MM (OM4)
Flame Rating: Riser (OFNR)
Fiber Count (cable): 2
Outer Jacket Color: Aqua
Boot Color (Conn A): Aqua
Connector Type (Conn A): LC Uniboot
Ferrule Material (Conn A): Ceramic
Housing Color (Conn A): Black
Housing Material (Conn A): Composite
Boot Color (Conn B): Aqua
Connector Type (Conn B): LC Uniboot
Ferrule Material (Conn B): Ceramic
Housing Color (Conn B): Black
Housing Material (Conn B): Composite
Nominal Outer Diameter (Metric-mm): 2 mm
Nominal Outer Diameter (US): 0.08 in
Minimum Leg Bend Radius: 10 mm
Tech Info
Free of hazardous substances according to RoHS 2002/95/EG
Specifications:
| Connector Type | LC - LC |
|---|---|
| Fiber Type | OM4 |
| Length | 1 M | 3.28 FT. |
| Number of Fibers | 2 FIBER |
| Type | PATCH CORDS |
| UNSPSC Code | 26121650 |
