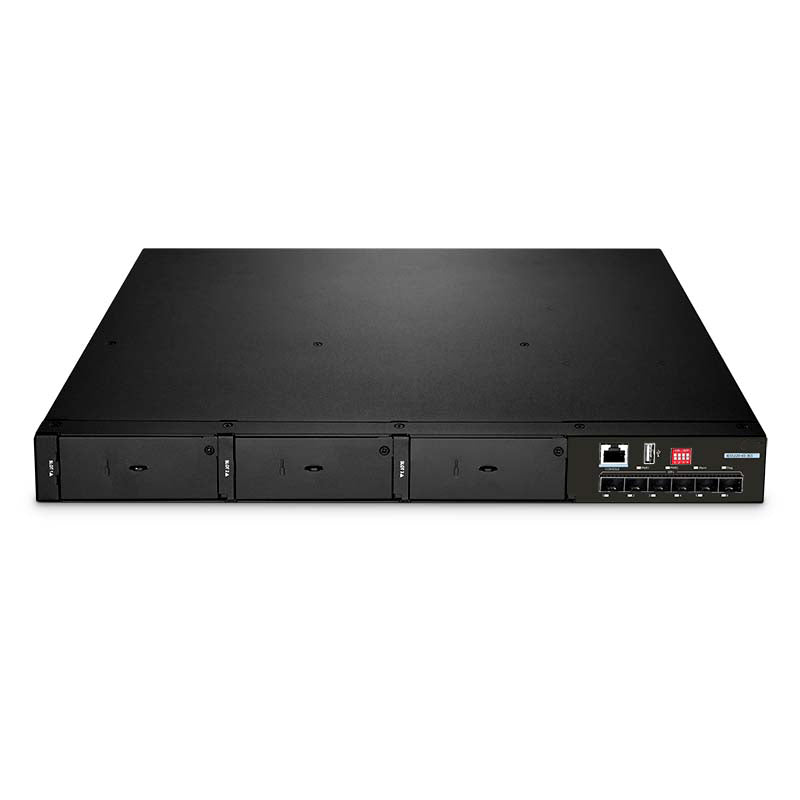

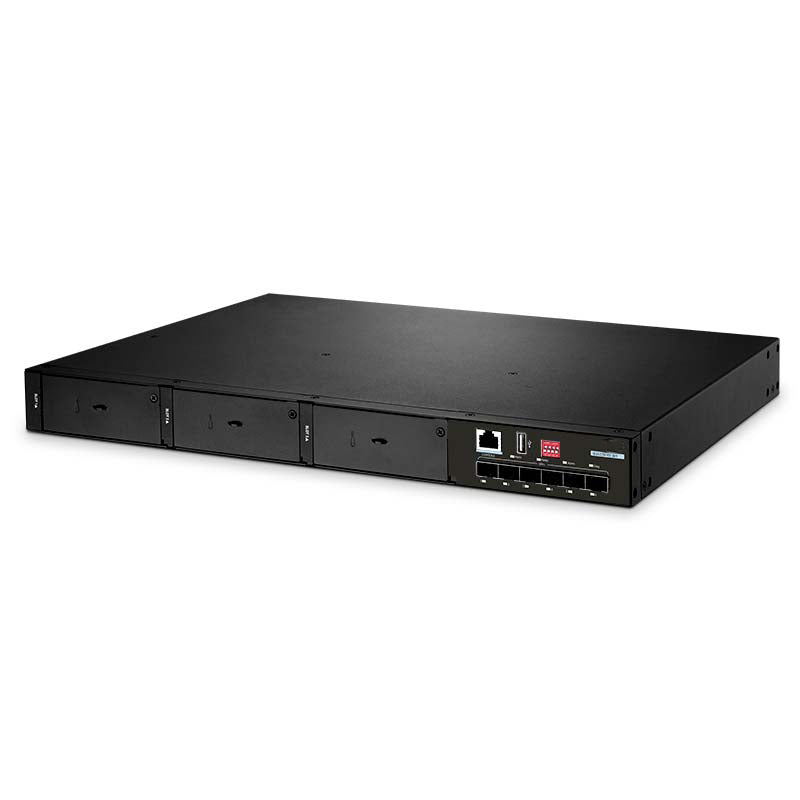

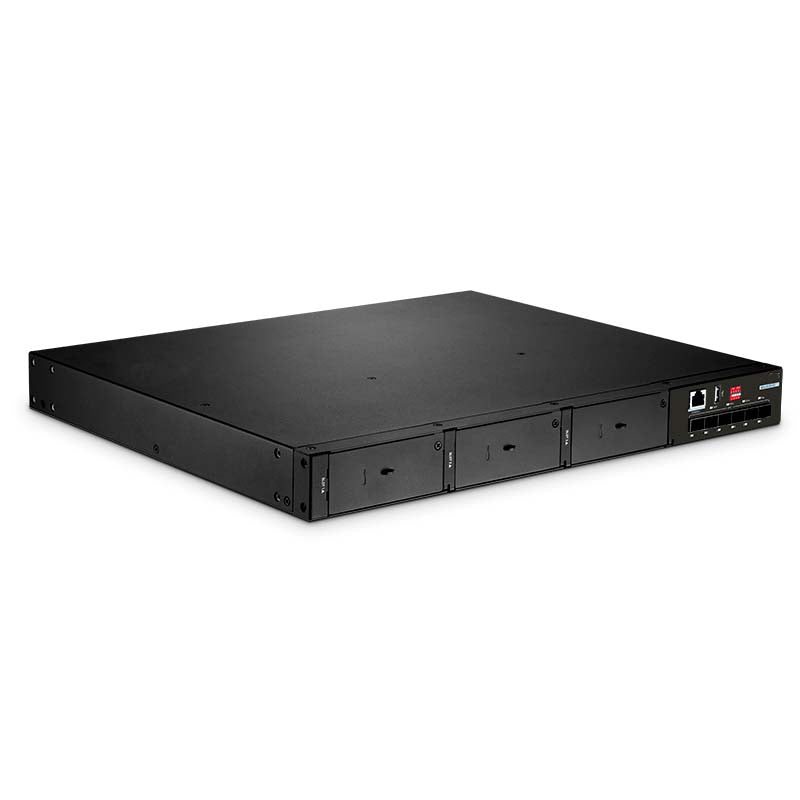

Customized FS-IES5220-6S-3ES, 3-Slot Modular Ethernet L3 Managed Industrial Switch, 6 x 1/10Gb SFP+, -40 to 70°C Operating Temperature

The FS-IES5220-6S-3ES industrial modular switch features 6 x 1/10Gb SFP+ ports, expandable to up to 30 ports, optimized for size and power consumption for a wide range of industrial and high-density connection needs. Equipped with an IP40-rated metal enclosure, it can operate within a wide temperature range of -40 to 70°C.

This switch is ideal for large-scale industrial automation backbone networks requiring precise and high bandwidth, especially in environments with extreme temperatures.

As a Layer 3 managed industrial switch, it supports multiple ring protection and redundancy protocols, including ERPS, MRP, RRPP, and VRRP, ensuring fast convergence in under 10ms and compatibility with industrial protocols like Profinet, Ethernet/IP(CIP), Modbus and CC-Link to ensure seamless communication between devices.

This facilitates rapid integration with existing industrial networks while reducing deployment complexity and maintenance costs.

Note:
FS-IES5220-8T-E, FS-IES5220-4T4FP-E and FS-IES5220-8F-E can be shared with all three slots.

FS-IES5220-4S-E is only applicable to the third slot.

Specifications

• Ports: 6 x 1/10Gb SFP+

• Switch Chip: Marvell Cygnus

• Number of Expansion Module: 3

• MAC Address: up to 64K, recommand 32K

• Stackability: up to 9 units

• Input Voltage: AC input 100~40VAC, 50/60HZ

• Switching Capacity: 64 bytes packet: 240G; ≥128 bytes packet: 336G

• Max. Power Consumption: Single AC: 68W; Dual AC: 72W

• Max. Ports Number: 30

• Number of VLANS: 4k

• Operating Temperature: -40 to 70°C (-40 to 158°F)

• Operating Humidity: 5% to 95% (Non-condensing)

• Packet Buffer: 4M

• Latency: GE: <5μs; 10GE: <3μs

• Enclosure: IP40

• Installation: Rack Mount

• Dimensions (HxWxD): 1.72''x17.32''x14.17'' (43.6x440x360mm)

• Management: CLI, WEB, SNMP, Openflow, Netconf

Product Highlights

• Scalable Modular Design, Expandable to up to 30 Ports

• Dual Redundant Power Inputs and Fanless Design

• Support Transparent Transmission for PROFINET, EtherNet/IP (CIP), Modbus TCP

• Support SNMP v1/v2/v3 / CLI / Web / TELNET / FTP / SSH2.0 / SSL

• Support IEEE 1588v2 (PTP OC, TC and BC Mode) and SyncE

Software Spotlights

IPv4/IPv6 Dual-Stack

• Support IPv4/IPv6 static routing
• Support RIP/RIPng, OSPF
• Support VRRP
• Support BFD FOR VRRP
• Support BFD FOR IPV4
• Support BFD FOR IPv6

Multicast Efficiency

• Support IGMP v1/v2/v3
• Support IPv4 IGMP snooping
• Support IPv6 MLD snooping
• Support Multicast VLAN
• Support MVRP (Alternatives to GVRP/GARP)

Industrial Ethernet Protocols

• Support transparent transmission for PROFINET, EtherNet/IP and Modbus TCP
• Supports PTP SyncE

Layer 2 Ring Protection Protocol

• Support STP/RSTP/MSTP
• Support STP root protection
• Support BPDU protection
• Supports G.8032 ERPS with a self-healing time of 20ms
• Supports RRPP with a self-healing time of 20ms
• Supports IEC 62439-2 MRP with a self-healing time of less than 10ms

Error-Free Network Configuration

• Supports remote configuration via Telnet
• Supports configuration through a console port
• Supports SNMP
• Supports RMON for alarms, events and historical data
• Supports SDN/OpenFlow, compliant with the OpenFlow 1.3 standard
• Supports cloud-based management
• Supports web-based network management
• Supports system logging
• Supports hierarchical alarms
• Supports IRF2 stacking technology
• Supports NTP
• Supports power and temperature alarms
• Support NETCONF

Secure and Simplified Access

• Supports hierarchical user management and password protection
• Supports AAA authentication
• Supports Radius authentication
• Supports SSH 2.0
• Supports port isolation
• Supports port security features
• Supports MAC address authentication
• Supports HTTPS
• Supports PKI (Public Key Infrastructure).
• Supports attack source tracing for ARP packets.
• Supports IP Source Guard (including both IPv4 and IPv6)
• Supports DAI, protection against ARP attacks and DDoS
• Supports Secure Boot
• Supports packet filtering functions
• Supports flexible queuing scheduling algorithms

Connectivity Solutions

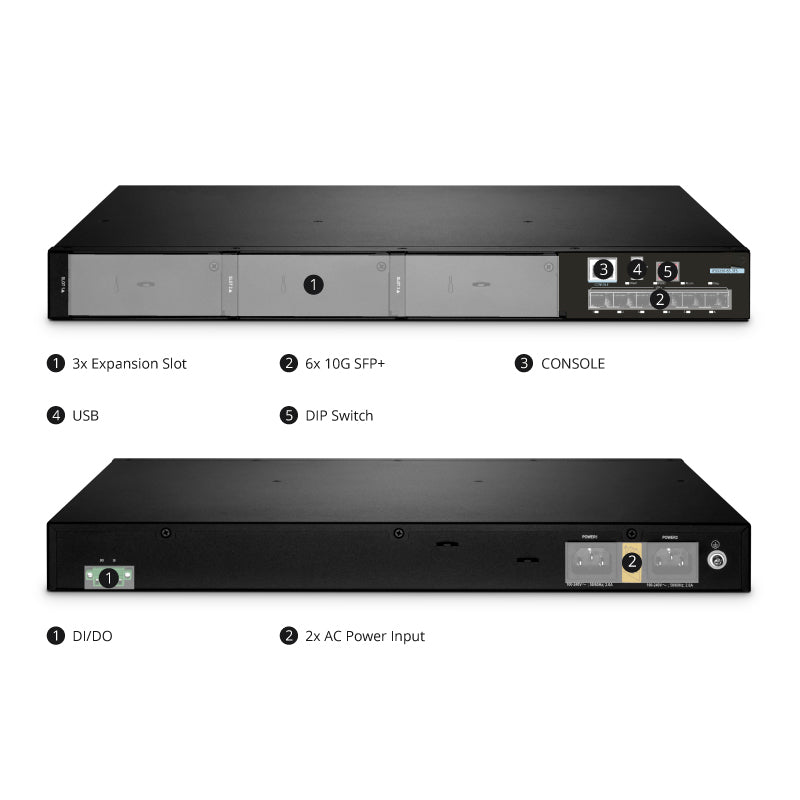

Flexible Port Combination with Expansion Module
The modular switches can seamlessly integrate various port types in a single chassis to offer greater flexibility and opportunity for expansion.

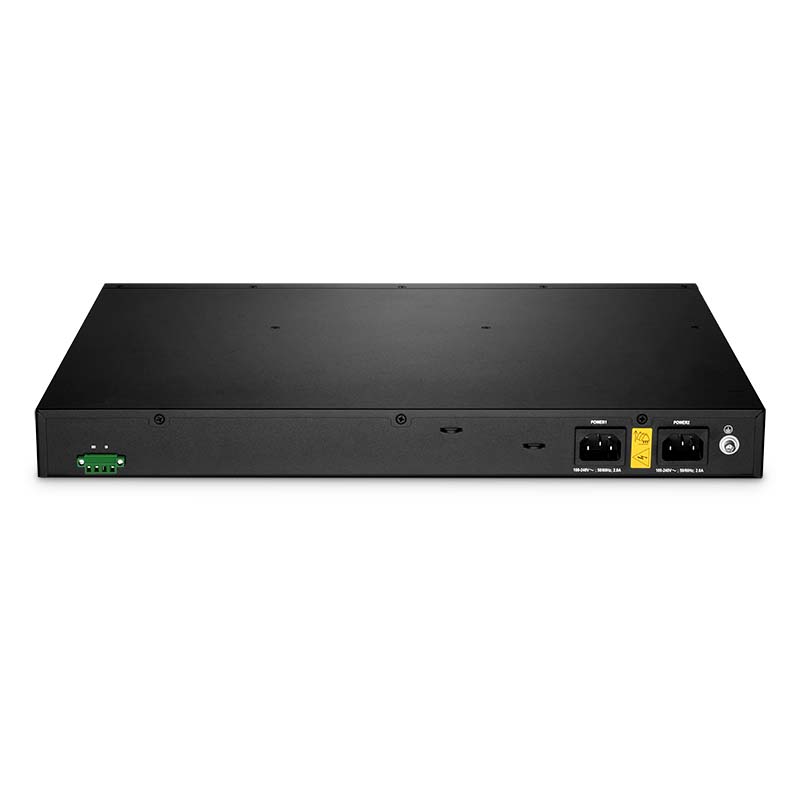

Dual Redundant Power Supplies and Fansless Design
1+1 Redundant AC PSUs ensure the continuous normal operation of switch.

IP40 Aluminum Metal Housing Suitable for Industrial Environments
FS-IES5220-6S-3ES features an IP40 metal enclosure, conformal-coated board, and lightning/surge protection for durability in diverse outdoor conditions.

Stacking Simplifies Network Configuration
Stacking virtualization technology virtualizes multiple physical devices into a logical device, simplifying network configuration and structure, eliminating loops, and improving reliability.

MRP (Media Redundancy Protocol) Enables Failover Protection in Sub-10ms
The MRP protocol eliminates ring network loops, prevents broadcast storms, and it restores network functionality within 10ms in case of link failure or disconnection.

PTP (Precision Time Protocol) Provides Sub-microsecond Accuracy
PTP enables switches to deliver synchronization with a higher level of accuracy than NTP, it is ideal for telecom and Carrier Ethernet applications.

Support BFD for Millisecond-level Link Failure Detection
By interacting with upper-layer routing protocols, it enables rapid route convergence, ensuring business continuity.

Support IPv4/IPv6 Dual-Stack to Run IPv4 and IPv6 in Parallel
Dual-stack allows the current hybrid environment encompassing both IPv4 and IPv6, as well as the future migration to IPv6.
