EXFO MPO Multimode Tier-1certification kit
EXFO MPO Multimode Tier-1 Certification Kit
Fast. Accurate. Complete Tier-1 MPO Testing.
The EXFO MPO Multimode Tier-1 Certification Kit delivers unmatched speed and precision for certifying MPO-12 multimode fiber links in data centers, central offices, and headends. Designed for high-density environments, it performs dual-wavelength insertion loss and polarity validation in just 1 second, streamlining Tier-1 testing workflows like never before.

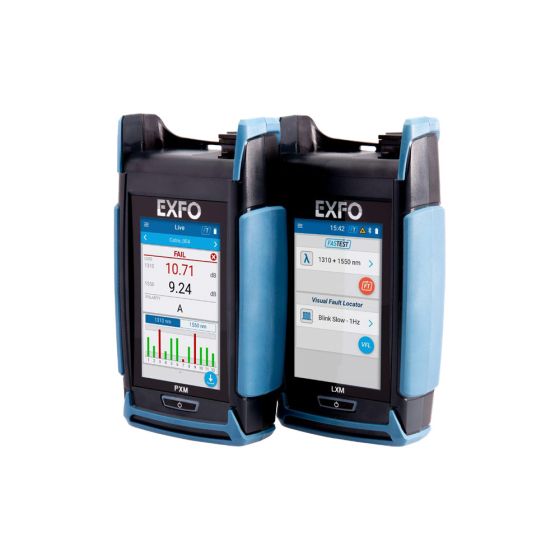

This complete solution includes the PXM multi-fiber power meter, LXM multimode light source (850/1300 nm), MPO-12 test jumpers, and a rugged soft carrying case. A built-in in-line visual fault locator (VFL) and onboard certification engine with dynamic loss calculator provide immediate results in the field. The contactless connector and native MPO-12 interface eliminate extra adapters, while the 4-inch color touchscreen simplifies operation.
Download Product Spec Sheet:
Key Features
-
✅ Tier-1 certification in 1 second (insertion loss & polarity at 2 wavelengths)
-
✅ Dual-wavelength light source (850/1300 nm)
-
✅ PXM contactless multi-fiber power meter with color touchscreen
-
✅ Inline VFL for live fiber tracing on LXM module
-
✅ Up to 25 km length measurement capability
-
✅ Dynamic loss calculator & certification to industry standards
-
✅ MPO-12 native interface – no fan-outs or adapters needed
-
✅ Results consolidated on a single page for streamlined reporting
-
✅ 3-year calibration and warranty interval
Kit Components
-
PXM – Multi-fiber power meter with 4” color touchscreen
-
LXM – Multimode light source (850/1300 nm)
-
MPO-12-SM-TJ-KIT1 – MPO-12 multimode test jumper kit
-
GP-10-061 – Medium soft carrying case
Applications
-
📡 Data centers
-
🏢 Central offices
-
📺 Headends
