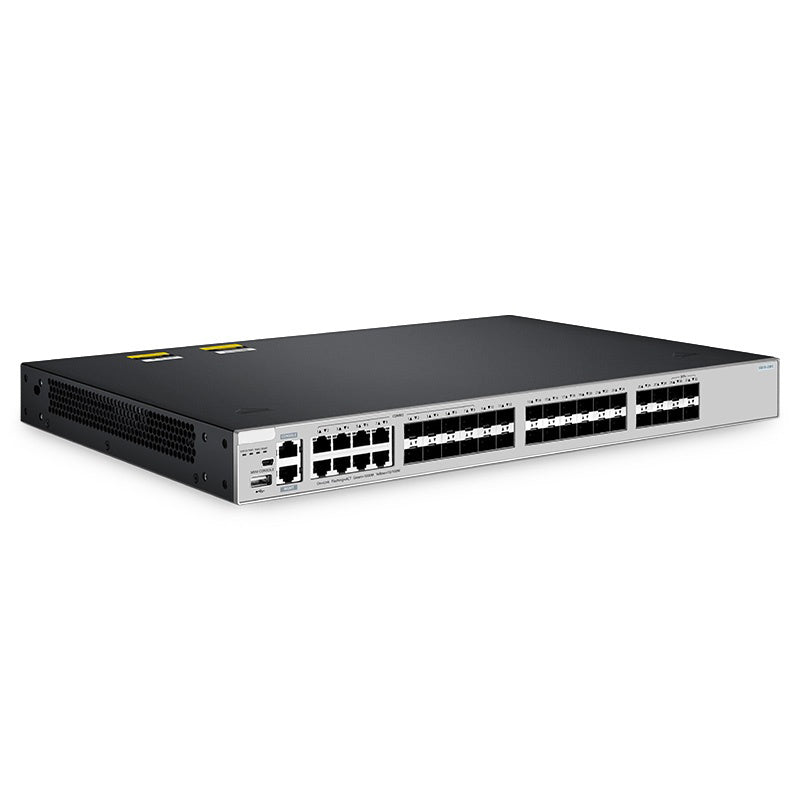

FC-S5810-28FS, 28-Port Gigabit Ethernet L3 Switch, 28 x 1Gb SFP, with 4 x 10Gb SFP+ Uplinks and 8 x 1G RJ45/SFP Combo Ports, Stackable Switch, Broadcom Chip

The FS-S5810-28FS is a next-generation multiservice switch with 28x 1G SFP downlinks and 4x 10G SFP+ uplinks, supporting stacking of up to 8 switches of S5810 series for seamless interconnection and unified management.

Powered by advanced Broadcom chips, it delivers 136 Gbps switching capacity and 102 Mpps forwarding rate. Featuring redundant hot-swappable power supplies and variable-speed axial fans ensures superior performance and reliability.

FS-S5810-28FS is managed by the Airware Cloud management platform, which combines instant actions with centralized visibility to simplify switch provisioning, configuring, and troubleshooting. This ensures a much better experience for connected devices and reduces each branch's IT labor costs.

With simplified management and various switching functionality, the S5810 series provides a high-performance, cost-effective solution for access layer deployments in campuses, SMB networks, branch offices, and distributed sites.

Featuring redundant hot-swappable power supplies and variable-speed axial fans ensures superior performance and reliability.

Specifications

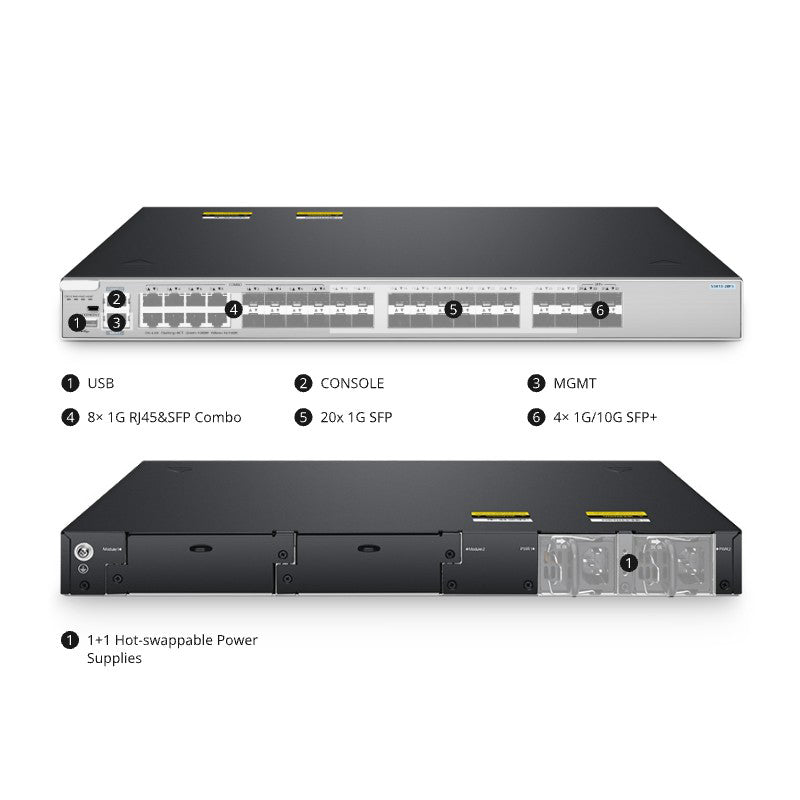

• Ports: 28x 1G SFP, 8x 1G RJ45/SFP Combo | 4x 1G/10G SFP+

• Switching Capacity: 136 Gbps

• Switch Chip: Broadcom BCM56342

• Forwarding Rate:102 Mpps

• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• Packet Buffer: 4 MB

• Fans: 3 (2+1 Redundancy) Built-in, Left-to-Right

• Jumbo Frame: 9K

• Dimensions (HxWxD): 1.73''x17.32''x11.81'' (44x440x300 mm)

• MTBF: >200,000 Hours

• Weight: 9.26 lbs (4.2 kg)

• MAC Address: 64K

• Input Voltage: 100-240V AC, 50-60 Hz

• IPv4/IPv6 Routes: 12K/6K

• Input Current: 2 A

• Number of VLANs: 4K

• Max. Power Consumption: 55 W

• DRAM: 1 GB

• Operating Temperature: 0 to 50ºC (32 to 122°F)

• Flash Memory: 512 MB
• Broadcom BCM56342 Chip, Scalability with 8-unit Stacking

• 1+1 Hot-swappable Power Supplies and 2+1 Smart Fans

• Support OSPF, VRRP, MPLS, LACP, DHCP Server etc.

• Support Airware Cloud/WEB/CLI/SNMP/SSH for Flexible Operation

• Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security

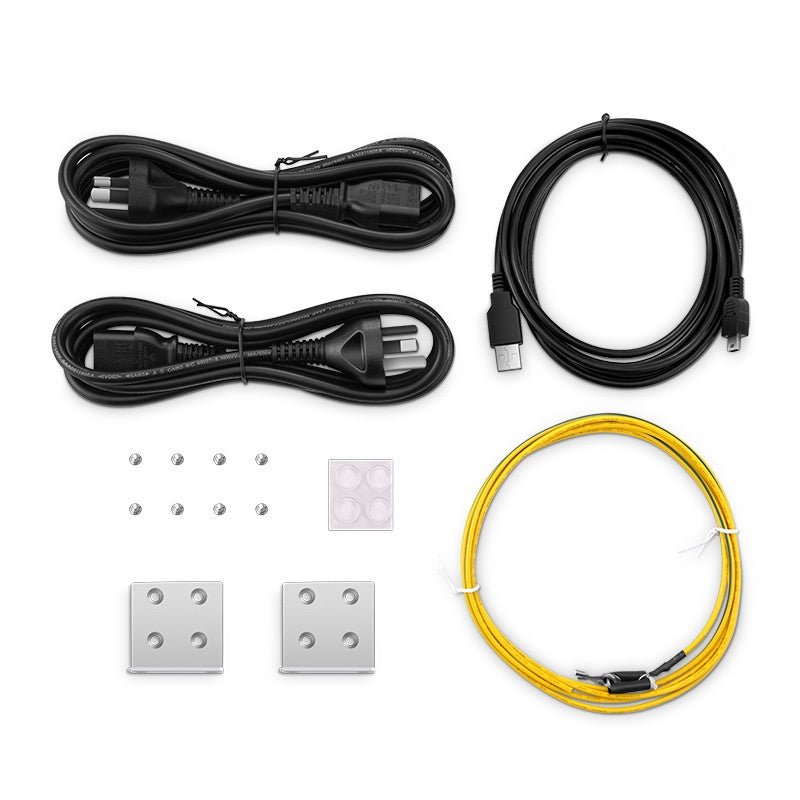

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

Resiliency and High Availability

• Stacking; IPv4/IPv6 Dual Protocol Stack
• IEEE 802.3ad Link Aggregation (LACP)
• Virtual Router Redundancy Protocol (VRRP)
• Graceful protocol restart (OSPF)
• Ethernet Ring Protection Switching (ERPS)
• Border Gateway Protocol (BGP)
• Multiprotocol Label Switching (MPLs)

Security

• DHCP snooping
• Secure Shell (SSH)
• Network Foundation Protection Policy (NFPP)
• Hardware CPU protection mechanism
• Hardware-based IPv6 ACLs
• Traffic filtering

Management

• Airware Cloud
• Command-Line Interface (CLI), Web-based management
• SNMP v1/v2/v3, RMON
• User login: console, SSH, telnet
• Syslog management
• Network Time Protocol (NTP)
• Traffic monitoring: sFlow
• DHCP server

Connectivity Solutions

Non-blocking, wire-speed 1/10G Ports for Versatile Networking
28 auto-sensing SFP ports adapt to multiple devices' seamless connections and meet high-density access requirements.

The 10G SFP+ uplink ports enhance flexibility for connecting to core networks or aggregation switches, optimizing network scalability and performance.

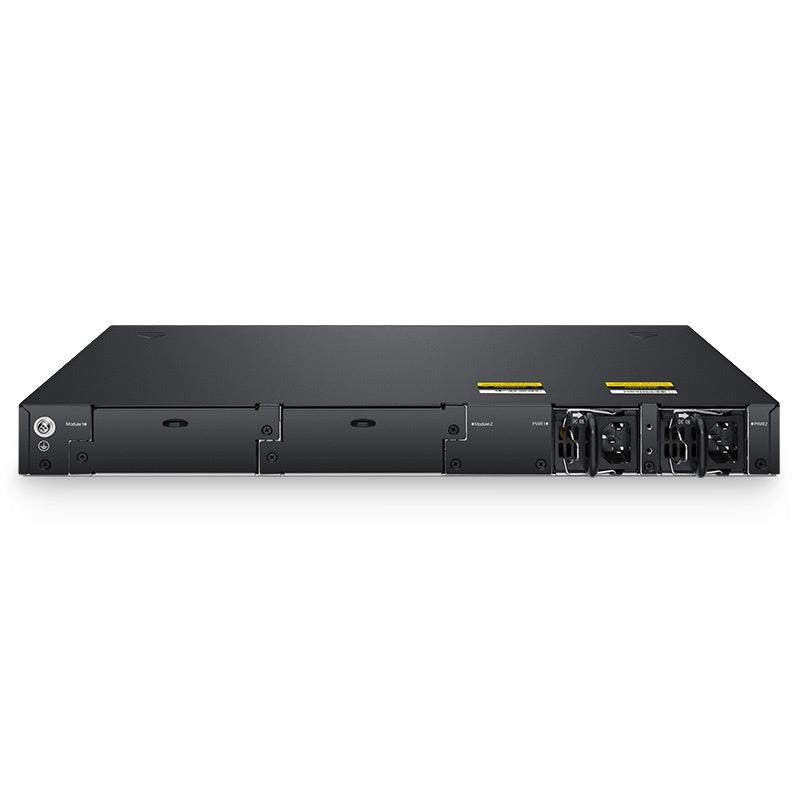

1+1 Hot-Swappable Power Supplies and 2+1 Smart Fans
The dual power supplies can be replaced without shutting down the system, and the intelligent variable-speed fan automatically adjusts its speed to ensure efficient cooling and reduce power consumption and noise.

High-Performance Stacking Simplifying Scalable Growth
Create 8-unit stacks using built-in SFP+ ports with long-range transceivers or DAC/AOC cables for scalability, simplified management, and seamless networking.

MPLS Helps Establish Point-to-point Connections
MPLS enables small and medium-sized operators to create tunnels for their users, which helps build point-to-point connections and achieves intercommunication between user networks.

OSPF (Open Shortest Path First) Improves Network Stability
OSPF uses advanced routing algorithms and an area-based design to dynamically update routes as the network changes, improving network stability and performance.

Comprehensive Security Policy Protects from Network Threats
With network-level security and stability capabilities like SSH, ACLs, AAA, 802.1X, etc., it defends against network threats for enterprises, campuses, and the financial industry.

Flexible Management Options
Innovative design supports CLI and easy-to-use Web GUI eliminating rip and replace of equipment as network management needs grow.

Airware Cloud-based Network, One Control Center
Allow you to configure and manage 24/7 from one central location to reduce costs and time.
