Overview

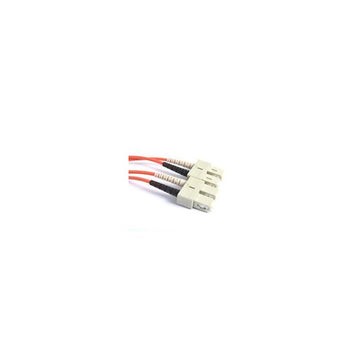

This 10-meter, 3mm duplex multimode fiber optic patch cable is designed for reliable data transmission in network environments. It features 62.5/125µm multimode fiber, terminated with SC PC connectors on both ends. This assembly is built with high-quality components, utilizing ceramic ferrules for consistent physical contact and stable optical performance.
Optimized for ease of integration, this duplex cable is suited for standard indoor cabling applications, providing a secure connection for data center and telecommunications infrastructure. The assembly meets industry performance requirements, ensuring consistent signal integrity for your network configuration.
Key Features
-
Ceramic Ferrules
Features precision-polished ceramic ferrules for high-durability and reliable connection performance compared to standard composite alternatives. -
Multimode 62.5/125µm Fiber
Utilizes standard 62.5/125µm fiber, ensuring compatibility with legacy multimode network equipment. -
Duplex Configuration
Includes two fibers in a single 3mm outer jacket to support simultaneous transmit and receive operations in a compact footprint. -
Standard Connector Interface
Equipped with SC PC connectors, which are widely used for their push-pull engagement mechanism and ease of deployment. -
Precision Machine Polishing
Connector end-faces undergo a precision machine polish to achieve low insertion loss and consistent return loss results. -
Industry Standard Compliance
Engineered to meet or exceed fiber optic industry performance benchmarks for reliability and data throughput.
Applications
- Telecommunications networks
- Data center infrastructure
- Local Area Networks (LAN)
- Fiber backbone cabling
Technical Specifications
| Specification | Value |
|---|---|
| Cable Length | 10 meters |
| Fiber Type | Multimode 62.5/125µm |
| Cable Diameter | 3mm |
| Fiber Count | Duplex |
| Connector A | SC PC |
| Connector B | SC PC |
| Insertion Loss | 0.4dB (Typical) |
| Return Loss | -25dB |
| Jacket Color | Orange |
| Ferrule Material | Ceramic |
Frequently Asked Questions
What is the typical insertion loss for this cable?
The cable provides a typical insertion loss of 0.4dB.
Does this cable support 62.5/125µm fiber?
Yes, it is designed for use with 62.5/125µm multimode fiber.
What type of connectors are used on this cable?
This assembly features SC PC connectors on both ends.
Is this a simplex or duplex cable?
This is a 3mm duplex cable.
What is the back reflection rating?
The back reflection is rated at -25dB.
