FMC-10-100-SC20B-DC48 Fast Ethernet single strand BiDi fiber media converter, SC 20Km B type, DC48V embedded PS
FMC-10-100-SC20B-DC48 Fast Ethernet single strand BiDi fiber media converter, SC 20Km B type, DC48V embedded PS

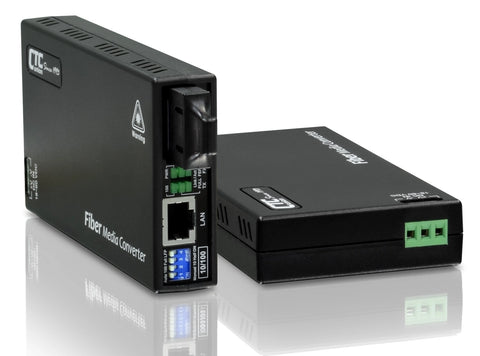

Note: Only one converter is sold. Photo is showing front and rear of the unit for a better understanding of the DC48V power input.
Product description
FMC-10-100 WDM series is the newest family of Fast Ethernet fiber optic media converters carried by Datainterfaces.com. The FMC media converters are noticed for their simplicity: no management features, guaranteed reliability and extremely affordable cost. Units are available with single SC type fiber optic connector, using a BiDirectional optical module. ST or FC optical connectors are available on demand.
FMC-10-100-SC20B-DC48 is a single strand WDM, Bi-Directional fiber media converter with Tx:1550nm/Rx:1310nm, operating on a 20Km distance, with auto-negotiation 10/100 and MDI/MDI-X features for the Fast Ethernet RJ45 UTP interface. The B ending model must always be matched with a complementary A type converter for proper operation.Even without the SNMP management support, FMC series support Link-Fault-Pass through function (LFP - an extremely useful feature to easily debug faulty fiber links), Far-End-Fault function (FEF), acts on a Store-and-Forward switching platform and can carry Jumbo data packets up to 9K size. The FMC-10-100-SC20B-DC48 is a standalone unit that has embedded DC 36-72V input power supply.
Product Installation Manual
Technical specifications
| Interfaces: | RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and SC, 100Base-FX compliant |
| Operating wavelength: | Tx:1550nm / Rx:1310nm single strand BiDirectional |
| Ethernet interface: | Supports 10/100Base-T/TX, Full, Half duplex n-way (Auto-Negotiation).Supports Full, Half duplex, 10/100 speed manual selections.Transmission Packet Rate for 10/100Base-T/TX : 14880 per second/148800 per second.Copper TP cable 4 pair Cat. 3 or 5 UTP |
| Features: | FEF (Far-End-Fault) and LFP (Link-Fault-Pass through) |
| Operating distance: | 20Km on 9/125um fiber |
| Optical connector: | single SC type(ST or FC available on demand) |
| Front LEDs: | PWR, LLF, Fiber Link, TP Link, Duplex, Speed |
| Power: | embedded DC48V power supply, 3 pin block connector |
| Temperature: | 0~50°C (Operating); 0~70°C (Storage) |
| Humidity: | 20-80% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 73mm x 108mm x 23mm |
| Weight: | 160g (without AC adapter) |
| Compliance: | FCC part 15, Subpart B, Class A,ANSI C63.4:2003CE EN55022:2006, Class AEN55024:1998+A1:2001+A2:2003LVD: EN 60 950-1:2001 |
| MTBF: | 65,000 hours |
Fiber power budget according to available single strand BiDirectional models
| Model | Distance | Lambda | Min. Output (dBm) | Sensitivity (dBm) | Power Budget (dB) |
| FMC-10-100-SC20A | 20Km | Tx:1310nm Rx:1550nm | -15 | -32 | 17 |
| FMC-10-100-SC20B | 20Km | Tx:1550nm Rx:1310nm | -18 | -32 | 14 |
| FMC-10-100-SC40A | 40Km | Tx:1310nm Rx:1550nm | -7 | -32 | 25 |
| FMC-10-100-SC40B | 40Km | Tx:1550nm Rx:1310nm | -8 | -32 | 24 |
| FMC-10-100-SC60A | 60Km | Tx:1310nm Rx:1550nm | -5 | -34 | 29 |
| FMC-10-100-SC60B | 60Km | Tx:1550nm Rx:1310nm | -5 | -34 | 29 |
| FMC-10-100-SC80A | 80Km | Tx:1310nm Rx:1550nm | -2 | -34 | 32 |
| FMC-10-100-SC80B | 80Km | Tx:1550nm Rx:1310nm | -2 | -34 | 32 |
