FMC-1001S Gigabit Ethernet 100/1000BaseX SFP slot fiber media converter, LFP and DIP sw settings
FMC-1001S Gigabit Ethernet 100/1000BaseX SFP slot fiber media converter, LFP and DIP sw settings

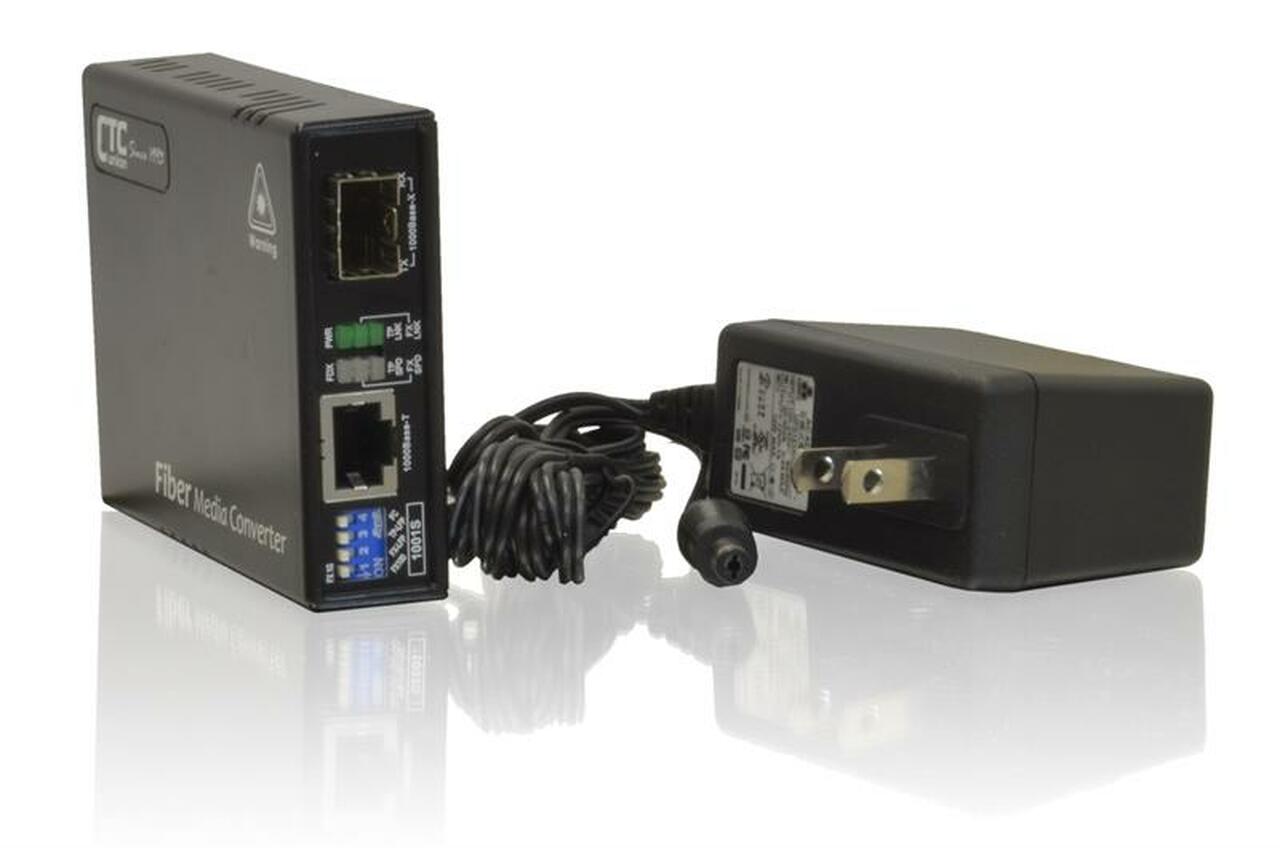

Note: AC 90-240V power adapter is included in carton package.
Product description

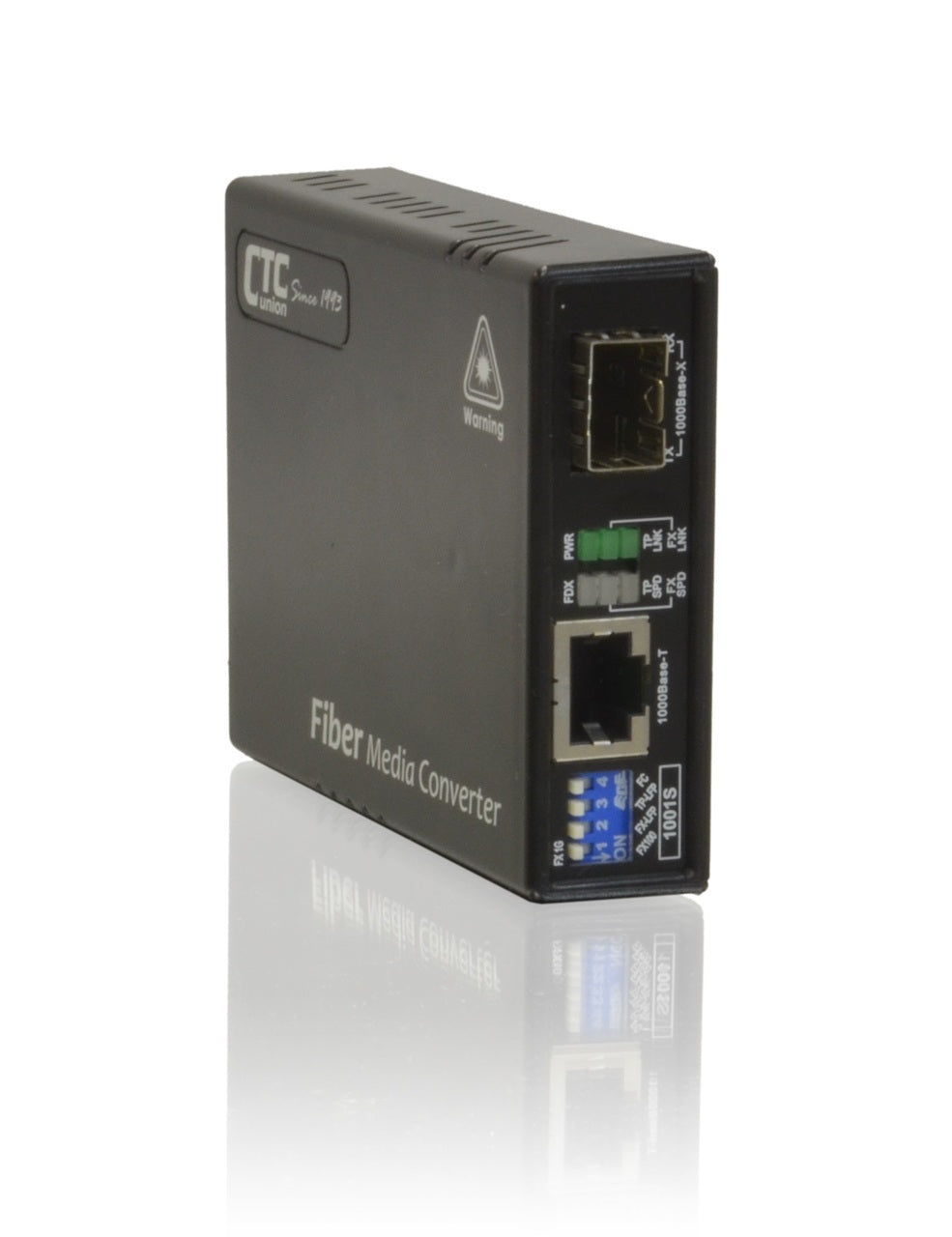

A new member of the popular FMC series, the FMC-1001S Gigabit converter has a dual speed Fast/Gigabit rate SFP slot (100/1000Base-X) for optical transceiver and one RJ-45 copper port with auto-negotiation 10/100/1000 and MDI/MDI-X features for the Gigabit Ethernet copper interface. Unit has DIP sw settings available for LFP function, speed and flow control on each port for maximum flexibility and fine tuning of the fiber or copper link connection. LED indicators signal the power status of the converter, UTP port speed, Link, and duplex status, FX port Link and duplex status. Used with their compatible FMC-CH17 fiber optic chassis they can be aggregated up to 17 units in a 19" wide and 2U height space only. FMC series offer the same ability to be aggregated in a central chassis, like their FRM220 managed counterparts. In an always changing and growing networking environment, such a versatile feature allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters.
The FMC-1001S Gigabit media converter is a very useful addition to the small and reliable FMC series of media converters.
Features
- 10/100/1000Base-T to 100/1000Base-X Converter
- Auto-Negotiation
- Auto MDI/MDIX
- Forward 2048 bytes (Max.) packets in switch mode (copper & fiber port in different speed)
- Forward 9k bytes in connector mode (fiber & copper port at the same speed)
- Provides DIP switch to set function
- Select fiber speed (100/1000M)
- Select LPF enable / disable
- Flow control enable / disable
- Supports Q in Q double tagged frame transparent
- Supports IEEE 802.1Q Tag VLAN pass thru
- Concentrated into FMC-CH17 chassis
Technical specifications
| Copper interface: | RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and IEEE 802.3ab 1000Base-T compliant |
| Optical interface: | 155M/1.25G SFP slot (100/1000BaseX) |
| Ethernet interface: | Supports 10/100/1000Base-T/TX, Full, Half duplex n-way (Auto-Negotiation). Supports Full, Half duplex, 10/100/1000 speed manual selection. Transmission Packet Rate for 10/100/1000Base-T/TX : 14880 per second /148800/1488000 per second. Copper TP cable 4 pair Cat. 5, 5e or 6 UTP |
| Optical connector: | LC connector for SFP module (SFP transceiver NOT included) |
| Front LEDs: | PWR, LLF, Fiber Link, TP Link, Duplex, Speed |

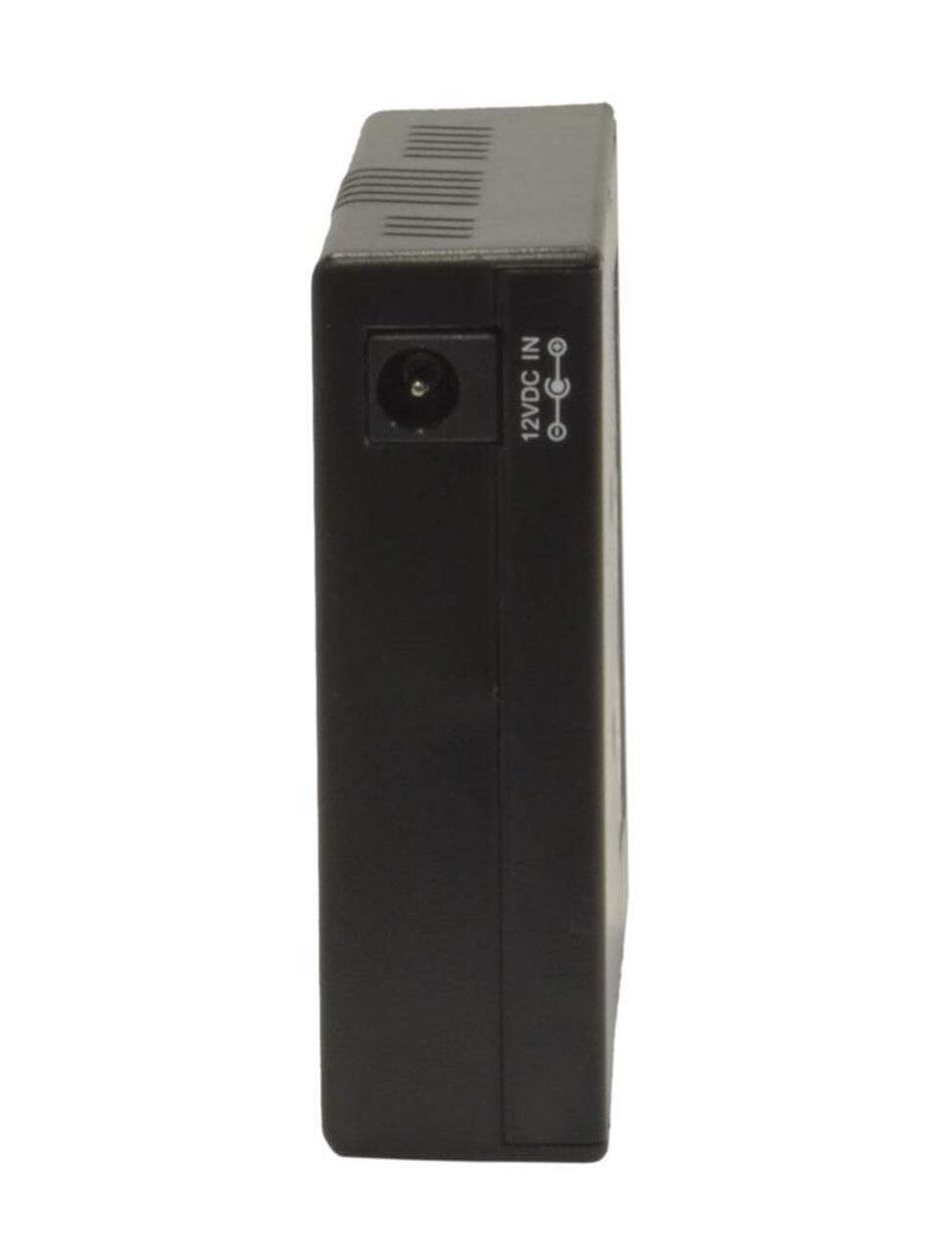

| Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug AC 90-240V power adapter is included in carton package |
| Temperature: | 0~60°C (Operating); 0~70°C (Storage) |
| Humidity: | 20-80% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 73mm x 108mm x 23mm |
| Weight: | 160g (without AC adapter) |
| Compliance: | FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001 |
| MTBF: | 65,000 hours |
