FS-AP-N506H, Wi-Fi 6 802.11ax 3000 Mbps Indoor Access Point, Seamless Roaming & 2 x 2 MU-MIMO Dual Radios, PicOS®, Manageable via AmpCon-Campus (Without PoE Injector)
FS-AP-N506H, Wi-Fi 6 802.11ax 3000 Mbps Indoor Access Point, Seamless Roaming & 2 x 2 MU-MIMO Dual Radios, PicOS®, Manageable via AmpCon-Campus (Without PoE Injector)
FS-AP-N506H is an indoor Wi-Fi 6 (802.11ax) access point that supports 2.4 GHz (2×2) and 5 GHz (2×2), delivering up to 3 Gbps of aggregated data rate.
With high bandwidth, strong concurrency, and flexible deployment, it reduces customer investment while ensuring reliable performance. It is ideal for hotel rooms, apartments, dormitories, and multi-dwelling units (MDUs).
Specifications

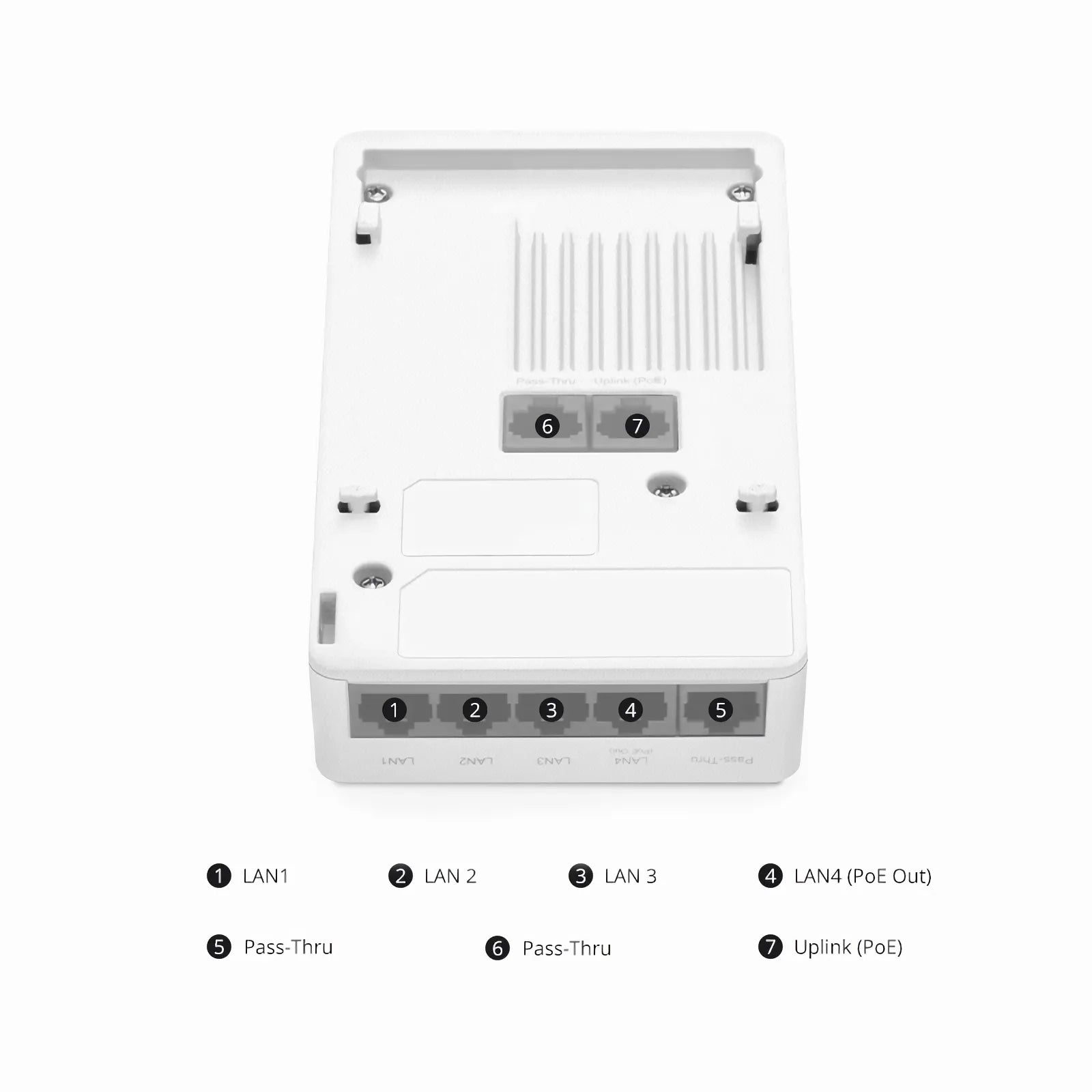

- Wired Interfaces: 1x 10/100/1000Base-T Ethernet Port, 4x 10/100/1000Base-T RJ45, 1x Pass-through Port from Rear to Bottom
- Wireless Standards: 802.11a/b/g/n/ac/ax
- Antenna Type: Built-in Omnidirectional Antenna
- Frequency Band: 2.4 GHz and 5 GHz
- Antenna Gain: 3.9 dBi (2.4 GHz), 5.2 dBi (5 GHz)
- Transmission Rate: 3000 Mbps
- AP Chip: Qualcomm IPQ5018
- MIMO: 2.4 GHz: 2x2:2, 5 GHz: 2x2:2
- Power Supply: IEEE 802.3 af/at PoE, DC 12V/2A
- Multiple SSIDs: 32
- Power Consumption: ＜12.9W
- Reference Coverage Radius: 15m
- Mount: Wall-Plate
- Max Number of Users: 300
- Dimensions (HxWxD): 6.32"x3.52"x1.34" (160.5×89.5×34mm)
- Recommended Number of Users: 50
- Operating Temperature: 0 to 50°C ( 32 to 122°F)
- Environment: Indoor
- Storage Temperature: -30 to 70°C (-22 to 158°F)
Product Highlights
- AmpCon-Campus Automates Deployment
- Dual Radios 3000 Mbps: 2.4 GHz (2x2), 5 GHz (2x2)
- Seamless Roaming for Stable Mobile Connectivity
- Mesh Connects APs Wirelessly for Extended Range
- WPA3 Encryption for Wi-Fi Connection Security
- PoE Out for IP Phones and Other IoT Devices
- Backwards Compatible with Older Wi-Fi Devices

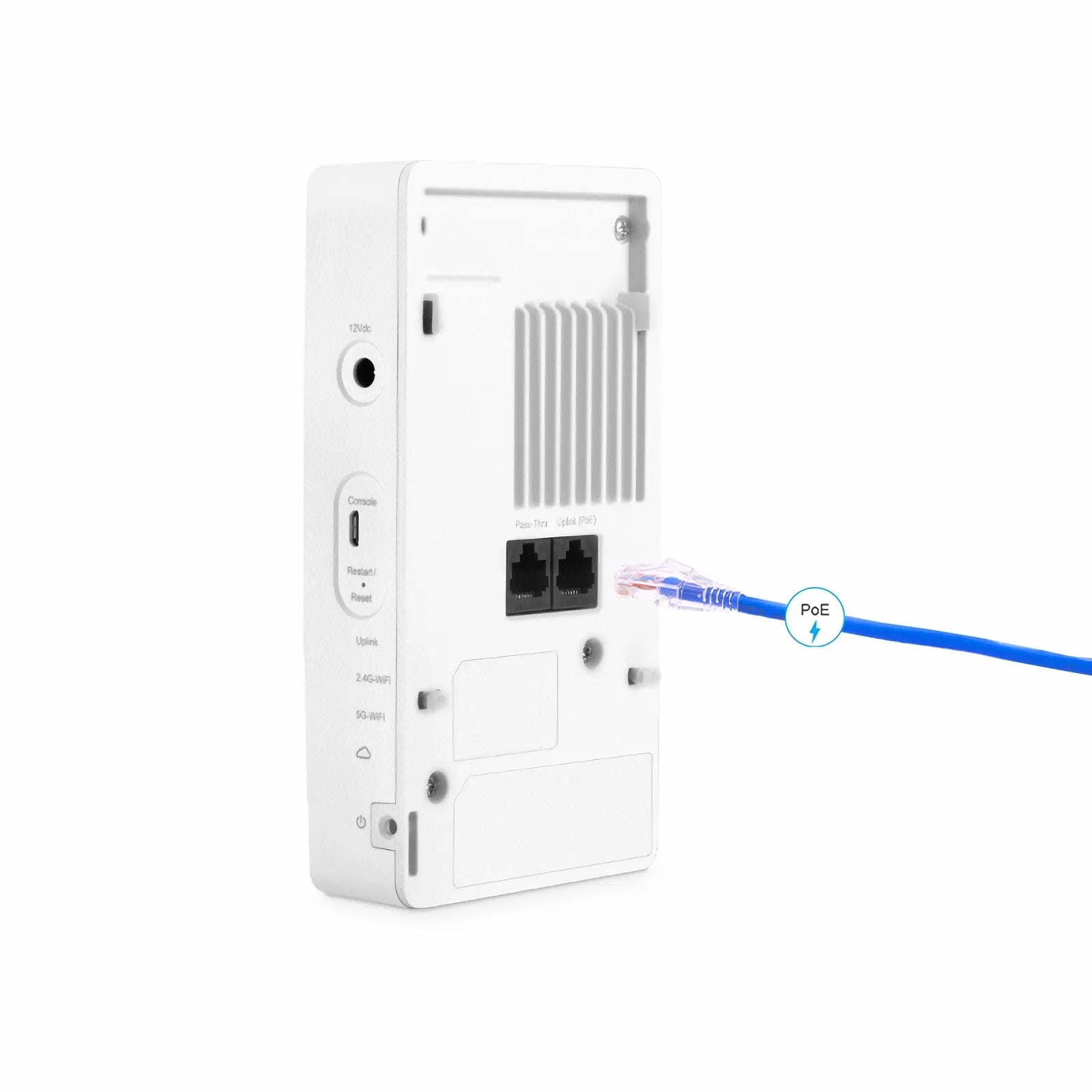

- Powered Using PoE Switch, PoE Injector or DC Power
- Storage Temperature: -30 to 70°C (-22 to 158°F)
- Operating Temperature: 0 to 50°C ( 32 to 122°F)
- Mount: Wall-Plate
- Power Consumption: ＜12.9W
AmpCon-Campus Unified Management
AmpCon-Campus Management Platform
Fully onboarded (Day 0), provisioned (Day 1), and managed (Day 2+) by Ampcon-Campus. The platform centrally manages APs and switches running the PicOS®, combining rich telemetry data, automated deployment, and topology visualization to enable unified wired and wireless operations, delivering an efficient, intelligent, and visible network solution.
With Mesh technology, the AP-N506H wirelessly extends your Wi-Fi coverage to hard-to-wire areas, eliminating the need for additional cabling.
Support WPA3-Enterprise and OWE to provide strong encryption and authentication, while MPSK and DPSK with up to 4000 VLANs enable precise user and device isolation.

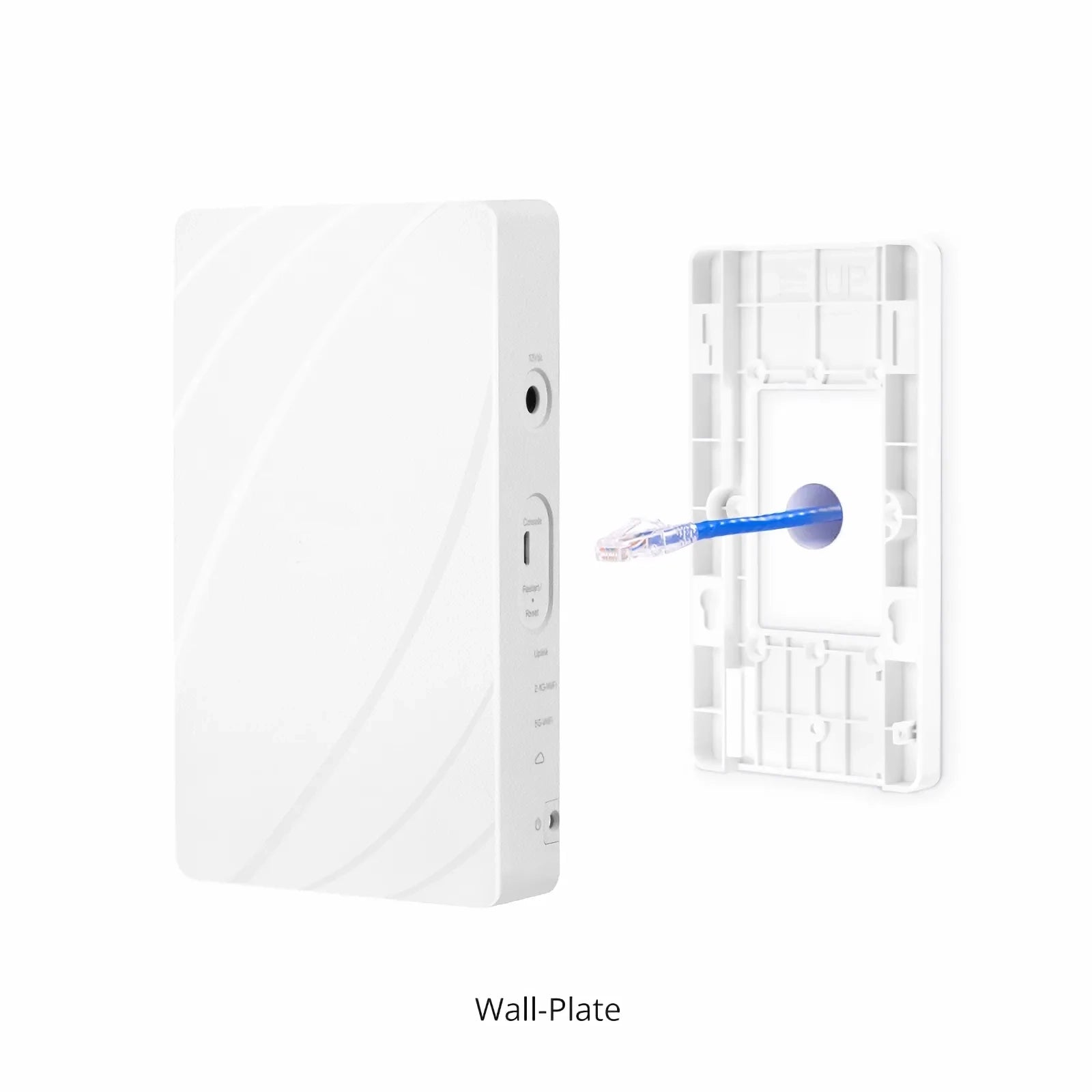

The versatile mounting design allows the access point to blend seamlessly and tastefully into any decor, while delivering a great wireless experience for users.
