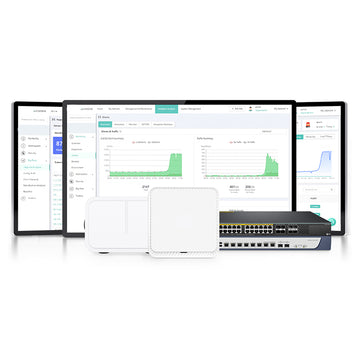

FS-AP-N515, Cloud Managed Wi-Fi 6 802.11ax 5375 Mbps Indoor Access Point, Seamless Roaming & 4 × 4 MU-MIMO Dual Radios, Manageable via Airware, Controller or Standalone (Without PoE Injector)
FS-AP-N515, Cloud Managed Wi-Fi 6 802.11ax 5375 Mbps Indoor Access Point, Seamless Roaming & 4 × 4 MU-MIMO Dual Radios, Manageable via Airware, Controller or Standalone (Without PoE Injector)
FS-AP-N515 is an 802.11ax-compliant enhanced wireless access point, Which provides your business with next-level coverage, ease of installation, and management. It supports 4x4 MU-MIMO, and can simultaneously deliver services on the 2.4 GHz and 5 GHz, achieving a rate of up to 5375 Mbps.
With built-in smart antennas that enable signals to follow Stations (STAs), providing better coverage, In addition, this AP can be mounted on the wall or the ceiling, the AP is ideal for Indoor environments such as large campuses, conference centers, or other densely populated scenarios.
Specifications
- Wired Interfaces: 1× 100M/1000M/2.5G/5G Ethernet port, 1× 5G SFP; 1×10/100/1000Base-T RJ45
- Wireless Standards: 802.11a/b/g/n/ac/ax
- Antenna Type: Built-in smart antennas
- Frequency Band: 2.4 GHz and 5 GHz
- Antenna Gain: 2.4 GHz: 2× 3 dBi; 5 GHz: 4× 3 dBi
- Transmission Rate: 5375 Mbps
- AP Chip: BCM47623
- MIMO: 2.4GHz: 2x2:2; 5 GHz: 4x4:4
- Power Supply: IEEE 802.3af/at/bt, DC 54V/1.1A
- Multiple SSIDs: 32
- Power Consumption: 40W
- Reference Coverage Radius: 30m
- Mount: Ceiling/Wall/T-Shaped Keel/Triangular Keel/Beam/Threaded Rod
- Max Number of Users: 1024
- Dimensions (HxWxD): 8.98"×8.98"×2.00"(230x230x51mm)
- Recommended Number of Users: 80
- Operating Temperature: -10 to 50°C (50 to 122°F)
- Operating Mode: FAT/FIT/Cloud AP
- Storage Temperature: -40 to 70°C (40 to 158°F)
- Environment: Indoor
Connectivity Solutions
Wi-Fi 6, The End of Slow Networking
Every user will get smooth, consistent fast connections, every time.
Wi-Fi 6 That Turbo Boosts Business Performance
Designed to enhance multi-user performance, improve efficiency, and reduce congestion in high-bandwidth usage scenarios.
Enterprise Level Security You Can Trust
Protect network security with stronger encryption and rogue device monitoring.
Your Installation Needs Met with Perfection
Support T-shaped, triangular keel ceiling, beam and threaded rod mounting ensuring a solid and stable connection.
Available in Multiple Styles
Optional covers allow the AP to discreetly blend into a variety of environments
Airware Cloud-based Network, One Control Center
Allow you to configure and manage 24/7 from one central location, streamlining operations and enabling quick deployment with Zero Touch Provisioning.
