FS-AP-N635, Cloud Managed Wi-Fi 6E 802.11ax 7775 Mbps Indoor Access Point, Seamless Roaming & 4 × 4 MU-MIMO Three Radios, Manageable via Airware, Controller or Standalone (Without PoE Injector)

FS-AP-N635 is designed to take advantage of the 6 GHz band using three radios for comprehensive coverage to meet the growing demands of Wi-Fi due to increased use of video, growth in client and IoT devices, and expanded use of cloud.

With a maximum aggregate 7775 Mbps data rate for higher throughput and faster speeds for large conference centers, campus, large venues use, the AP-N635 delivers added capacity, wider channels, hitless failover, and less interference between the 5 GHz and 6 GHz bands.

Product Highlights

• Unlock the New 6 GHz Radio：Up to 7775 Mbps the Available Capacity

• Multi-rate 2.5G/5G Ethernet Port Boosts Total Internet Throughput

• 160 MHz Frequency Bandwidth, Supporting 5/6 GHz-prior Access

• Managed via Airware Cloud/Wireless Controller or Operate Alone

• Seamless Roaming with Airware Cloud/Wireless Controller

• WPA3, WIDS and RF Interference Tracking, etc. Ensure Data Security

• Support OFDMA, MU-MIMO, 1024-QAM, TWT

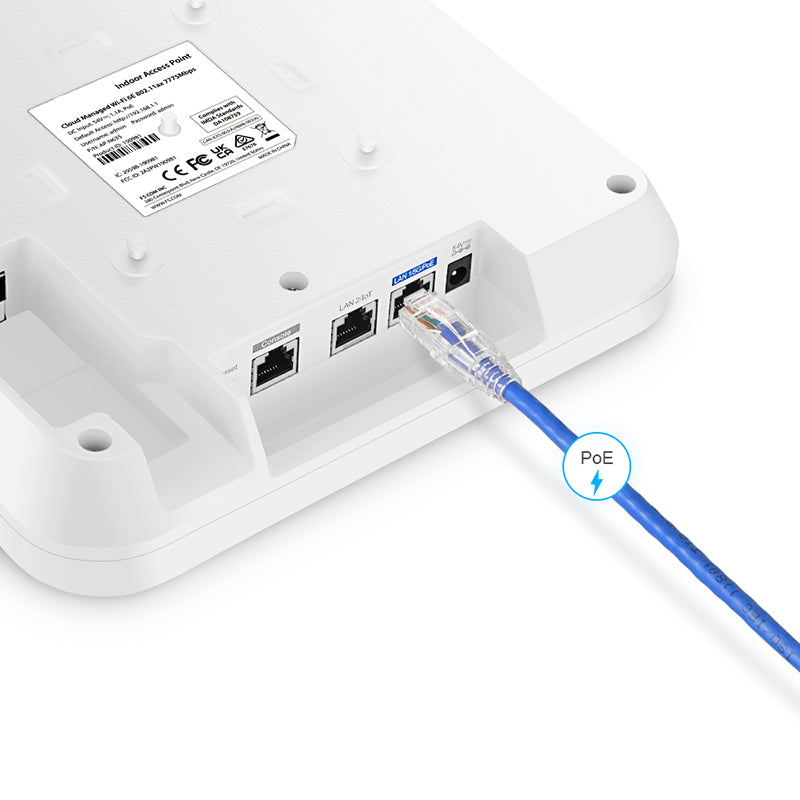

• Powered Using PoE++ (PoE injector sold separately)
• Antenna Type: Built-in Smart Antenna
• AP Chip: 100
• Power Supply: IEEE 802.3bt PoE, DC 54V/1.1A
• Power Consumption: 40W

Specifications

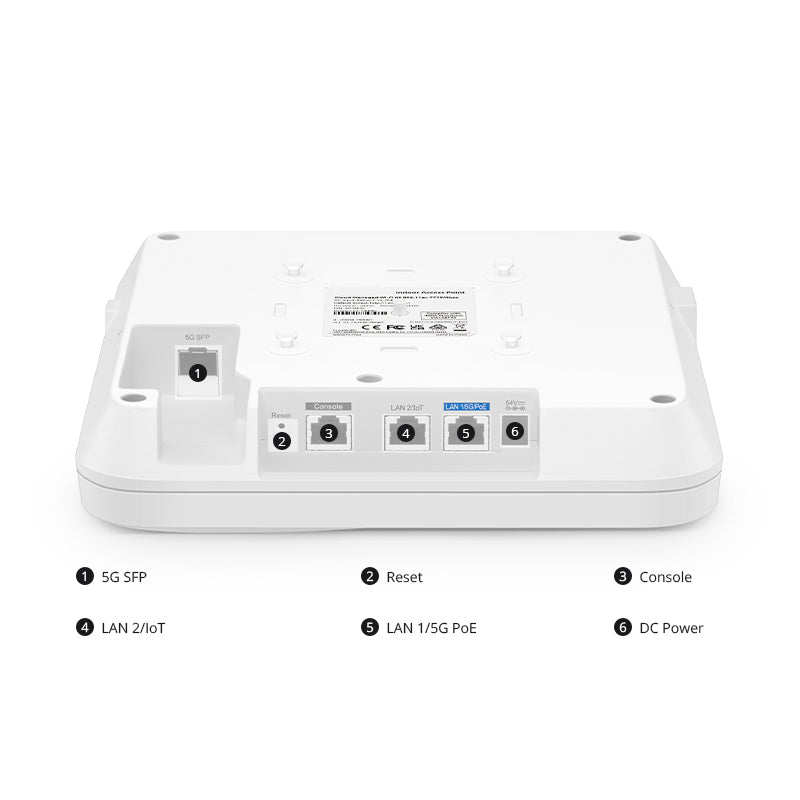

• Wired Interfaces: 1× 100M/1000M/2.5G/5G Ethernet port, 1× 5G SFP;  1×10/100/1000Base-T RJ45

• Wireless Standards: 802.11/a/b/g/n/ac/ax

• Antenna Type: Built-in Smart Antenna

• Frequency Band: 2.4 GHz, 5 GHz and 6GHz

• Antenna Gain: 2.4 GHz: 2× 5.4 dBi; 5 GHz: 2× 5.2 dBi; 6 GHz: 4× 5.4 dBi

• Transmission Rate: 7775 Mbps

• AP Chip: 100

• MIMO: 2.4GHz: 4x4:4; 5 GHz: 4x4:4; 6 GHz: 4x4:4

• Power Supply: IEEE 802.3bt PoE, DC 54V/1.1A

• Multiple SSIDs: 48

• Power Consumption: 40W

• Reference Coverage Radius: 15-20M

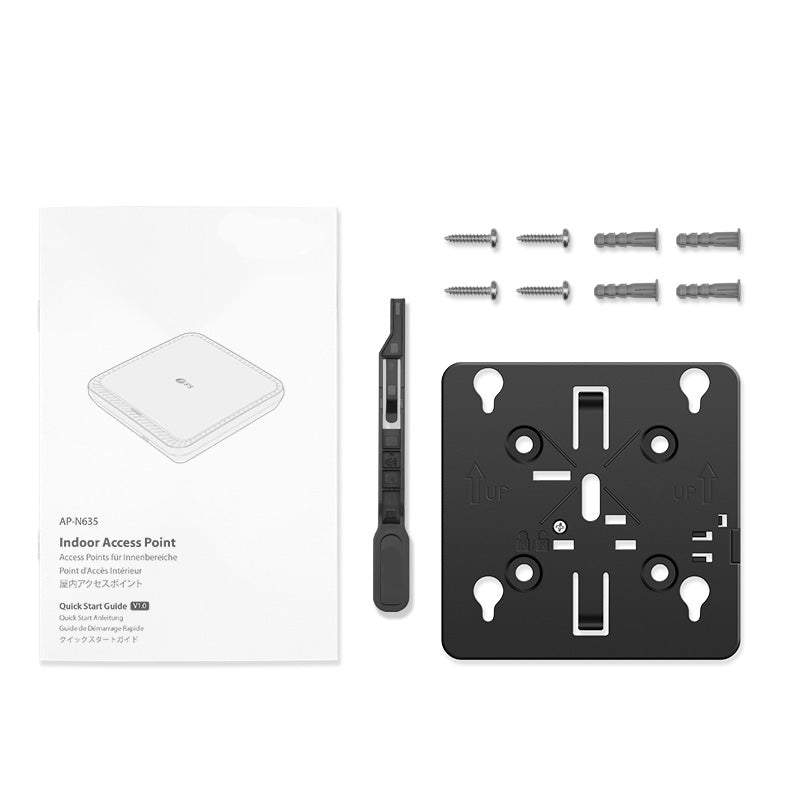

• Mount: Ceiling/Wall/T-Shaped Keel/Triangular Keel/Beam/Threaded Rod

• Max Number of Users: 1536

• Dimensions (HxWxD): 9.06"x9.06"×2.01"(230x230x51mm)

• Recommended Number of Users: 100

• Operating Temperature: -10 to 50°C (50 to 122°F)

• Operating Mode: FAT/FIT/Cloud AP

• Storage Temperature: -40 to 70°C (40 to 158°F)

• Environment: Indoor


Connectivity Solutions

Wi-Fi 6E, The Fastest Wi-Fi Ever
Seven super-wide 160 MHz channels greatly increase network capacity and reduce bandwidth congestion.

Wi-Fi 6 That Turbo Boosts Business Performance
Designed to enhance multi-user performance, improve efficiency, and reduce congestion in high-bandwidth usage scenarios.

Always Stay Smooth with Seamless Roaming
Ensure customers enjoy uninterrupted streaming while moving around by switching clients automatically to the access points with the optimal signal.

Enterprise Level Security You Can Trust
Protect network security with stronger encryption and rogue device monitoring.

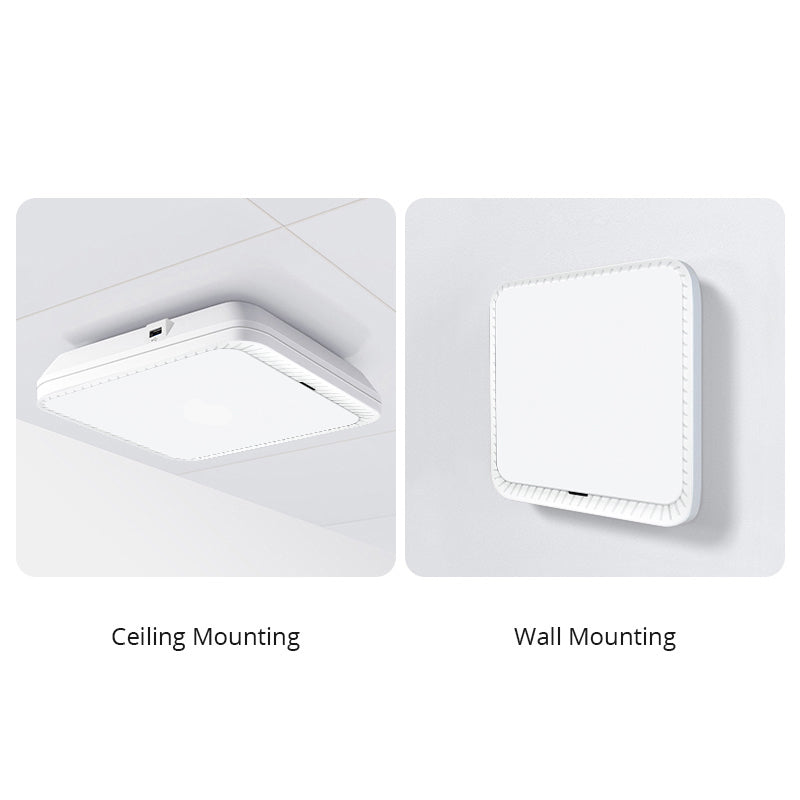

Your Installation Needs Met with Perfection
Support T-shaped, triangular keel ceiling, beam and threaded rod mounting ensuring a solid and stable connection.

Available in Multiple Styles
Optional covers allow the AP to discreetly blend into a variety of environments.

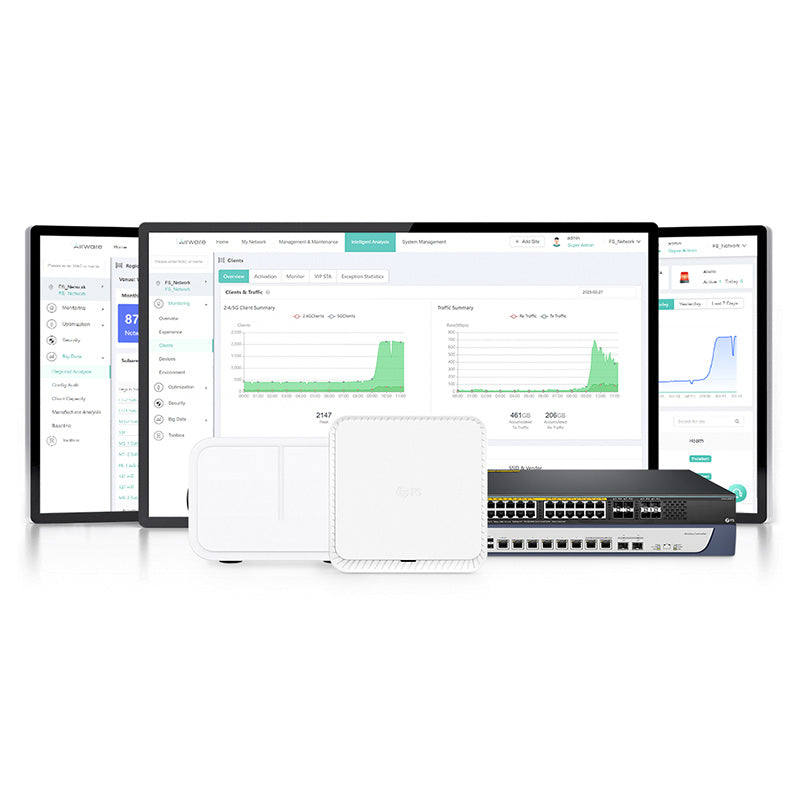

Airware Cloud-based Network, One Control Center
Allow you to configure and manage 24/7 from one central location, streamlining operations and enabling quick deployment with Zero Touch Provisioning.
