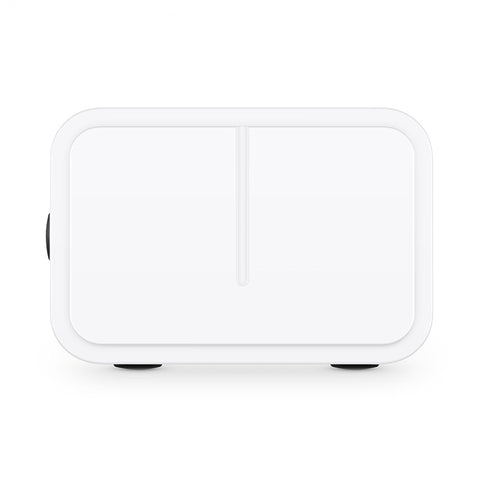

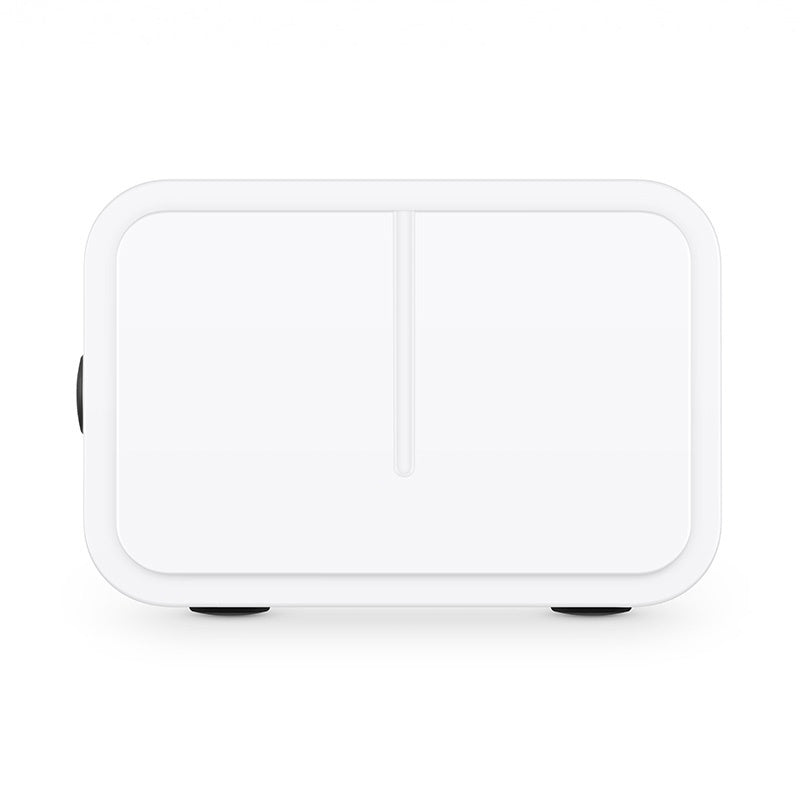

FS-AP-T567, Cloud Managed Wi-Fi 6 802.11ax 2400 Mbps Outdoor Access Point, Seamless Roaming & 2 x 2 MU-MIMO Dual Radios, Built-in Directional Antenna, Manageable via Airware, Controller or Standalone (Without PoE Injector)

FS-AP-T567 provides concurrent dual-band with access rates up to 2.4Gbps, 4 spatial streams, and built-in directional antennas. It supports FAT/FIT mode switching and provides one SFP interface and one 10/100/1000M interface with PoE/local power supply.

It's housing is designed with IP68 protection for extreme indoor and outdoor environments. It can withstand extreme weather and other environmental conditions, thus significantly reducing installation and maintenance.

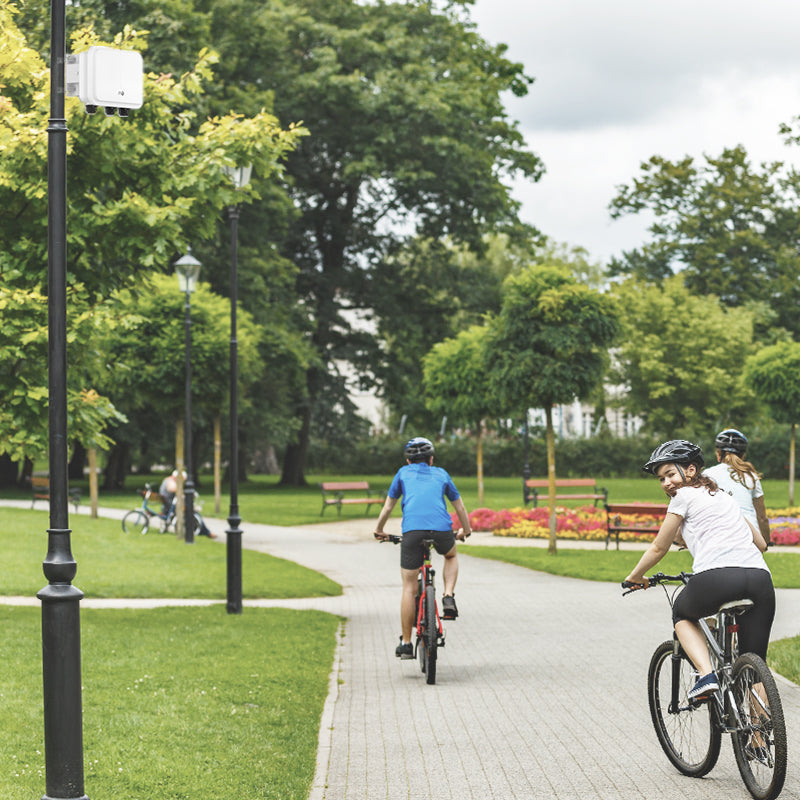

The built-in directional antenna enables Wi-Fi coverage in most scenarios. Multi-hop and point-to-multipoint bridging capabilities are also supported to enhance deployment flexibility further, purpose-built for outdoor public venues such as parking lots, plazas, and parks.

Product Highlights

• IP68 Outdoor Rated for Harsh Environments

• Built-in Directional Antennas, Focused Coverage

• Support Point-to-Multipoint Wireless Bridge

• Airware Cloud Management for Easy O&M

• Powered Using PoE (PoE Injector Sold Separately)

Specifications

• Wired Interfaces: 1x 10/100/1000M RJ45, 1x 1G SFP, 1x RJ45 Console port

• Wireless Standards: 802.11/a/b/g/n/ac/ax

• Antenna Type: Built-in Directional Antenna

• Frequency Band: 2.4 GHz and 5 GHz

• Antenna Gain: 2.4 GHz: 2× 9 dBi; 5 GHz: 2× 9 dBi

• Transmission Rate: 2400 Mbps

• AP Chip: BCM47622

• MIMO: 2.4GHz: 2x2:2; 5 GHz: 2x2:2

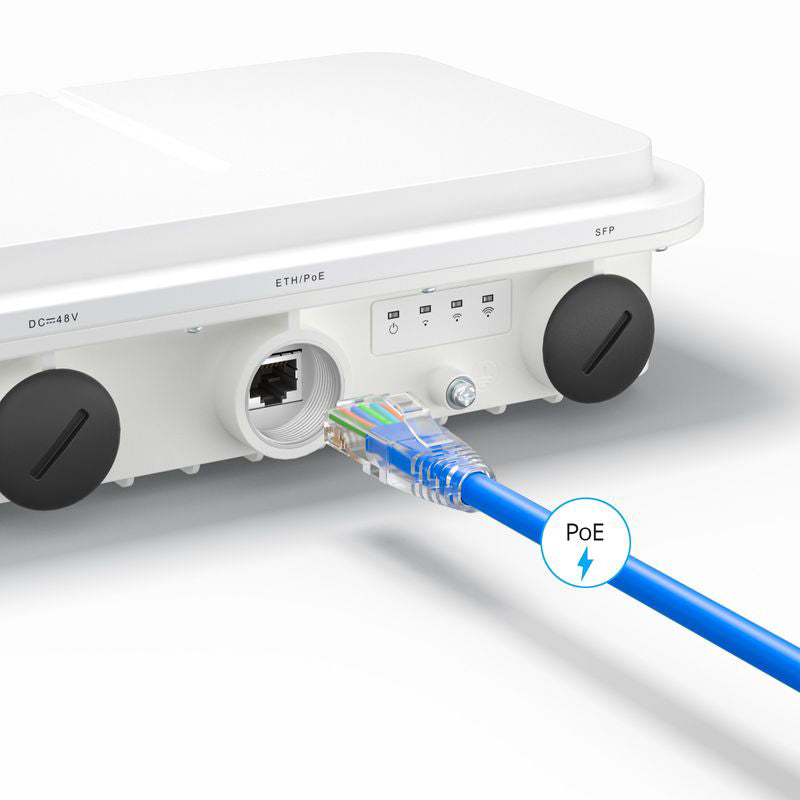

• Power Supply: IEEE 802.3af PoE, DC 48V/0.35A

• Multiple SSIDs: 32

• Power Consumption: 12.95W

• Reference Coverage Radius: 150m

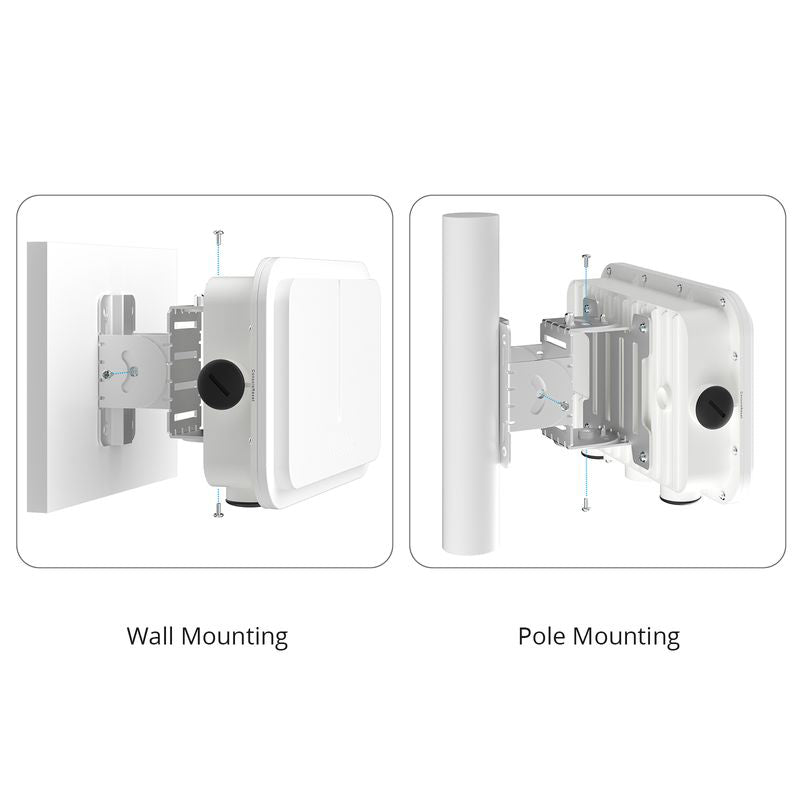

• Mount: Wall/Pole Mounting

• Max Number of Users: 1024

• Dustproof and Waterproof Level: IP68

• Recommended Number of Users: 64

• Dimensions (HxWxD): 9.88"x6.61"x2.52" (251x168x64mm)

• Operating Mode: FAT/FIT/Cloud AP

• Operating Temperature: -40 to 65°C (-40 to 149°F)

• Environment: Outdoor

• Storage Temperature: -40 to 85°C (-40 to 185°F)

Connectivity Solutions

Ultimate Speed and Capacity with Wi-Fi 6
Designed to deliver faster, smoother connections with 1024 devices capacity for varied and complex outdoor scenarios.

Industrial Design for Harsh Outdoor Environments
IP68 rating for water and dust resistance, wide temperature range and lightning protection, withstanding the most extreme environments.

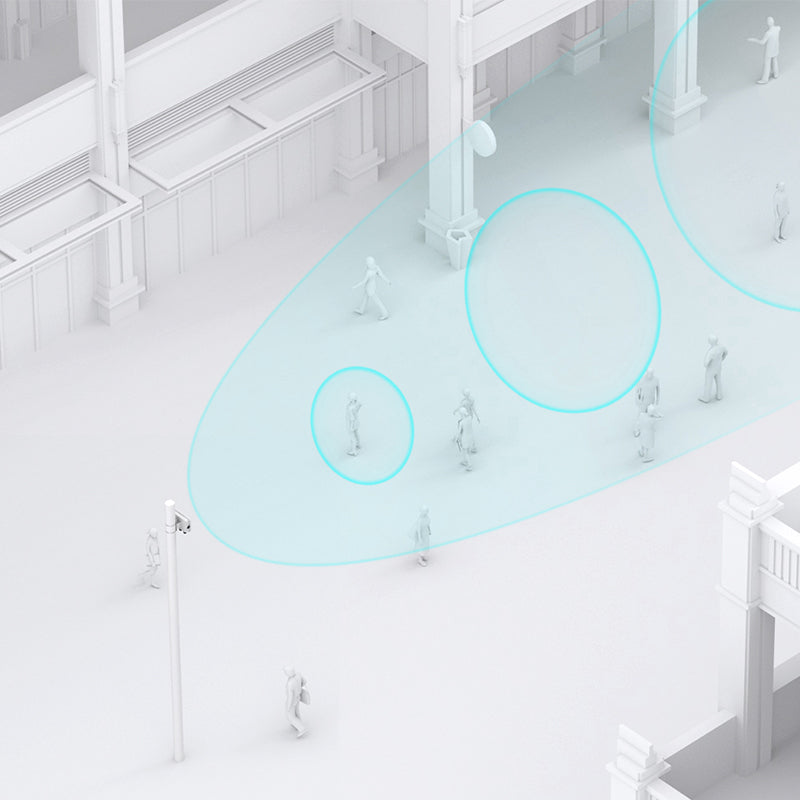

Focused Coverage and Strong Signal with Built-in Directional Antennas
Equipped with 28dBm high transmit power, provides expansive wireless coverage.

Connect Buildings like a Wire, Without the Wire
Point-to-point connection supports 3-km long-distance Wi-Fi transmission.

Wi-Fi That Turbo Boosts Business Performance
Designed to enhance multi-user performance, improve efficiency, and reduce congestion in high-bandwidth usage scenarios.

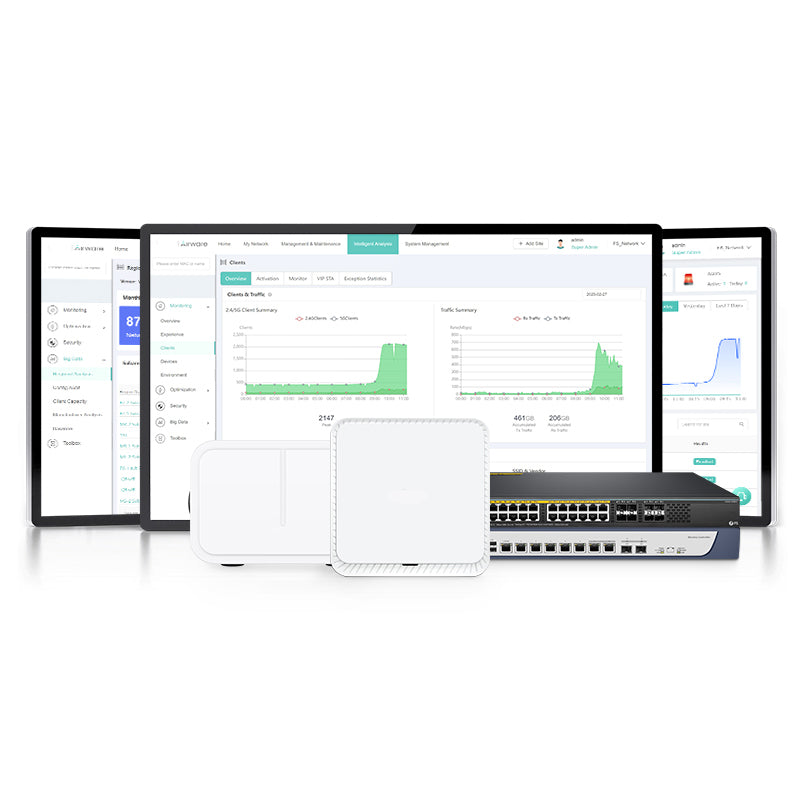

Airware Cloud-Based Network, One Control Center
Allow you to configure and manage 24/7 from one central location, streamlining operations and enabling quick deployment with Zero Touch Provisioning.
