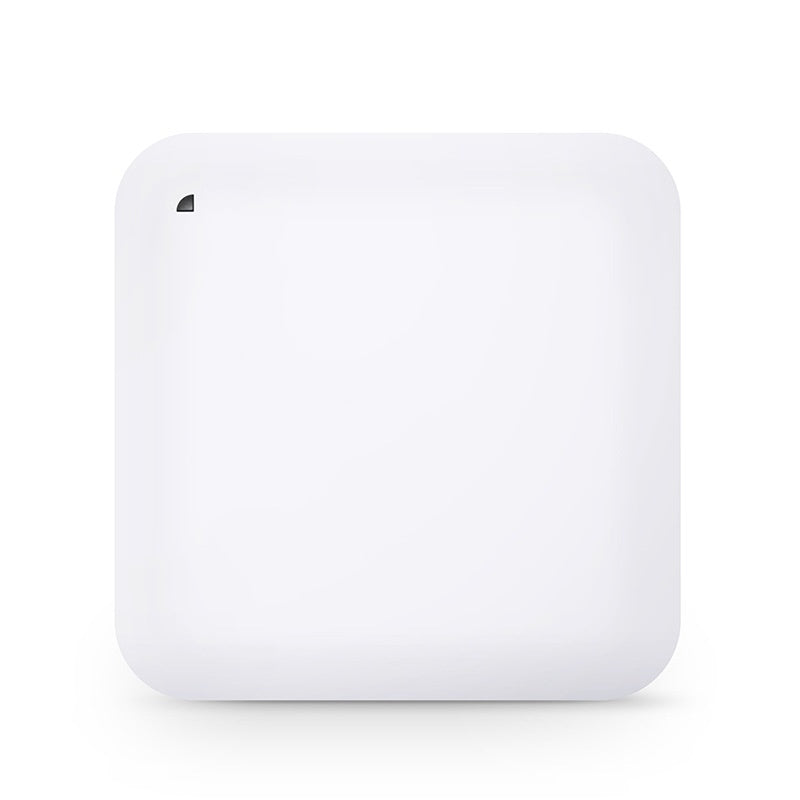

FS-AP3000C, Wi-Fi 5 802.11ac Wave 2, 3000 Mbps Wireless Access Point, 4 × 4 MU-MIMO Three Radios (Power Adapter Included)

The FS-AP3000C features simultaneous, Three Radios, 4x4 MIMO and powerful hardware features in Wi-Fi 802.11ac Wave 2 technology, delivers high performance with reliable wireless for small and mid-size businesses and services simultaneously on the 2.4GHz and 5GHz bands.

The first 2.4GHz band with two spatial streams supports 2x2 SU-MIMO, the second 5GHz band with two spatial streams supports 2x2 SU-MIMO and 2x2 MU-MIMO, and the third 5GHz band with four spatial streams supports 4x4 SU-MIMO and 4x4 MU-MIMO.

With built-in smart antennas and support for 802.11n and 802.11ac, the AP provides gigabit access for wireless users greatly enhancing user experiences. The FS-AP3000C has a refined industrial design and can be easily installed using the included mounting hardware.

The access point can be managed independently (standalone) and it's applicable to SMB and commercial scenarios such as hospitals, campuses, hotels and airports.

Specifications

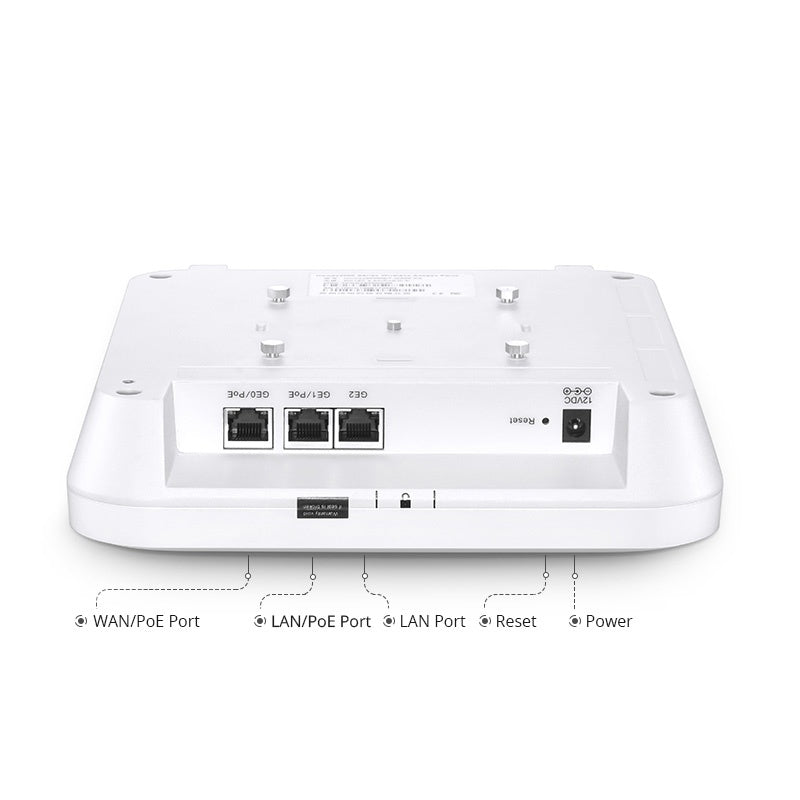

• Wired Interfaces: 3x 10/100/1000Mbps RJ45

• AP Chip: Qualcomm IPQ4029

• Wireless Standards: IEEE 802.11a/b/g/n/ac Wave 2

• Frequency Band: 2.4GHz and 5GHz

• Maximum Number of Users: 512

• Transmission Rate: 3000 Mbps

• Recommended Number of Users: 30~40

• Multiple SSIDs: 32

• Antenna Type: Omnidirectional Antennas

• MIMO: 4×4

• Antenna Gain: 2.4 GHz: 2× 3 dBi; 5 GHz: 4× 3.5 dBi

• Operating Mode: FAT/FIT AP

• Reference Coverage Radius: 25m

• Dimensions (HxWxD): 1.96"x8.26"x8.26" (50x210x210mm)

• Environment: Indoor

• Mount: Ceiling/Wall

• Operating Temperature: -10 to 55°C (50 to 131°F)

• Transmission Power: 10~23dBm

• Storage Temperature: -40 to 70°C (40 to 158°F)

• Power Supply: IEEE 802.3at PoE, DC 12V/4A

Product Highlights

• Wi-Fi 5 Three Radios 802.11ac Wave 2 Technology

• 4x4 MU-MIMO, 3000 Mbps, Max 512 Users, Recommend 30-40 Users

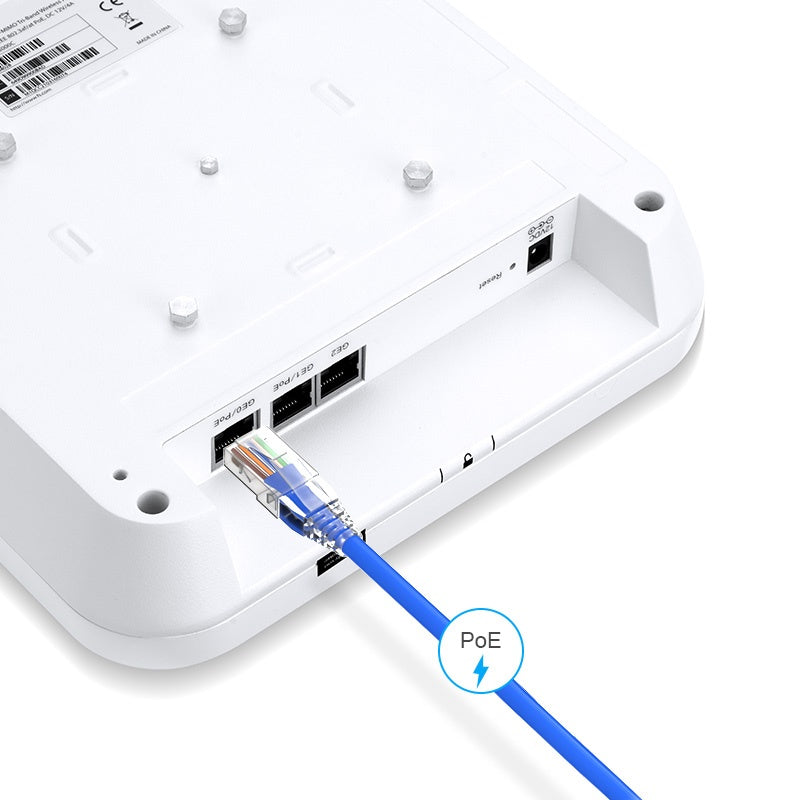

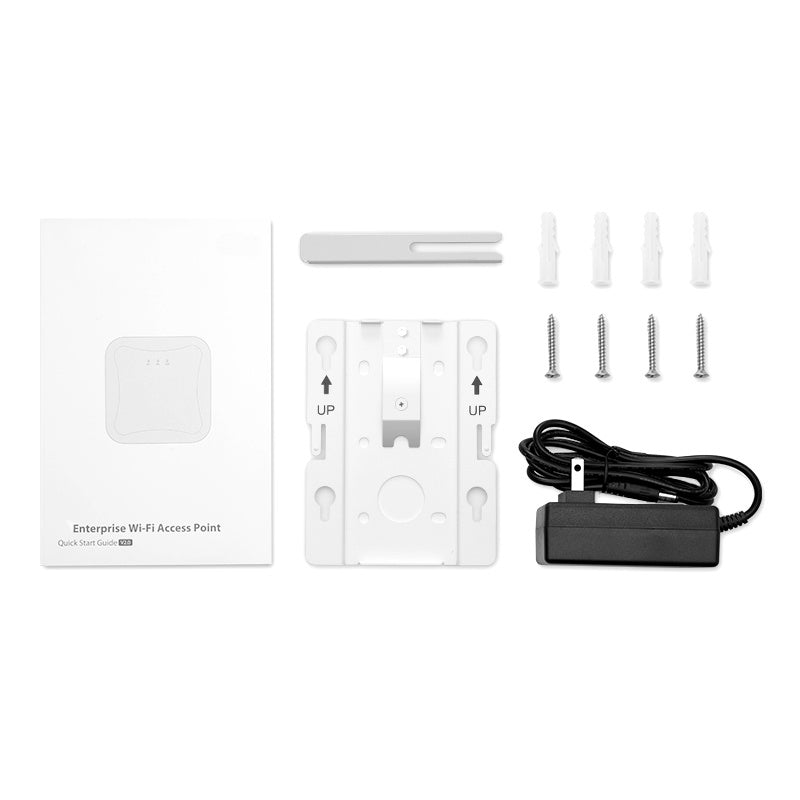

• Powered by PoE Switch or Power Adapter (Included in Box)

• 2.4 GHz + 5 GHz+5 GHz Radio

• Highly Quality Assurance with IXIA Test

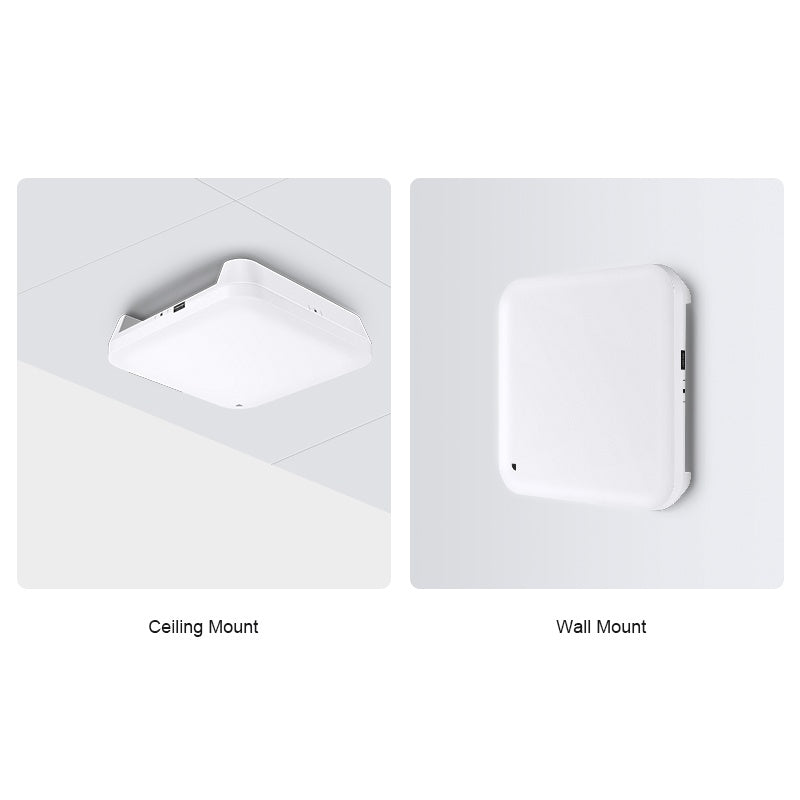

• Small Compact Design and Easily Wall or Ceiling Mountable

Wireless Controller Management

Three Radios Wi-Fi That Boosts Business Performance
Providing faster speeds, all users can enjoy excellent connectivity without the slowdown.

Optimize for What You Need
The AP delivers a smooth and superior Wi-Fi experience in workplaces, featuring load-balance, and airtime fairness.

Highly Quality Assurance with IXIA Test
Ensure the performance and stability of wireless access points through ixia test equipment.

Managed Independently or with a Wireless Controller
Wi-Fi 5 access point can be run by standalone or controller to meet whatever your business need.
