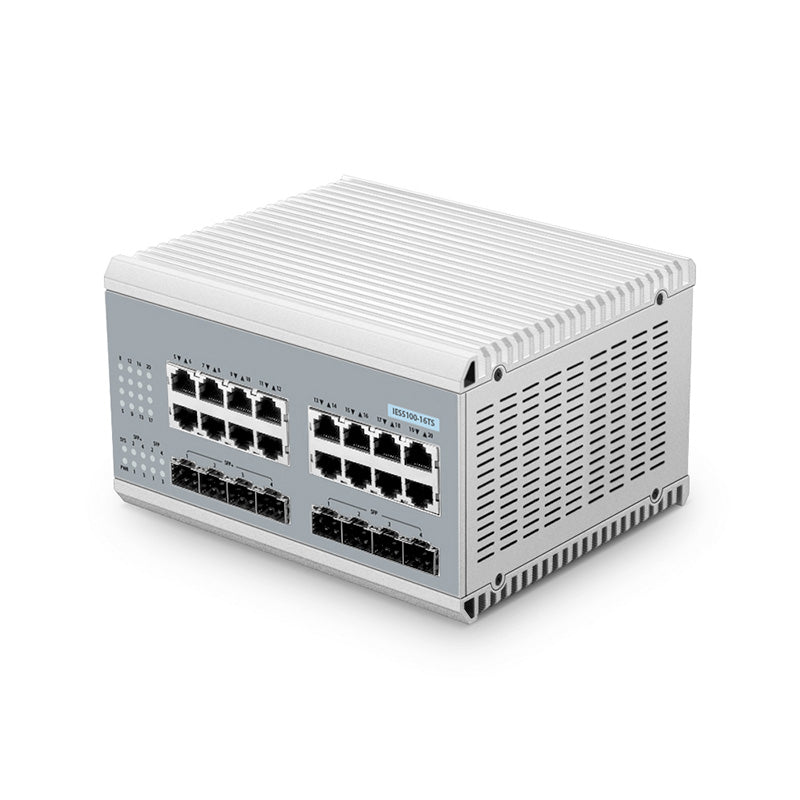

FS-IES5100-16TS, 16-Port Gigabit Ethernet L2+ Managed Industrial Switch, 16 x 10/100/1000BASE-T, with 4 x 1Gb SFP and 4 x 10Gb SFP+, -40 to 75°C Operating Temperature

The FS-IES5100-16TS features 16x 10/100/1000BASE-T ports, 4x 1G SFP ports, 4 x 10G SFP+ ports, which is designed especially for a broad spectrum of industrial and extended enterprise connectivity needs.

Equipped with an IP40 rated metal enclosure and fanless design, it can operate within a wide temperature range of -40 to 75°C (-40 to 167°F). This switch is ideal for harsh environments, and can be widely used in energy, transportation, industrial production, environmental protection, and industrial industry.

This layer 2+ industrial managed switch supports enhanced L3 routing functions RIP, OSPF and VRRP, which can facilitate the deployment of applications across networks, making them ideal for medium or large-scale industrial aggregation networks.

Specifications

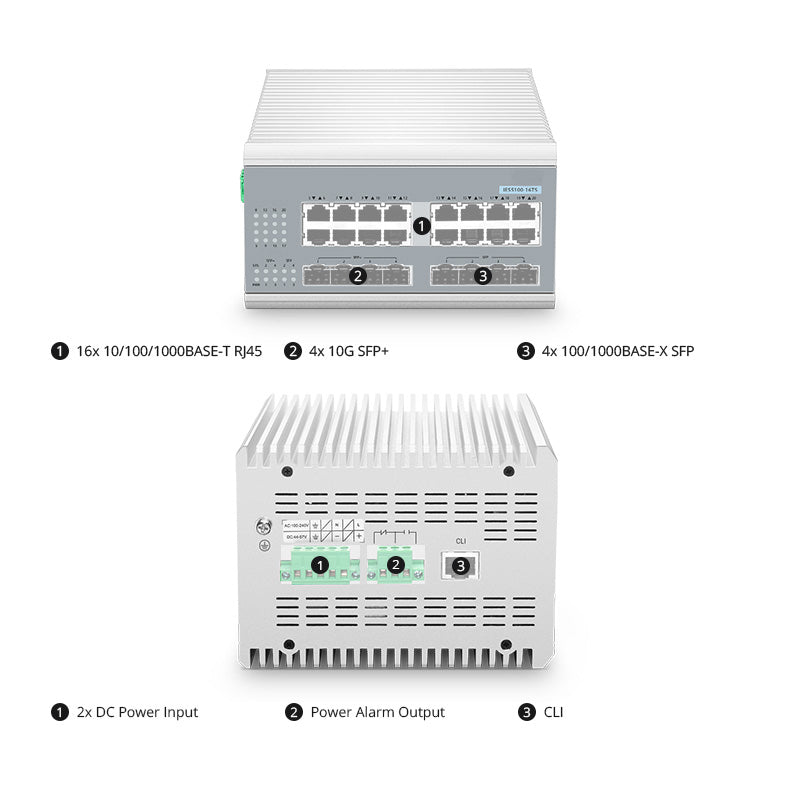

• Ports: 16x 10/100/1000BASE-T RJ45 | 4x 1G SFP, 4x 10G SFP+

• MAC Table Size: 16K

• Switching Capacity: 120Gbps

• Input Voltage: 48-60VDC, 100-240VAC

• Forwarding Rate: 89Mpps

• Max. Power Consumption: 26W

• Flash Memory: 16MB

• Operating Temperature: -40 to 75°C (-40 to 167°F)

• Jumbo Frame: 9,000

• Storage Temperature: -40 to 85°C (-40 to 185°F)

• Packet Buffer: 12Mb

• Operating Humidity: 10-85%(Non‐condensing)

• Stackability: Up to 8 Units

• Management: WEB GUI/SSH/Telnet/SNMP

• Enclosure: IP40 Rated Metal Enclosure

• MTBF: > 800,000 Hours

• Installation: DIN-rail Mount

• Dimensions (HxWxD): 6.69''x5.51''x3.94'' (170x140x100mm)

Product Highlights

• IP40 Metal Enclosure for Harsh Environments and Temperatures from -40 to 75°C

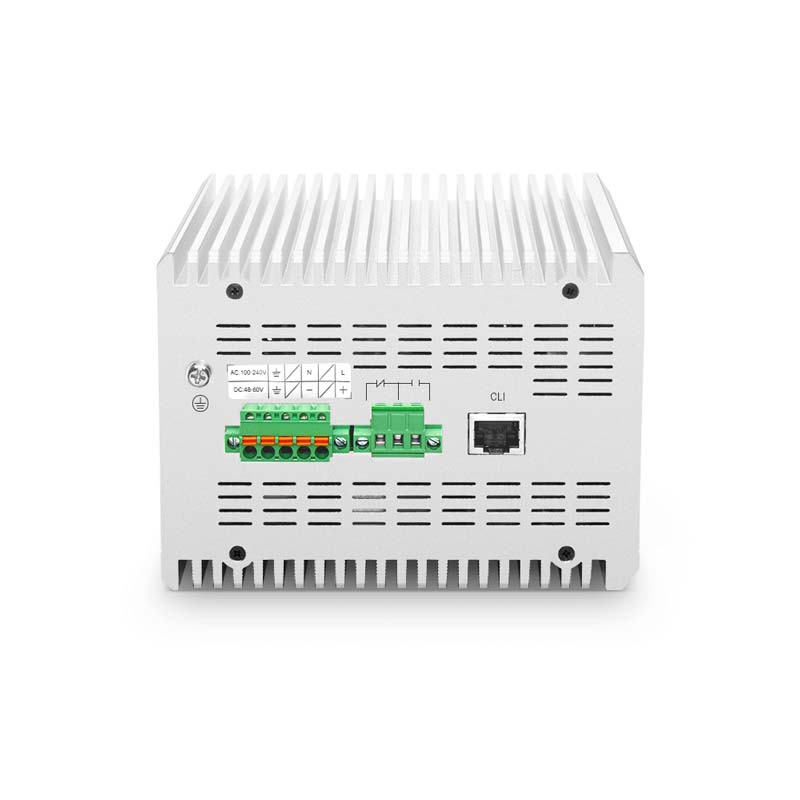

• Supports Both High-voltage AC and Low-voltage DC Inputs

• DIN-rail Mounting for Efficient Use of Cabinet Space

• Support Layer 3 Routing RIP/OSPF/VRRP

• Support CLI/WEB/SSH/Telnet/SNMP for Easy Network Management

Software Spotlights

High Availability and Multi-Service Support

• Support the Spanning Tree Protocols (IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP)
• Support the IPv4 and IPv6 multicast functions
• Support traffic classification of each field of L2/L3/L4 protocol headers
• Support IGMP v1/v2/v3, IGMP snooping, MLD

Error-Free Network Configuration

• Support SNMP (Managed by Zabbix) v1, v2, and v3
• Support STP protocol protection (BPDU Guard)
• Support LACP, ERPS, etc
• Support multiple queuing algorithms such as SP, WRR or SP+WRR
• Support 802.1P/DSCP priority remark
• Support Layer 3 Routing RIP/OSPF/VRRP

Secure and Simplified Access for Users and IoT

• Support WEB GUI, Telnet, SSH
• Support IEEE802.1X RADIUS authentication
• Support IPv4/IPv6 ACL
• Support DHCP snooping
• Support IP source guard
• Support ARP inspection

Connectivity Solutions

Full Gigabit Ethernet Interfaces
FS-IES3110-8TF is available with 16x 1G RJ45 ports and 4x 1G SFP, 4x 10G SFP+ ports to provide secure access for high-speed applications in the industrial space.

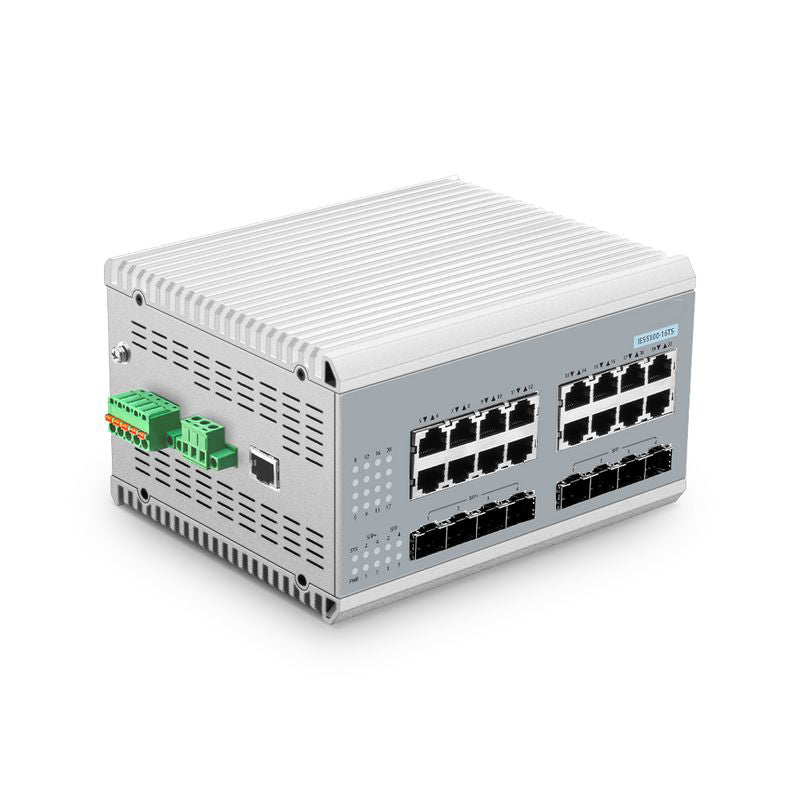

IP40 Aluminum Metal Housing Suitable for Industrial Environments
FS-IES5100-16TS is equipped with rugged IP40 metal enclosure to withstand a high degree of vibration and shock while operating in industrial environments from -40 to 75°C.

Compact Ethernet Industrial Switches Designed for Tight Spaces
The small switch supports DIN-rail mount, making efficient use of cabinet space for simple, flexible, and secure deployments.

OSPF (Open Shortest Path First) Improves Network Stability
OSPF uses advanced routing algorithms and area-based design to dynamically update routes as the network changes, improving network stability and performance.

ERPS (Ethernet Ring Protection Switching) Enables Failover Protection in Sub-50ms
ERPS implements loop blocking and link recovery faster than STP on the main device, and can
effectively add redundancy and up-time protection to any network.

Equipped with Console, Web and SNMP Management Interfaces
With the built-in Web-based management interface, the IES5100-16TS offers an easy-to-use, platform-independent management and configuration facility.
